DTC B240A: DR side antenna (outdoor) open: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

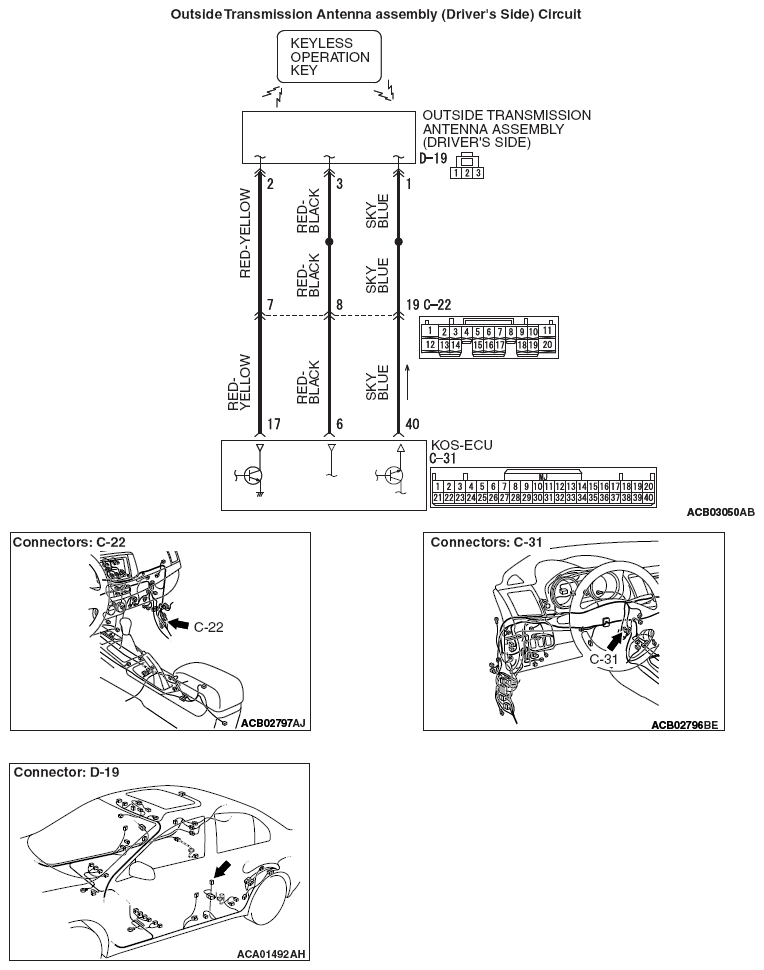

Fig 1: Outside Transmission Antenna Assembly - Circuit Diagram (Driver Side)
G09627816Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
