DTC B2409: STL unit comm. (No response): Notes

CAUTION:

• If the DTC B2409 is set, diagnose the CAN bus lines.
• Whenever the steering lock unit is replaced, ensure that the communication circuit is normal.

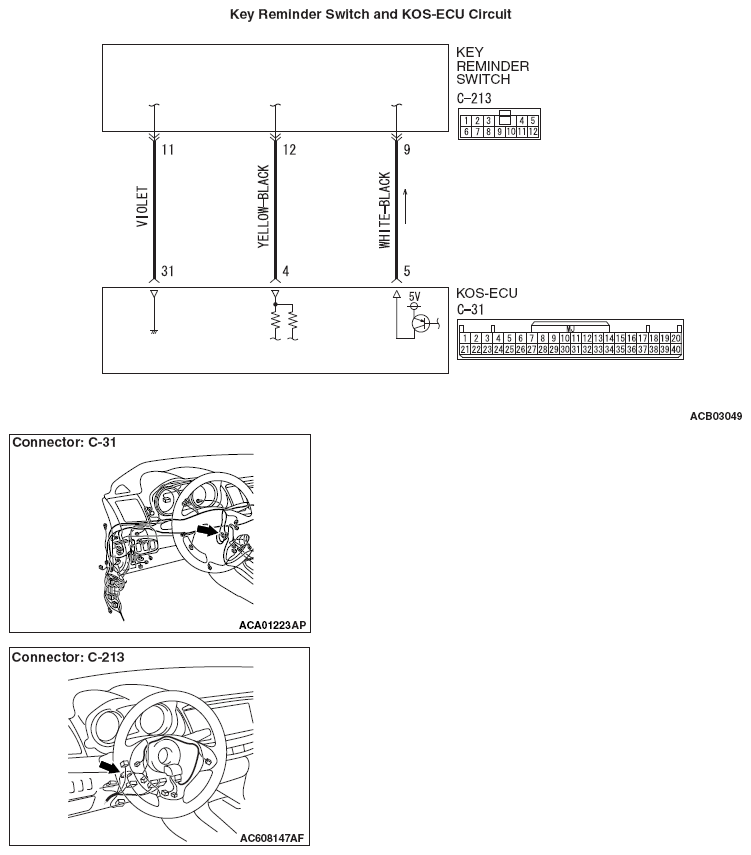

Fig 1: Key Reminder Switch And KOS-ECU - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
