DTC B2352: Antenna fail: Notes

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

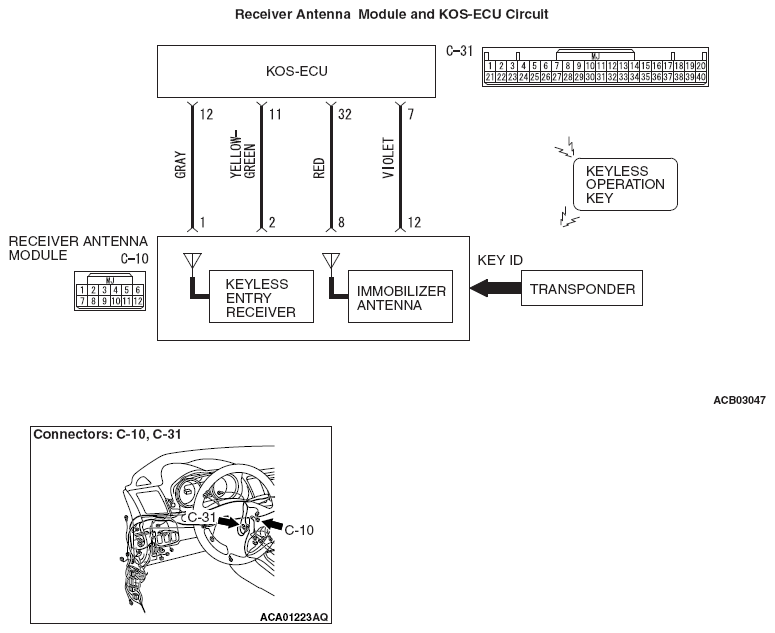

Fig 1: Receiver Antenna Module And KOS-ECU - Circuit Diagram
G09627807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
