INSPECTION PROCEDURE 1: Rear wiper does not work at all: Notes

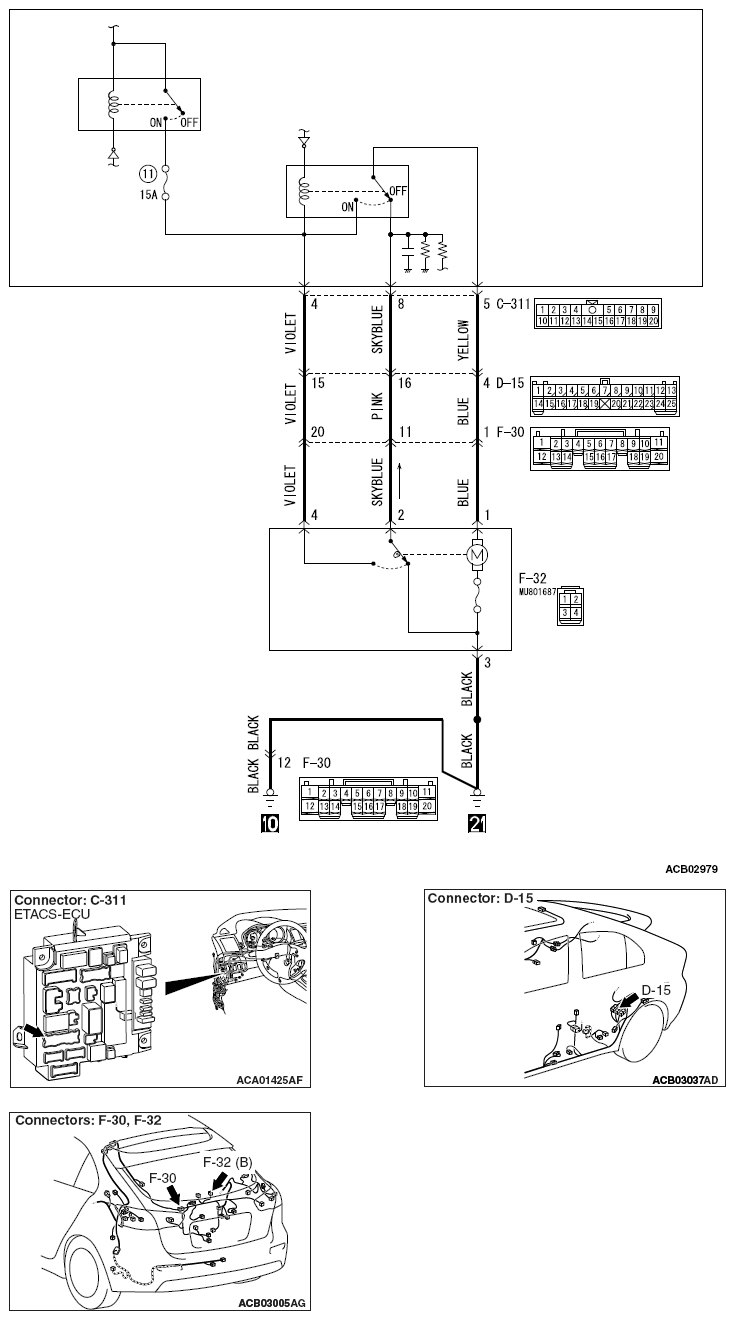

Fig 1: Rear Wiper And Washer Circuit Diagram
G09629047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
