Rear Wiper & Washer - Lancer SPORTBACK
>>
Rear Wiper And Washer
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

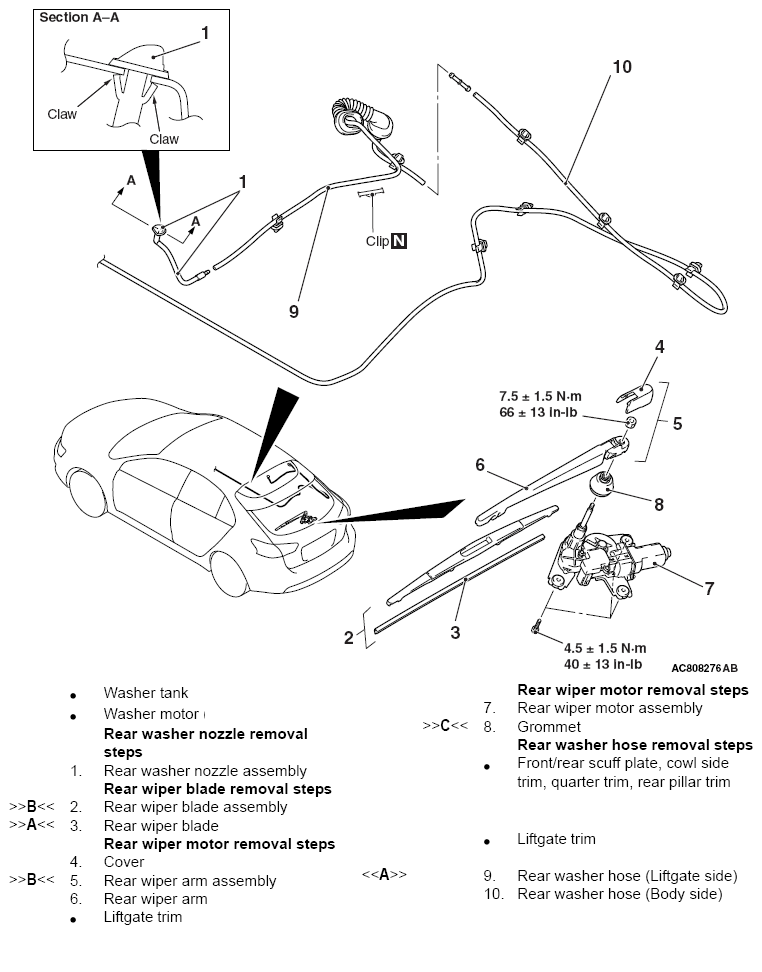

Fig 1: Exploded View Of Rear Wiper And Washer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
