Rear Wiper Motor Stop Position Check

  1. Connect the battery to the rear wiper motor as shown in the illustration.
  2. Disconnect the battery in the middle of the motor rotation and check to see that the motor stops.
  3. Reconnect the battery.
  4. Check to see that the rear wiper motor runs and then stops at the automatic stop position.

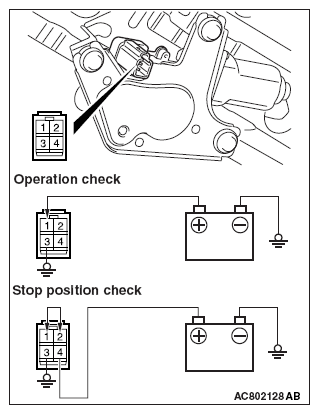

    Fig 1: Inspecting Rear Wiper Motor Operation
    G09629063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
