Inspection Procedure 3: Steering wheel audio remote control switch illumination does not come on: Notes

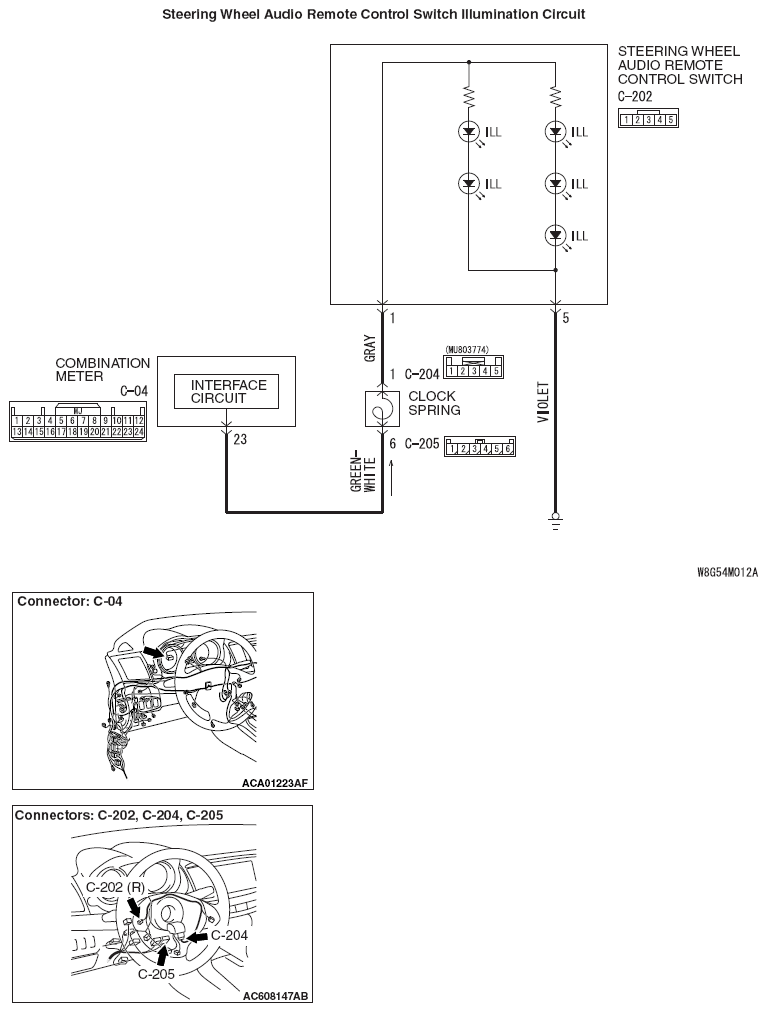

Fig 1: Steering Wheel Audio Remote Control Switch Illumination Circuit Diagram
G09630412Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
