Inspection Procedure 1: Steering wheel audio remote control switch does not function. < Vehicles with radio and CD player >: Notes

CAUTION: Before replacing the radio and CD player, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

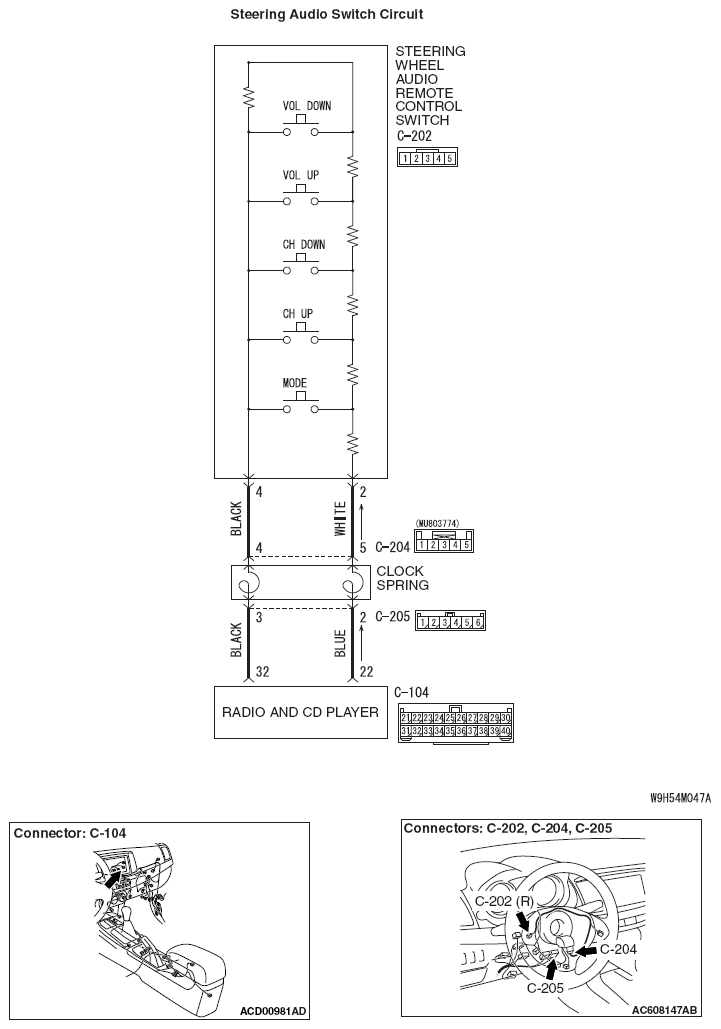

Fig 1: Steering Audio Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
