Column Switch - With Diagnostics - Lancer
>>
Diagnostic Trouble Code Procedures
>>
Removal And Installation
>>
Lighting Switch And Wiper/Washer Switch
Lighting Switch And Wiper/Washer Switch

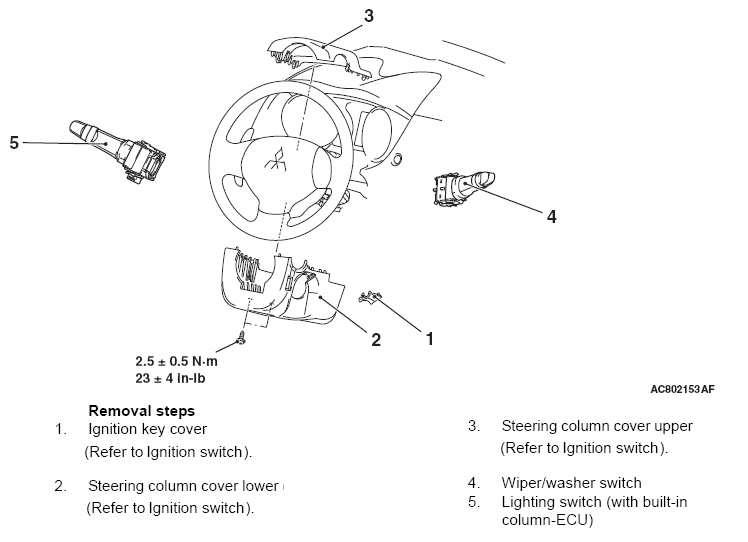

Fig 1: Lighting Switch And Wiper/Washer Switch With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
