Column Switch Body

CAUTION:

To remove the driver airbag module, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > or DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > .
When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION )

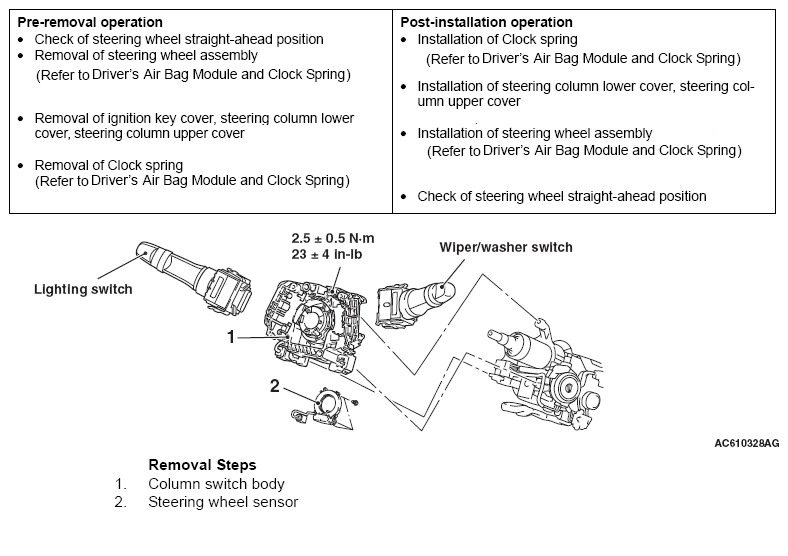

Fig 1: Column Switch Body Removing Sequence With Torque Specifications

G09630196

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
