Inspection Procedure 4: Audio illuminations does not work normally: Notes

CAUTION: Before replacing the radio and CD player, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

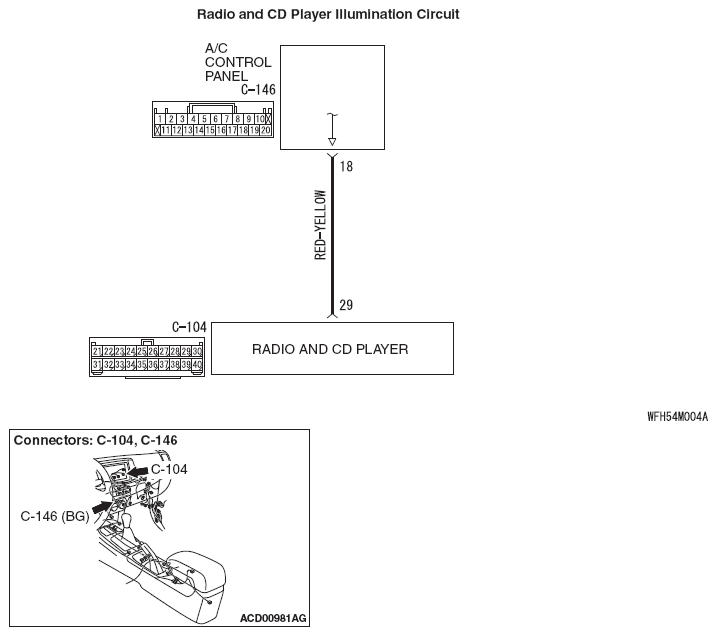

Fig 1: Radio And CD Player Illumination Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
