Inspection Procedure 3: The radio broadcasting can not be received: Notes

CAUTION: Before replacing the radio and CD player, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

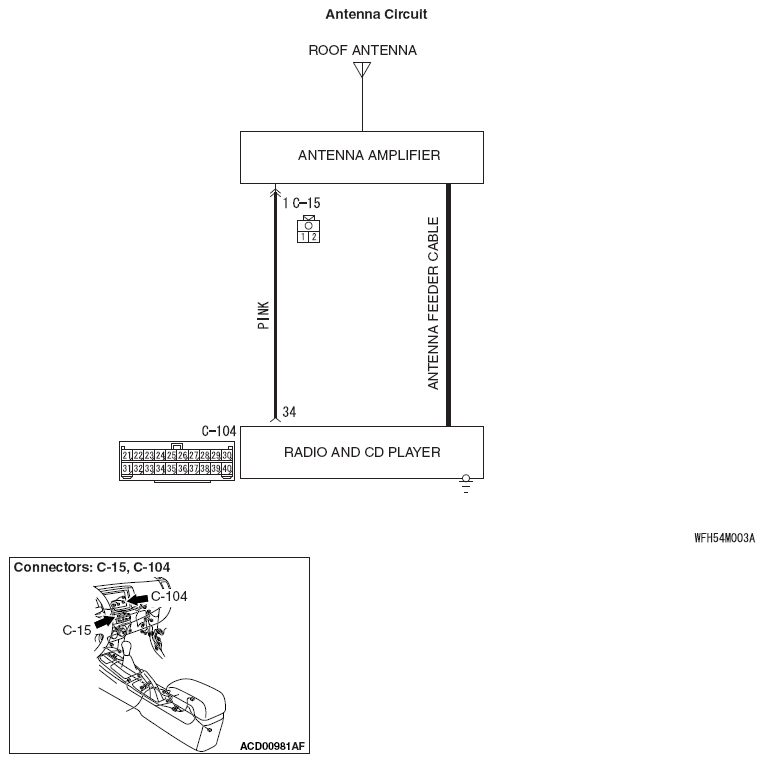

Fig 1: Antenna Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The radio wave may not be received if the vehicle is placed in the area which is exposed to a special electric field. Thus, check that the radio broadcasting can be received using the radio of another vehicle before carrying out diagnosis.
