Inspection Procedure 1: Power of the radio and CD player does not turn ON when the Ignition switch is in the "ACC" position or "ON" Position: Notes

CAUTION: Before replacing the radio and CD player, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

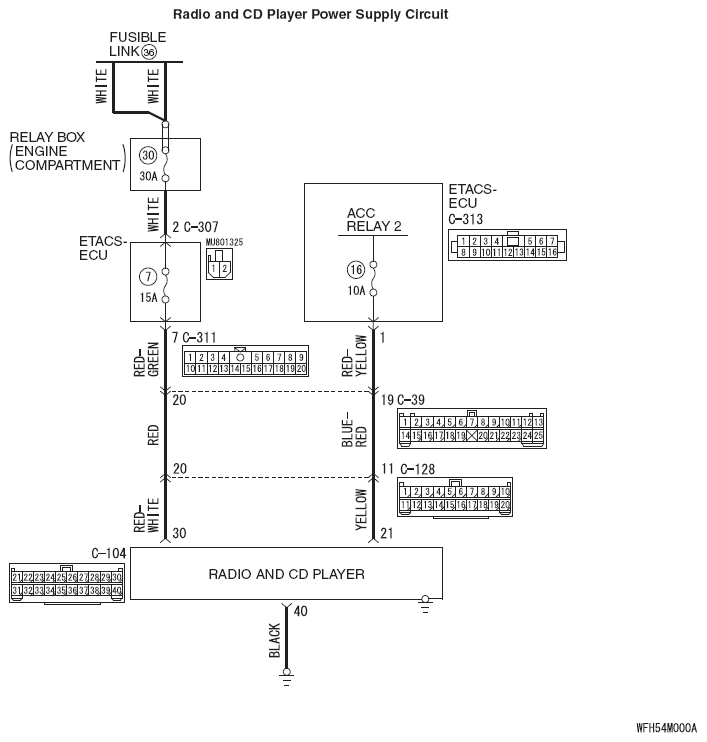

Fig 1: Radio And CD Player Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When the ignition switch is turned to the ACC position for 30 minutes with the ETACS-ECU function, the ACC power is cut-off automatically. For this function, the time to cut-off can be changed with the operation of ETACS system by the scan tool MB991958. (Refer to ON-VEHICLE SERVICE .)

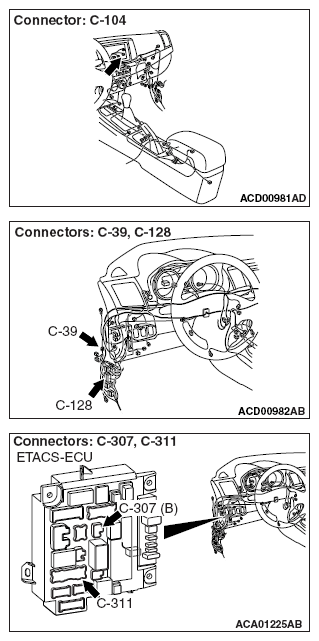

Fig 2: Locating Radio And CD Player Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
