MITSUBISHI Multi-Communication System (MMCS) - Lancer
>>
Removal And Installation
>>
Multivision display
Multivision display

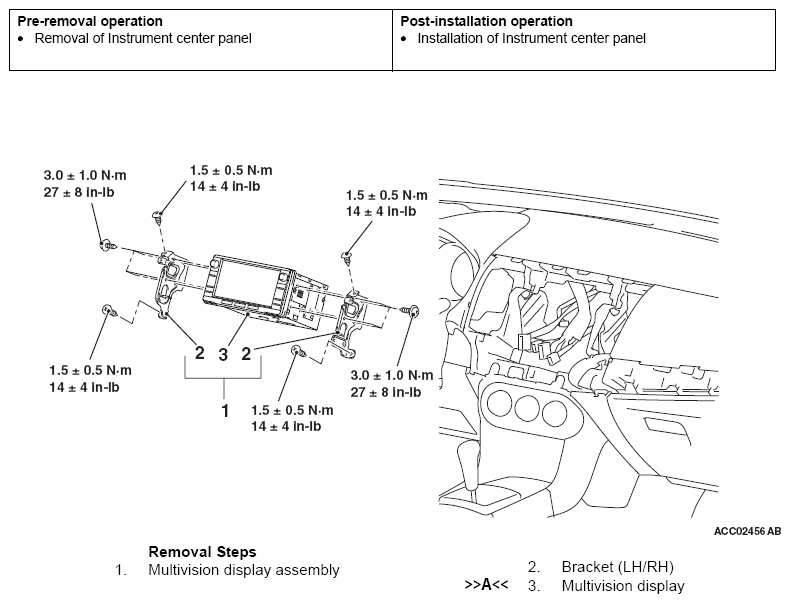

Fig 1: Removing/Installing Multivision Display Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
