MITSUBISHI Multi-Communication System (MMCS) - Lancer
>>
Removal And Installation
>>
GPS antenna
GPS antenna

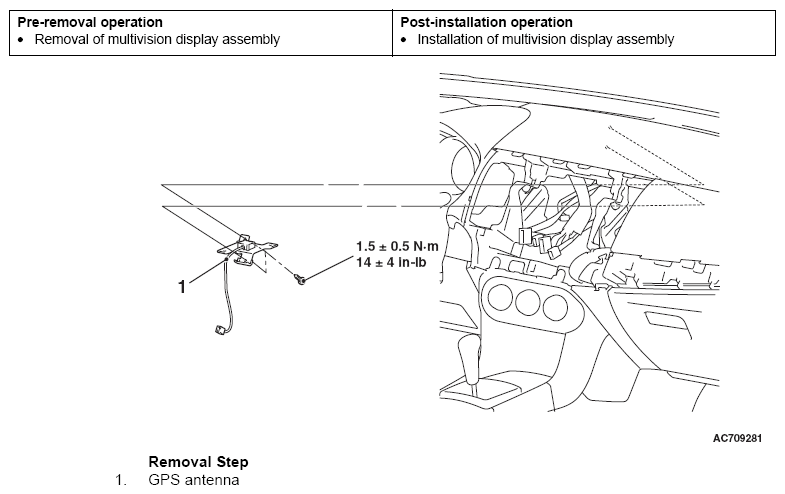

Fig 1: Removing/Installing GPS Antenna Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
