Inspection Procedure 7: Steering wheel voice control switch illumination does not come on: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

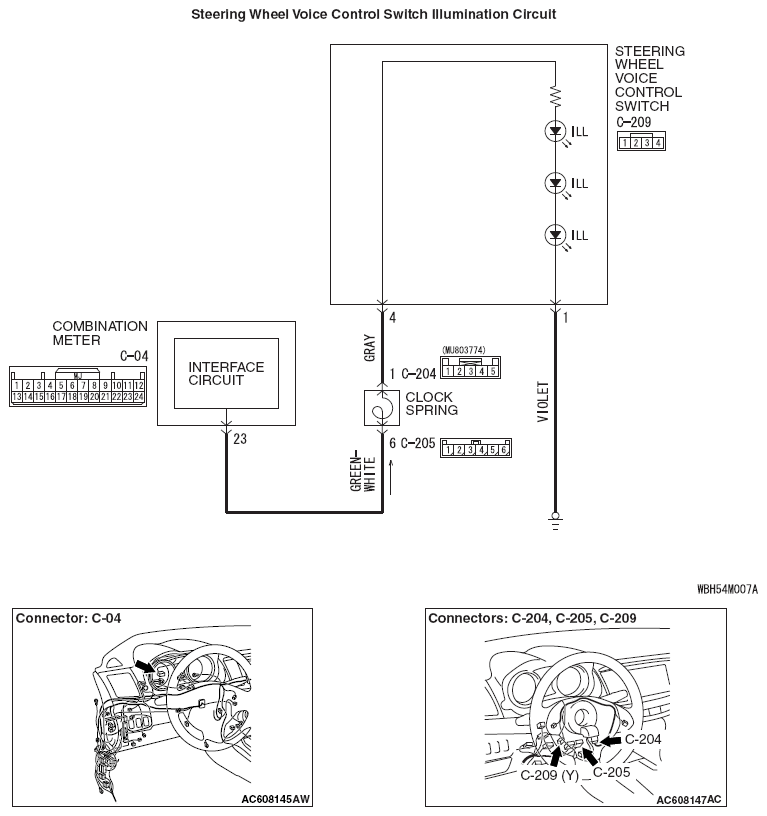

Fig 1: Steering Wheel Voice Control Switch Illumination Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
