Inspection Procedure 5: DIAGNOSIS MODE cannot be made an entry. < Vehicles with radio and CD player >: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

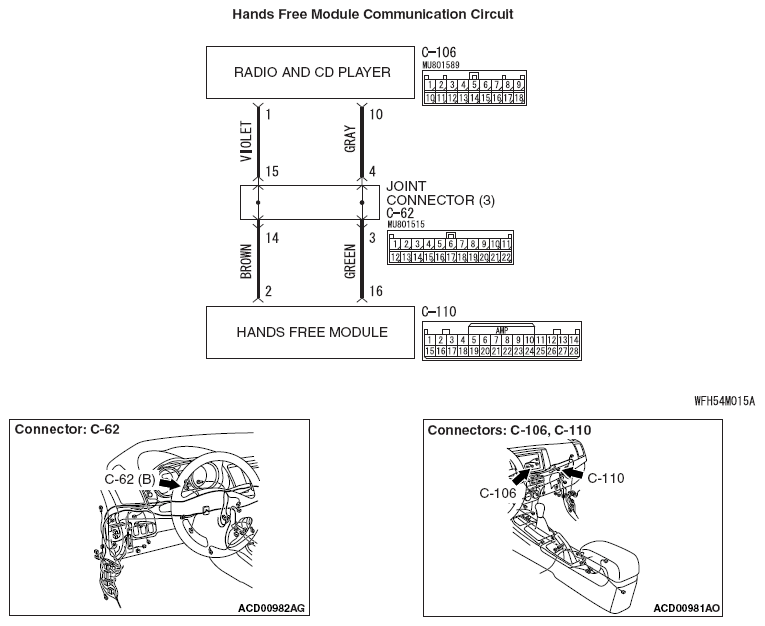

Fig 1: Hands Free Module Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
