Inspection Procedure 4: When the speech switch is pressed, the voice information is not output. < Vehicles with MMCS >: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

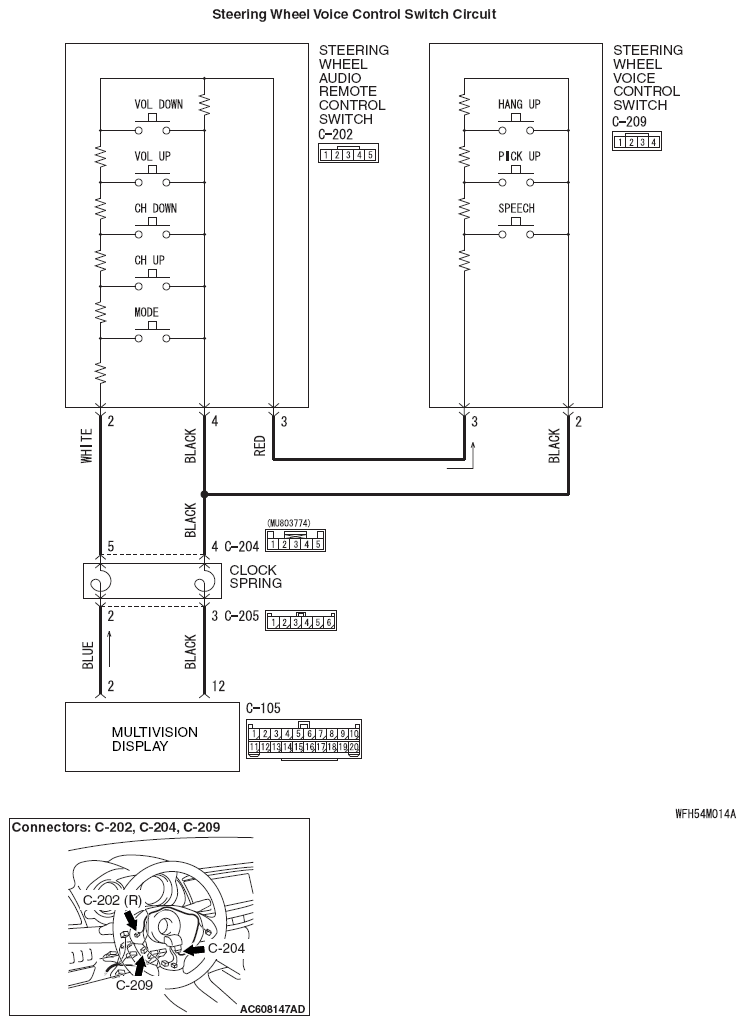

Fig 1: Steering Wheel Voice Control Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
