Inspection Procedure 3: When the speech switch is pressed, the voice information is output, but the voice recognition is not performed. < Vehicles with MMCS >: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

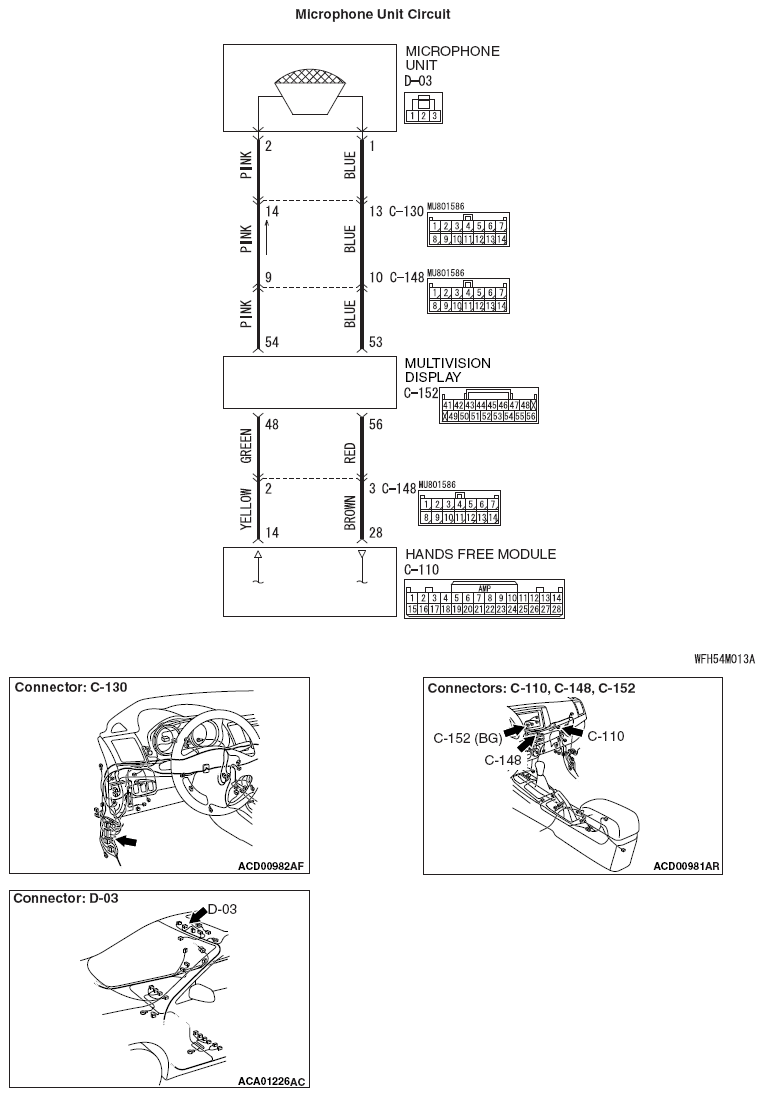

Fig 1: Microphone Unit Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
