Inspection Procedure 1: Check the hands free module power supply circuit: Notes

CAUTION: Before replacing the module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

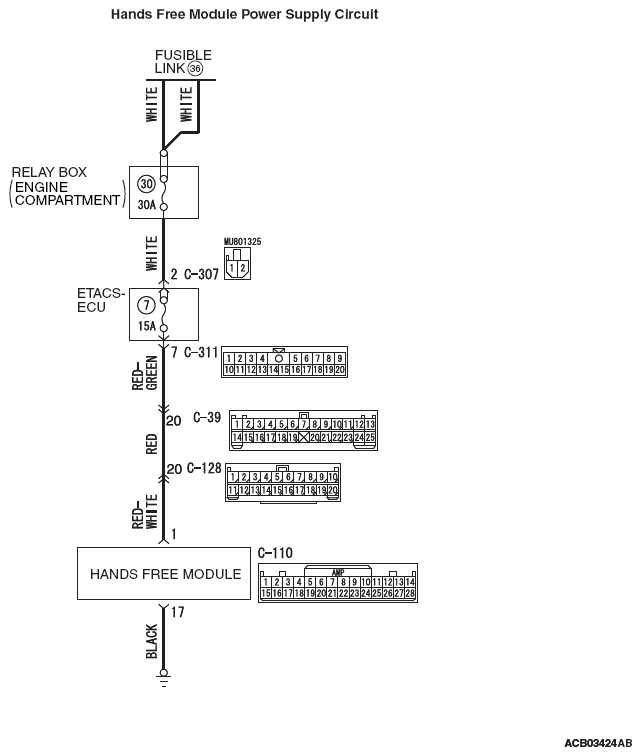

Fig 1: Hands Free Module Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

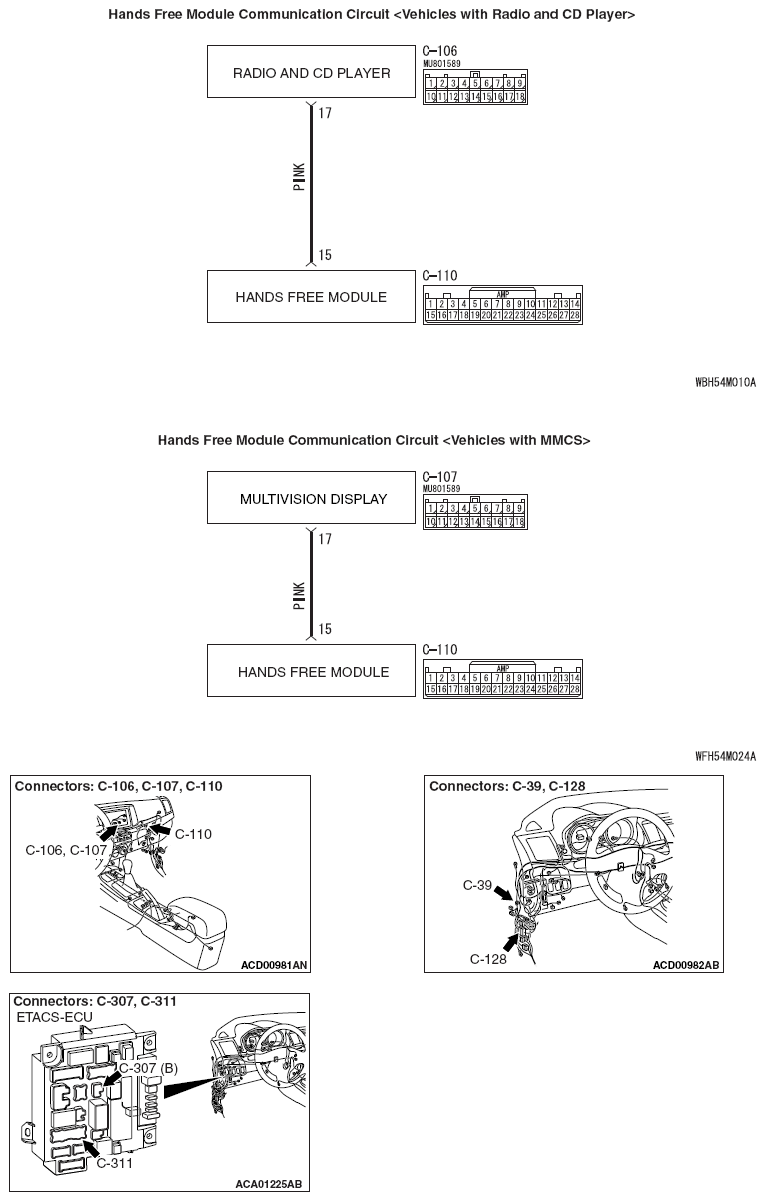

Fig 2: Hands Free Module Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
