DTC 22: Stoplight Switch System: Notes

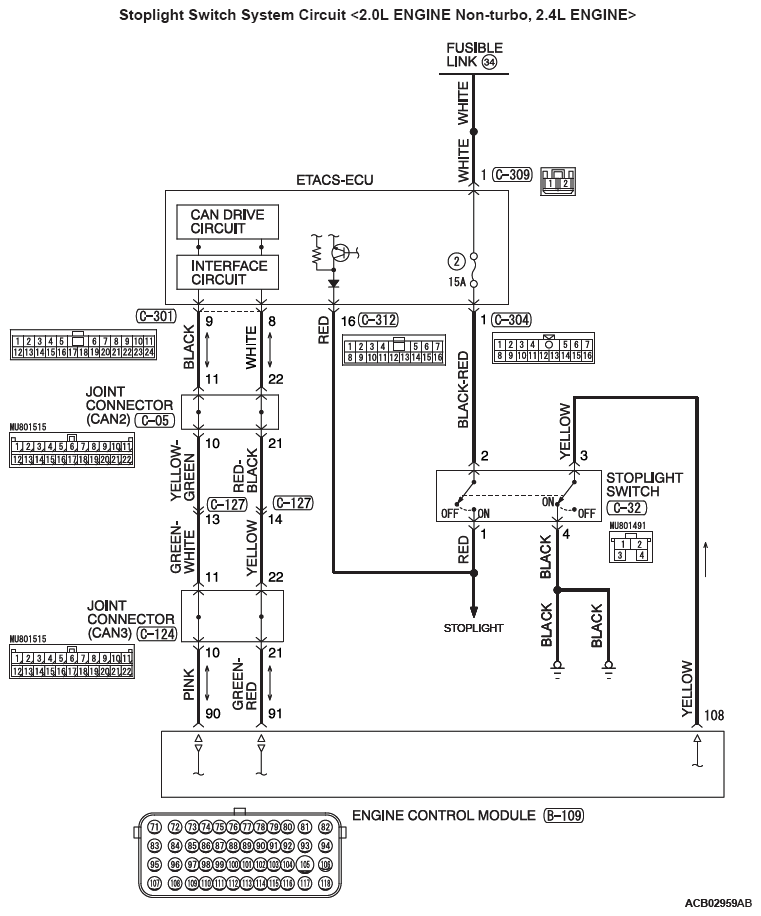

Fig 1: Stoplight Switch System Circuit Diagram - 2.0L Engine Non-Turbo, 2.4L Engine
G08290759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

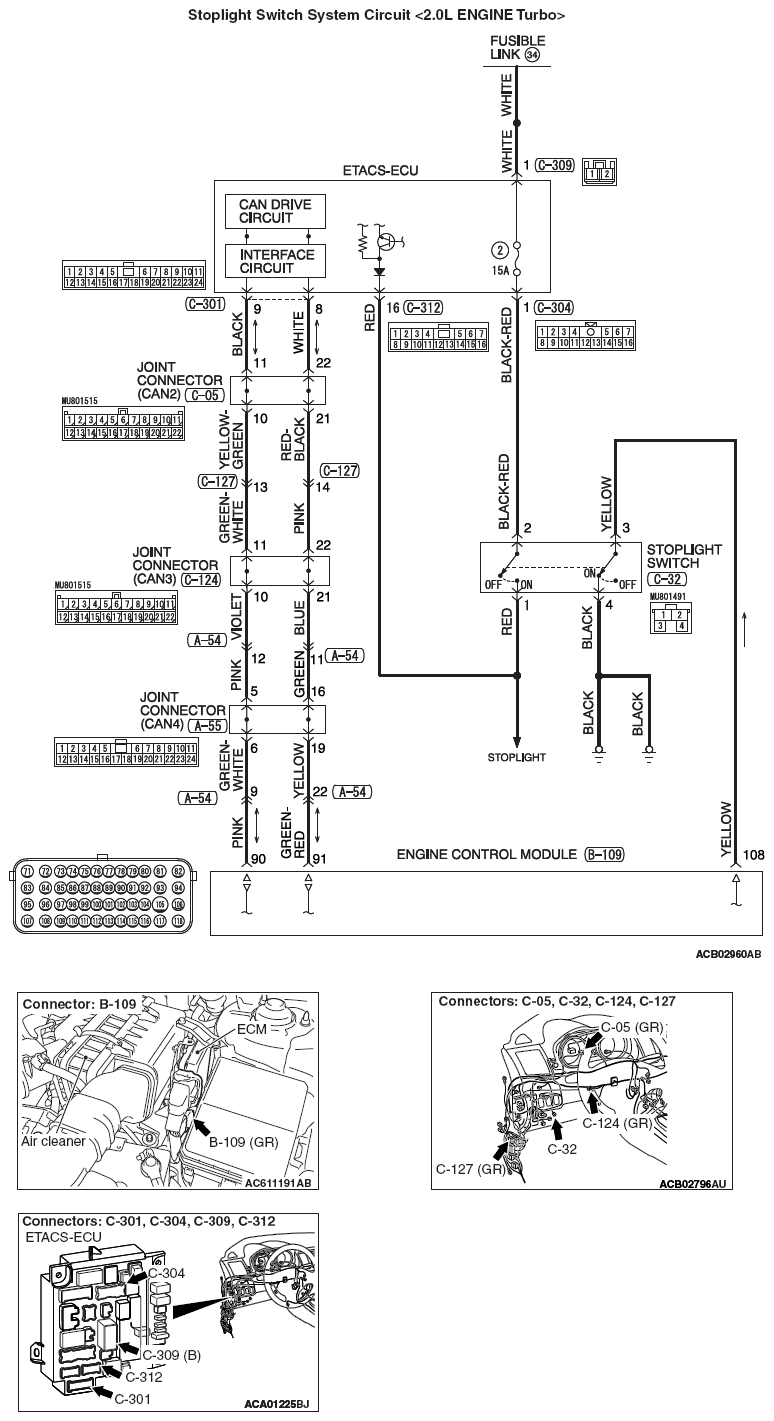

Fig 2: Stoplight Switch System Circuit Diagram - 2.0L Engine Turbo
G09625456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
