How To Read Diagnostic Trouble Codes

1. Turn the ignition switch to the "ON" position while press the "COAST/SET" switch. Then, within one second, release the "COAST/SET" switch and press the "ACC/RES" switch.
   Fig 1: Pressing "COAST/SET" Switch (2.0L Engine Non-Turbo, 2.4L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 2: Pressing "COAST/SET" Switch (2.0L Engine Turbo)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Read a DTC by observing the flash display pattern of the "CRUISE" indicator light in the combination meter.

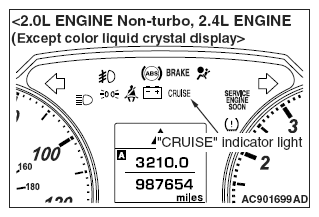

   Fig 3: Display - CRUISE Indicator Light In Combination Meter (2.0L Engine Non-Turbo, 2.4L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 4: Display - CRUISE Indicator Light In Combination Meter (2.4L Engine)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

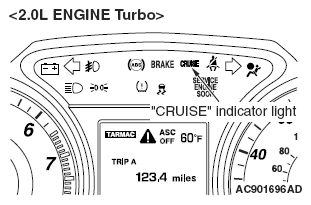

   Fig 5: Display - CRUISE Indicator Light In Combination Meter (2.0L Engine Turbo)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

DIAGNOSTIC RESULT DISPLAY METHOD

When the DTC 23 is set	When no DTC is set

NOTE: Other on-board diagnostic items are also output as voltage waveforms corresponding to diagnostic trouble code numbers.
