System configuration: Lancer

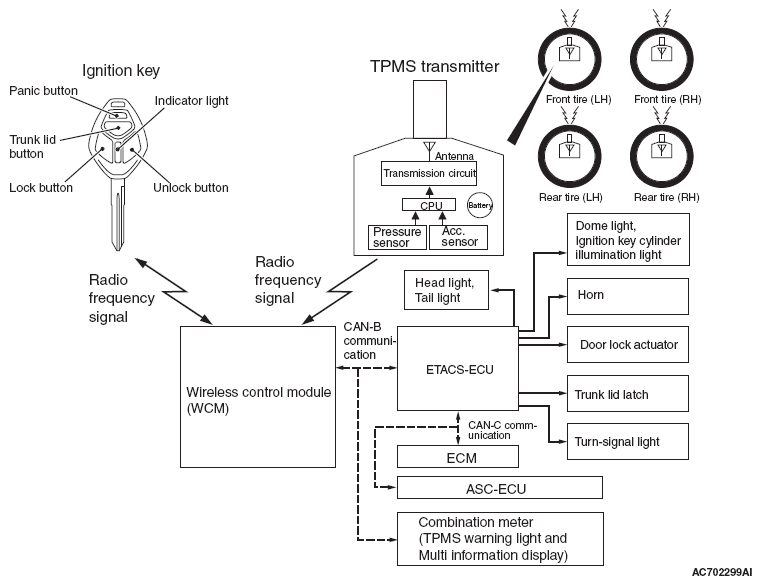

Fig 1: Wireless Control Module - System Diagram (Lancer)

G09627925

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
