DTC U0169: Sunroof LIN timeout < Vehicles with sunroof >: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

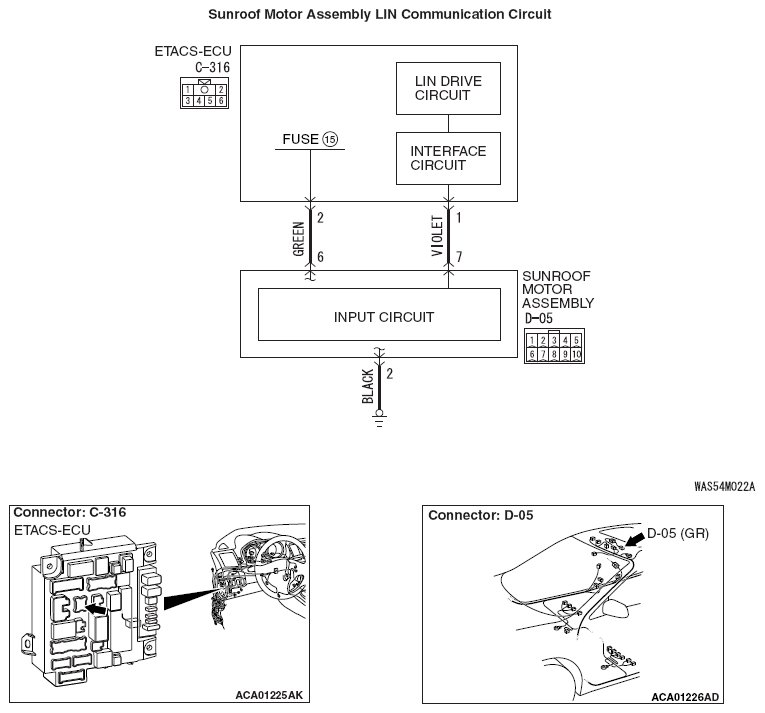

Fig 1: Sunroof Motor Assembly LIN Communication - Circuit Diagram
G09630645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
