Malfunction of ETACS-ECU power supply circuit: Notes

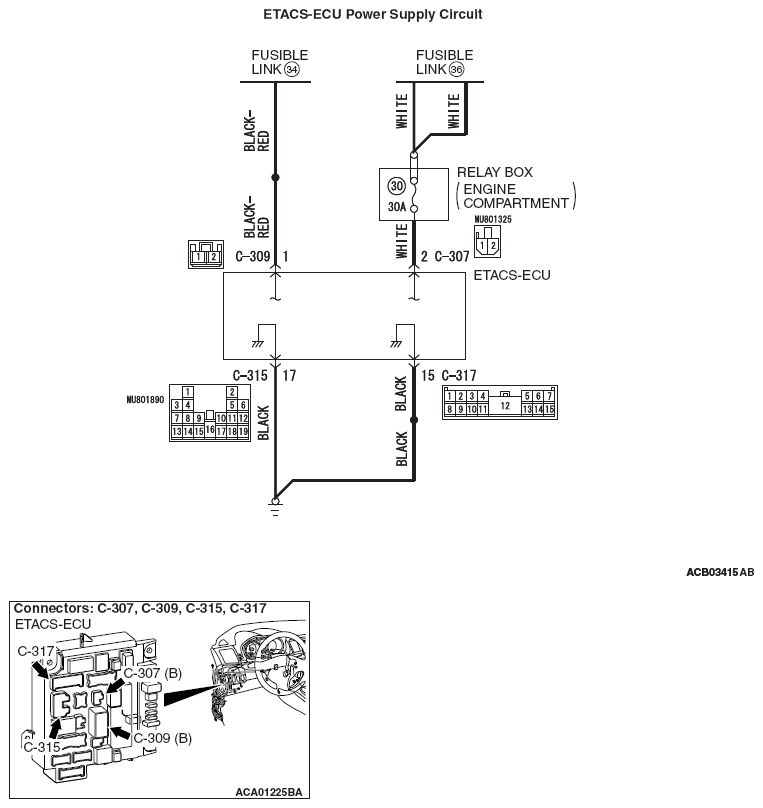

Fig 1: ETACS-ECU Power Supply - Circuit Diagram

G09630568

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
