Inspection Procedure 9: ETACS-ECU does not receive any signal from the trunk lid actuator and switch. < LANCER >: Notes

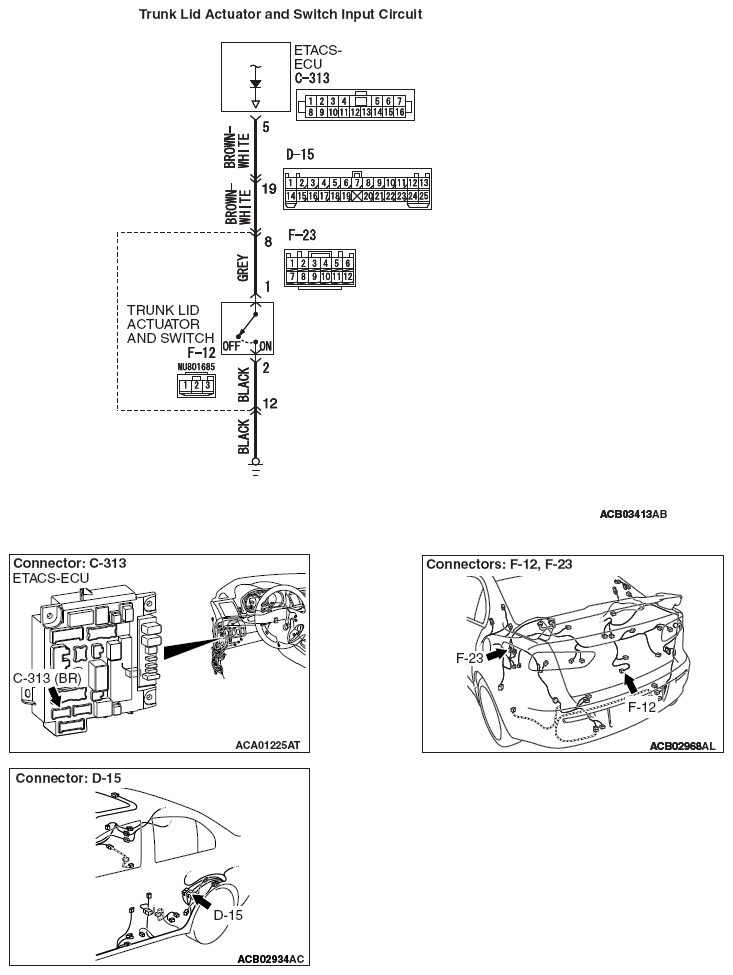

Fig 1: Trunk Lid Actuator And Switch Input - Circuit Diagram
G09630587Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
