Inspection Procedure 12: ETACS-ECU does not receive any signal from the hood latch switch: Notes

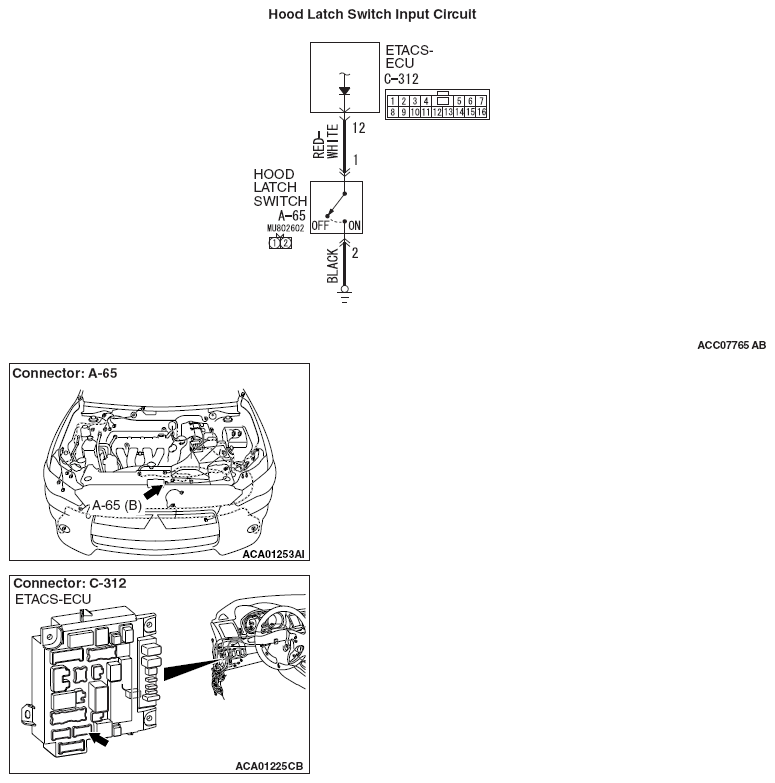

Fig 1: Hood Latch Switch Input - Circuit Diagram

G09630593

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
