DTC B2353: Ignition power supply (low input); DTC B2354: Ignition power supply (high input): Notes

CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

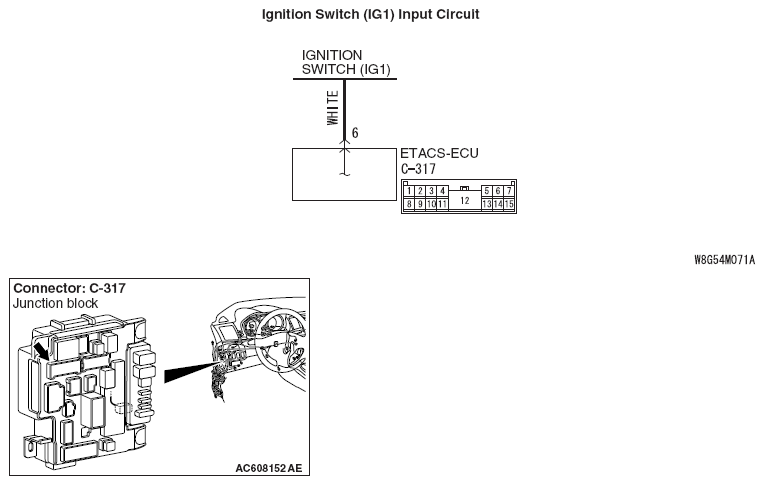

Fig 1: Ignition Switch (IG1) Input - Circuit Diagram
G09630566Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
