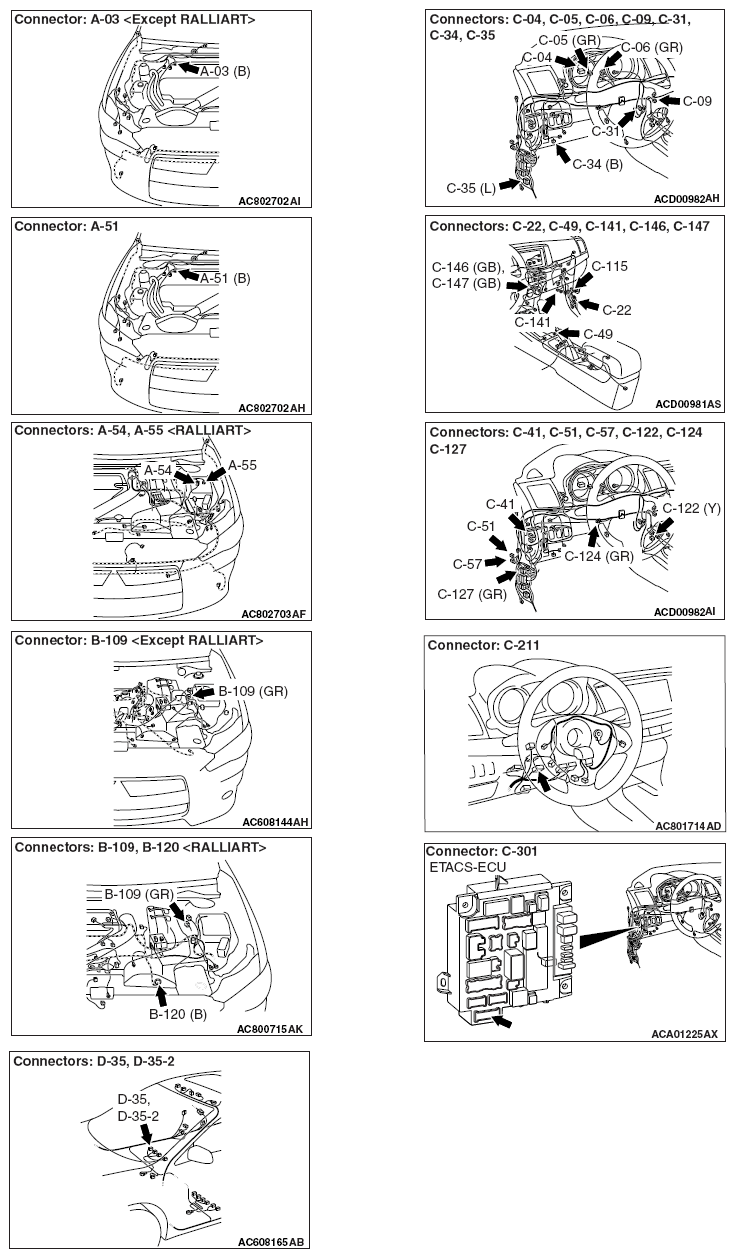

| A-03 |
ABS-ECU < Vehicles without ASC > |
| A-51 |
ASC-ECU < Vehicles with ASC > |
| A-54 |
Intermediate connector (Front wiring harness and control wiring harness combination) < RALLIART > |
| A-55 |
Joint connector (CAN4) < RALLIART > |
| B-109 |
Engine control module (ECM) |
| B-120 |
Transaxle assembly < RALLIART > |
| C-04 |
Combination meter |
| C-05 |
Joint connector (CAN2) |
| C-06 |
Joint connector (CAN1) |
| C-09 |
Wireless control module (WCM) < Vehicles with WCM > |
| C-22 |
Intermediate connector (Instrument panel wiring harness and floor wiring harness combination) |
| C-31 |
KOS-ECU < Vehicles with KOS > |
| C-34 |
Data link connector |
| C-35 |
Intermediate connector (Instrument panel wiring harness and floor wiring harness combination) |
| C-41 |
Transaxle control module (TCM) < CVT > |
| C-49 |
Shift lever < RALLIART > |
| C-51 |
AWC-ECU < RALLIART > |
| C-57 |
AWD-ECU < Electric controlled AWD > |
| C-122 |
SRS-ECU |
| C-124 |
Joint connector (CAN3) |
| C-127 |
Intermediate connector (Instrument panel wiring harness and front wiring harness combination) |
| C-141 |
Electric power steering-ECU < Vehicles with electric power steering > |
| C-146 |
A/C control panel < vehicles with A/C > |
| C-147 |
Heater control panel < vehicles without A/C > |
| C-211 |
Steering wheel sensor |
| C-301 |
ETACS-ECU |
| D-35 |
Front seat assembly (RH) |
| D-35-2 |
Occupant classification-ECU |
