Overall Configuration Diagram (Lancer (Turbo))

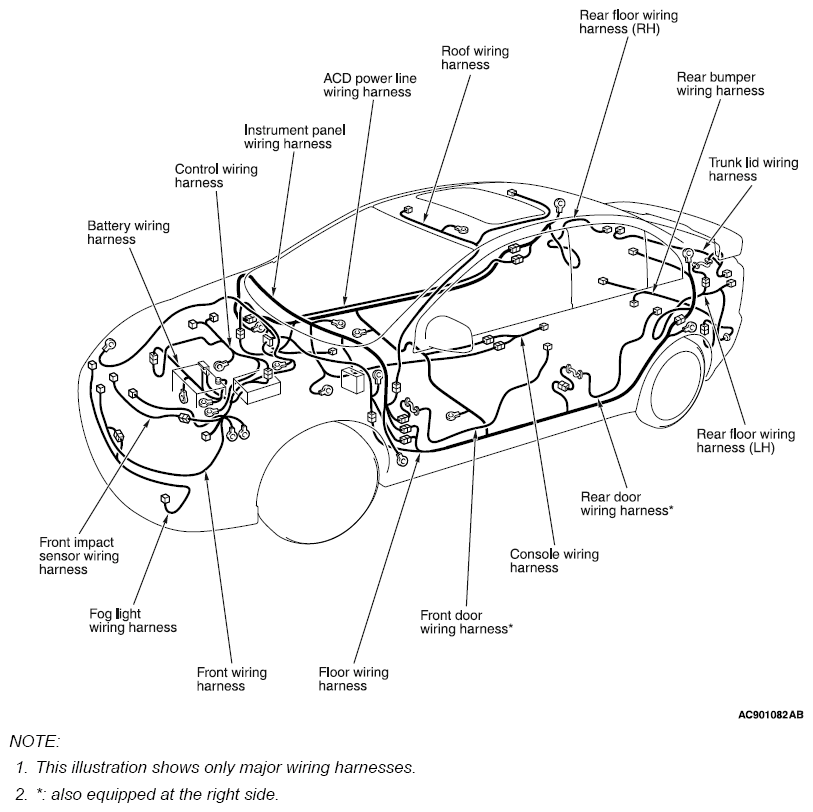

Fig 1: Wiring Harness Configuration Diagram - Lancer (Turbo)
G09620002Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
