Overall Configuration Diagram (Lancer (Non-Turbo))

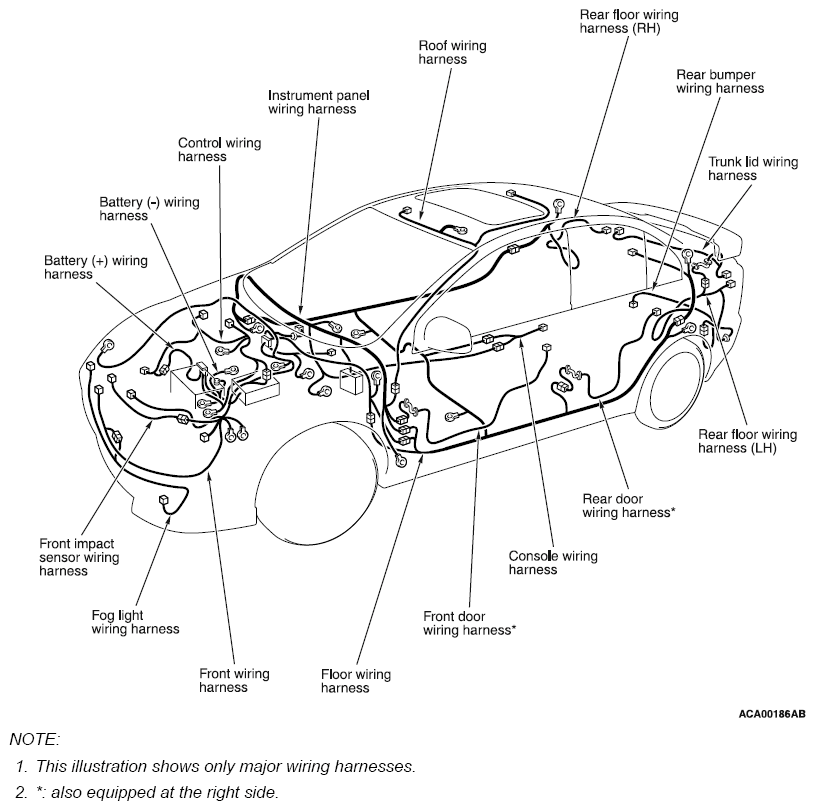

Fig 1: Wiring Harness Configuration Diagram - Lancer (Non-Turbo)

G09620001

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
