Engine Compartment (Turbo)

Fig 1: Engine Compartment Connectors Location (Turbo; 1 Of 2)
G09620007Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

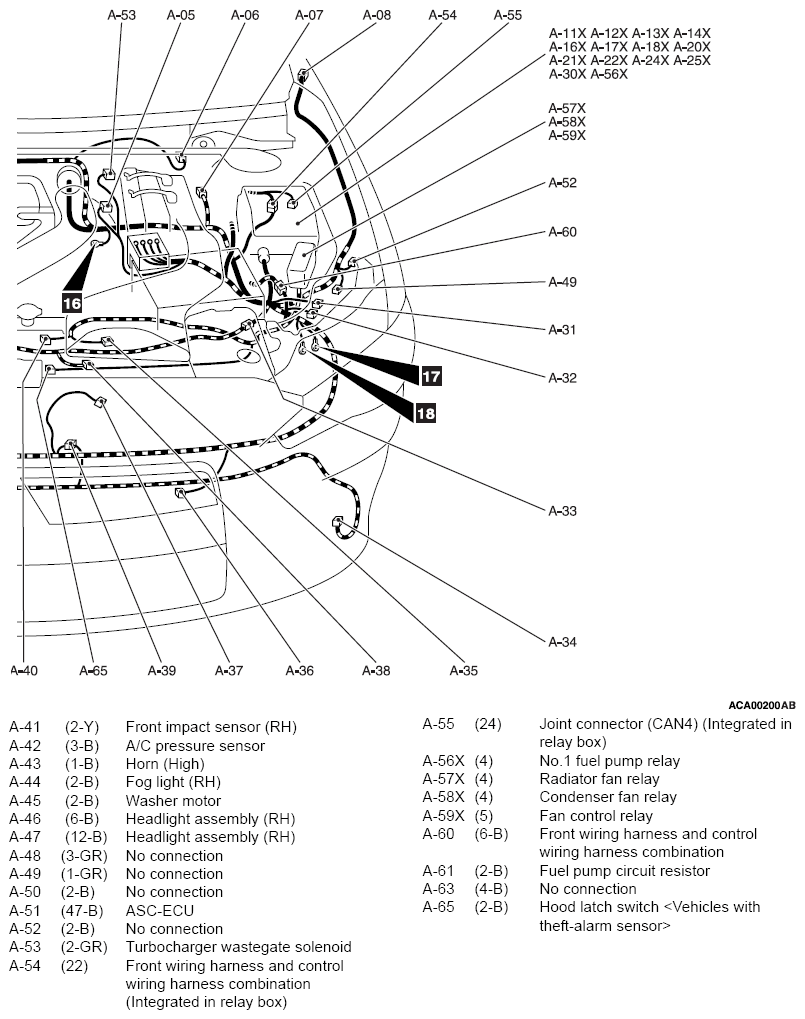

Fig 2: Engine Compartment Connectors Location (Turbo; 2 Of 2)
G09620008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
