Engine Compartment (Non-Turbo)

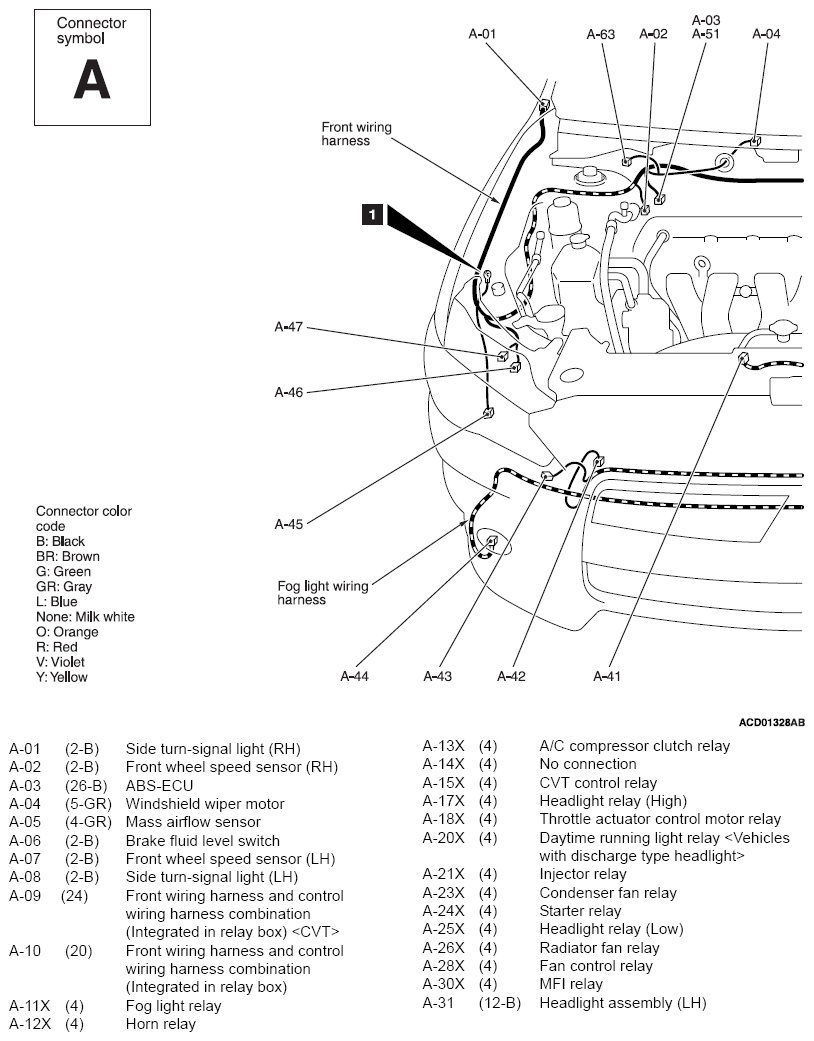

Fig 1: Engine Compartment Connectors Location (Non-Turbo; 1 Of 2)
G09620005Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

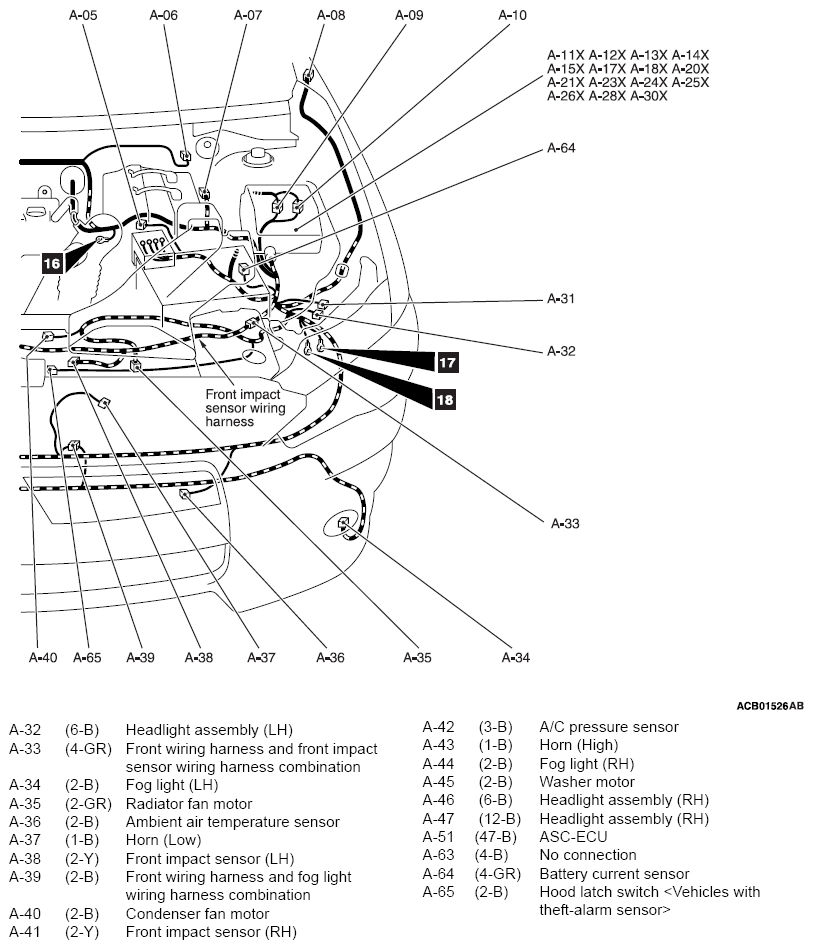

Fig 2: Engine Compartment Connectors Location (Non-Turbo; 2 Of 2)
G09620006Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
