Wiring Harness Routing - Lancer & Lancer SPORTBACK: Door

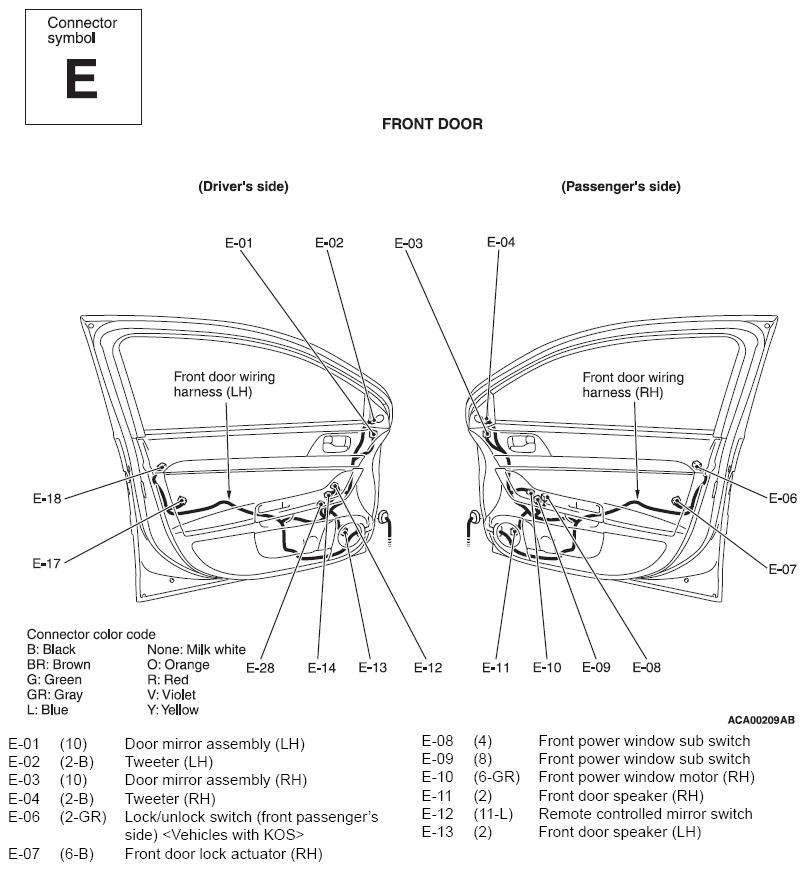

Fig 1: Front Door Connectors Locations
G09620027Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

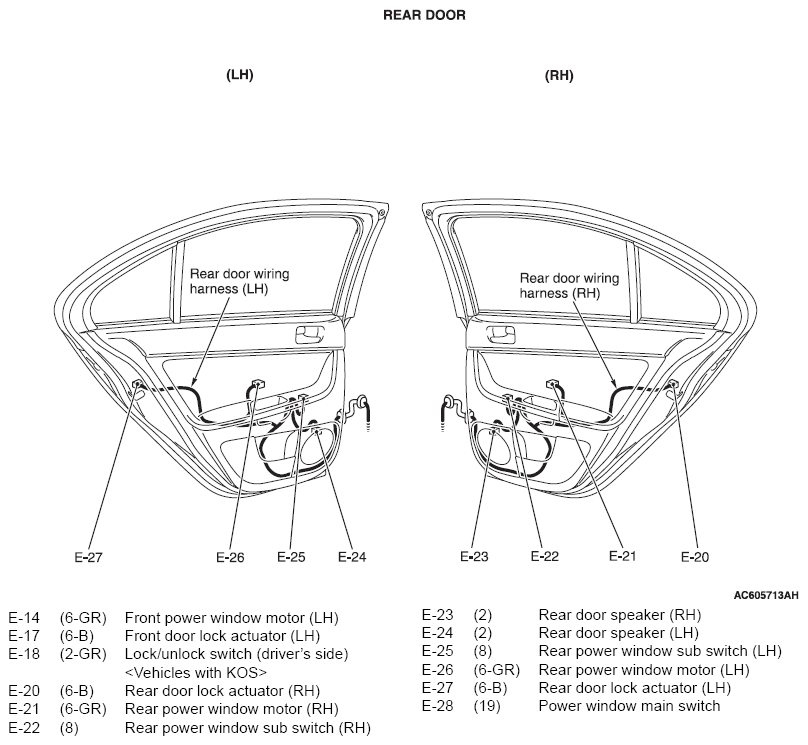

Fig 2: Rear Door Connectors Location
G09620028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
