Turn-Signal Light And Hazard Warning Light < Lancer >

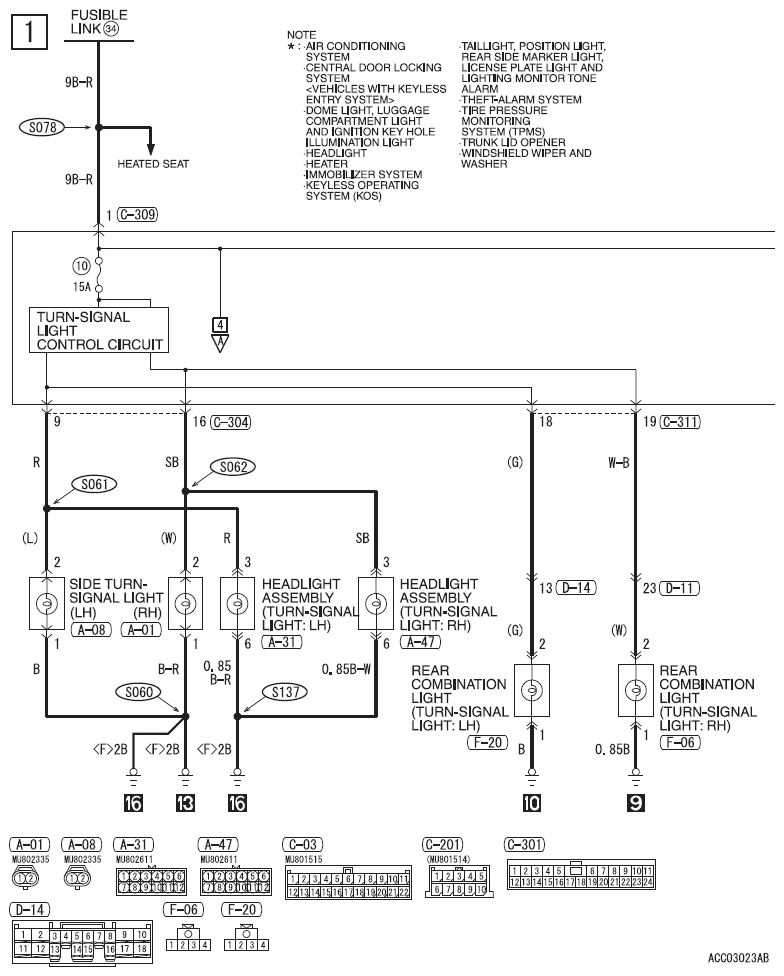

Fig 1: Turn-Signal Light And Hazard Warning Light (Lancer) - Circuit Diagram (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

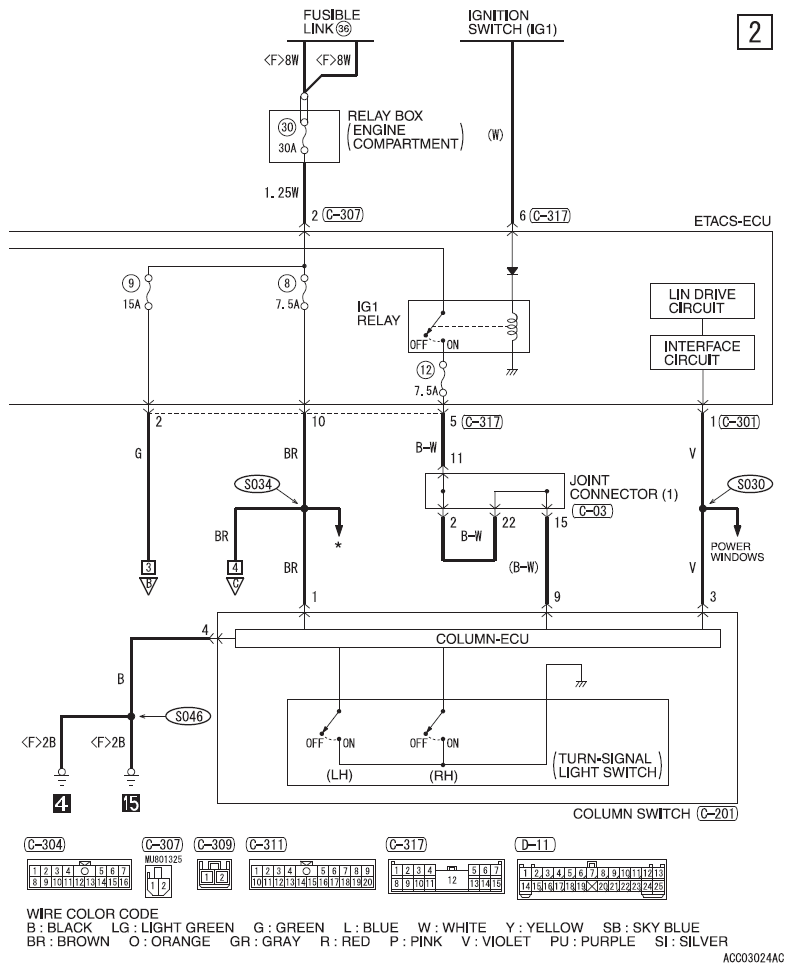

Fig 2: Turn-Signal Light And Hazard Warning Light (Lancer) - Circuit Diagram (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

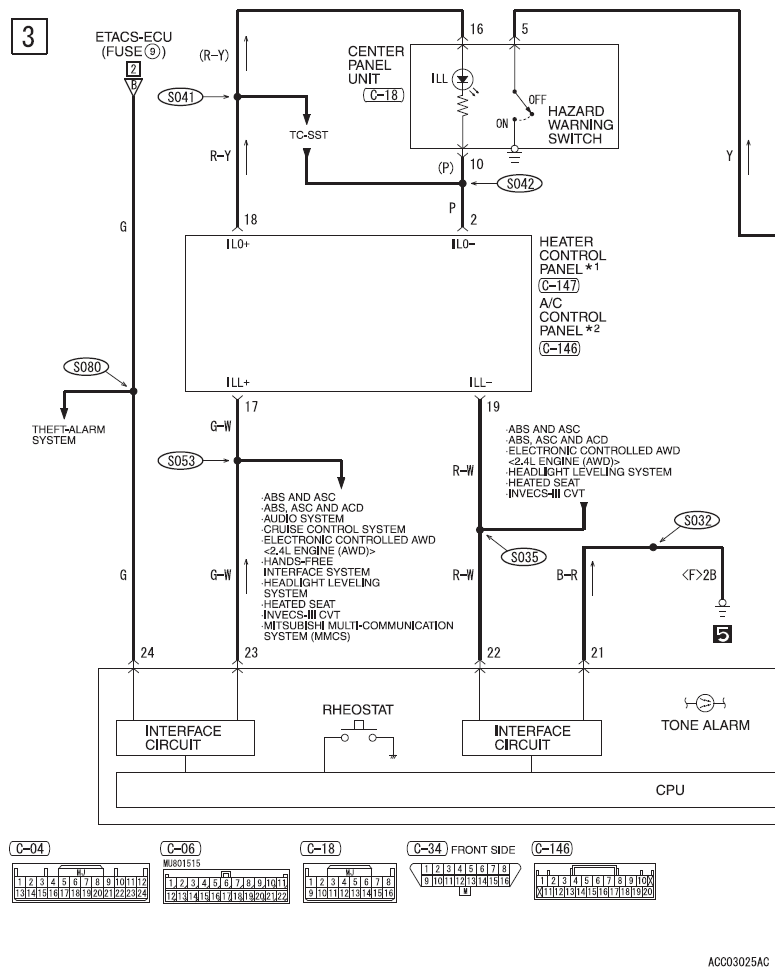

Fig 3: Turn-Signal Light And Hazard Warning Light (Lancer) - Circuit Diagram (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

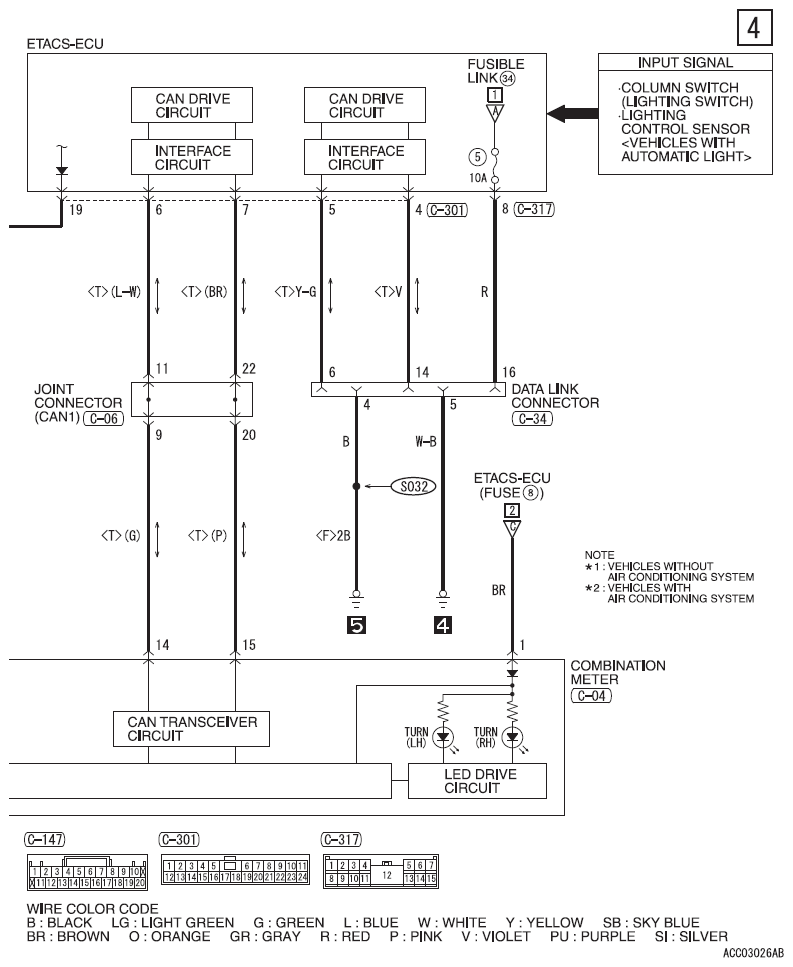

Fig 4: Turn-Signal Light And Hazard Warning Light (Lancer) - Circuit Diagram (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
