Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm < Lancer SPORTBACK >

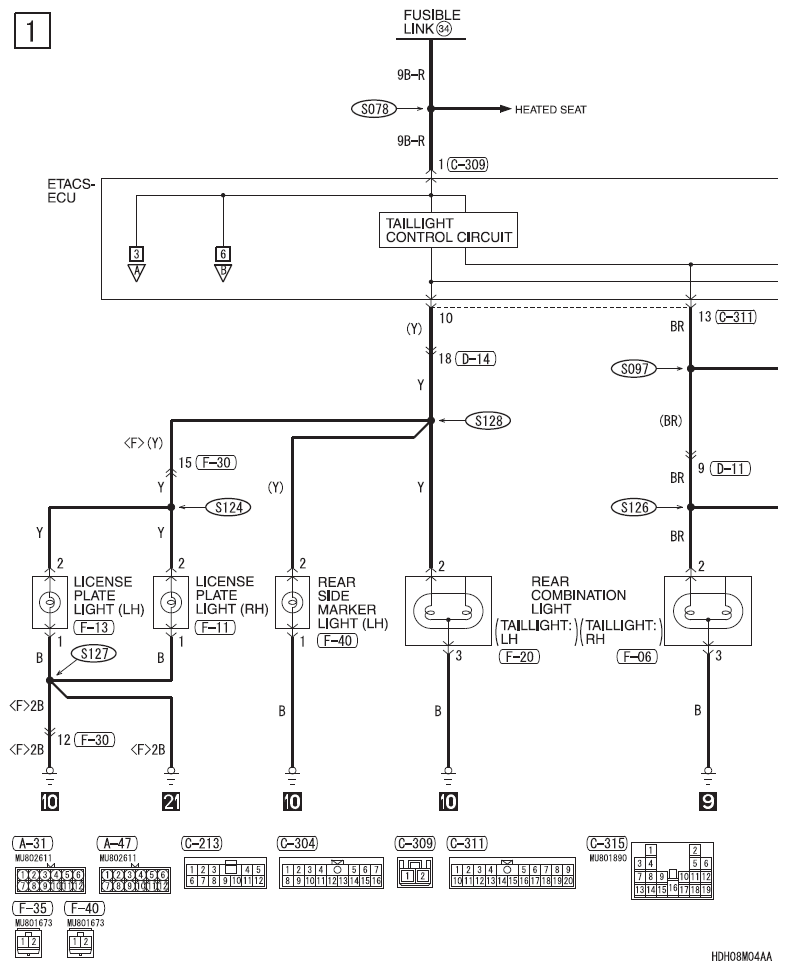

Fig 1: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (1 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

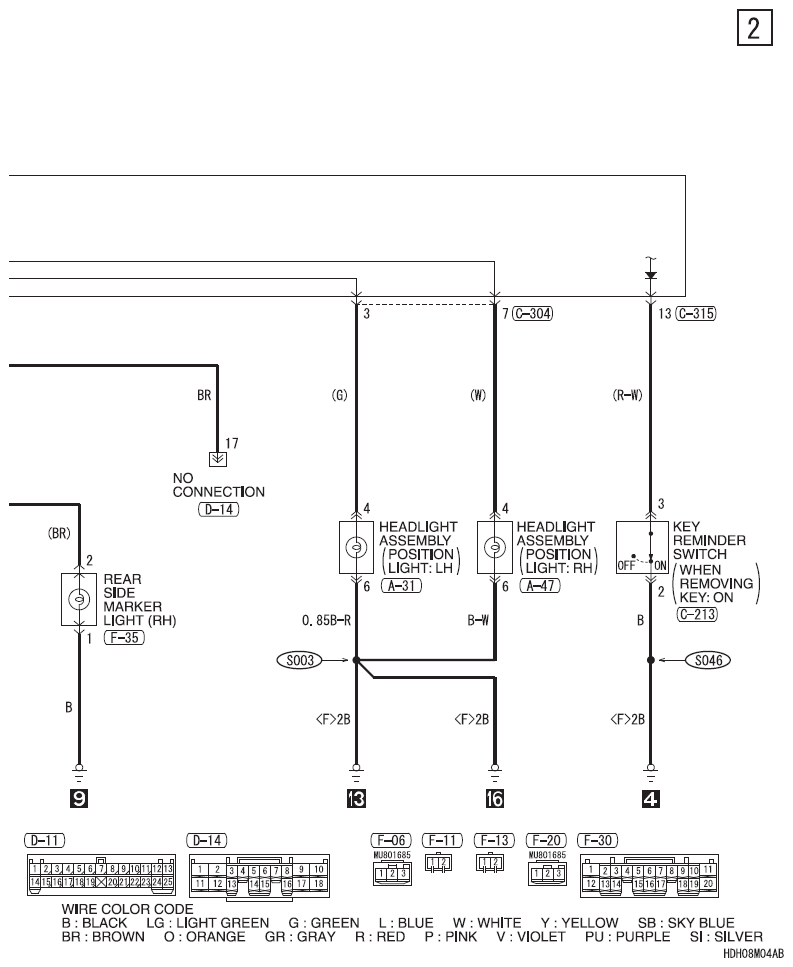

Fig 2: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (2 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

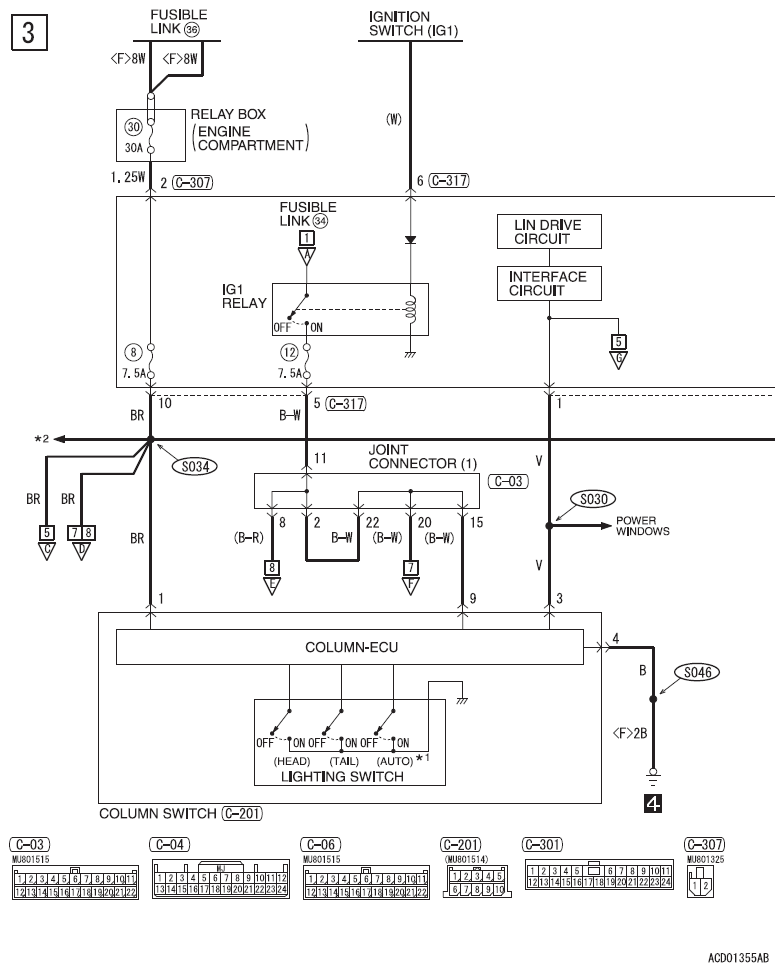

Fig 3: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (3 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

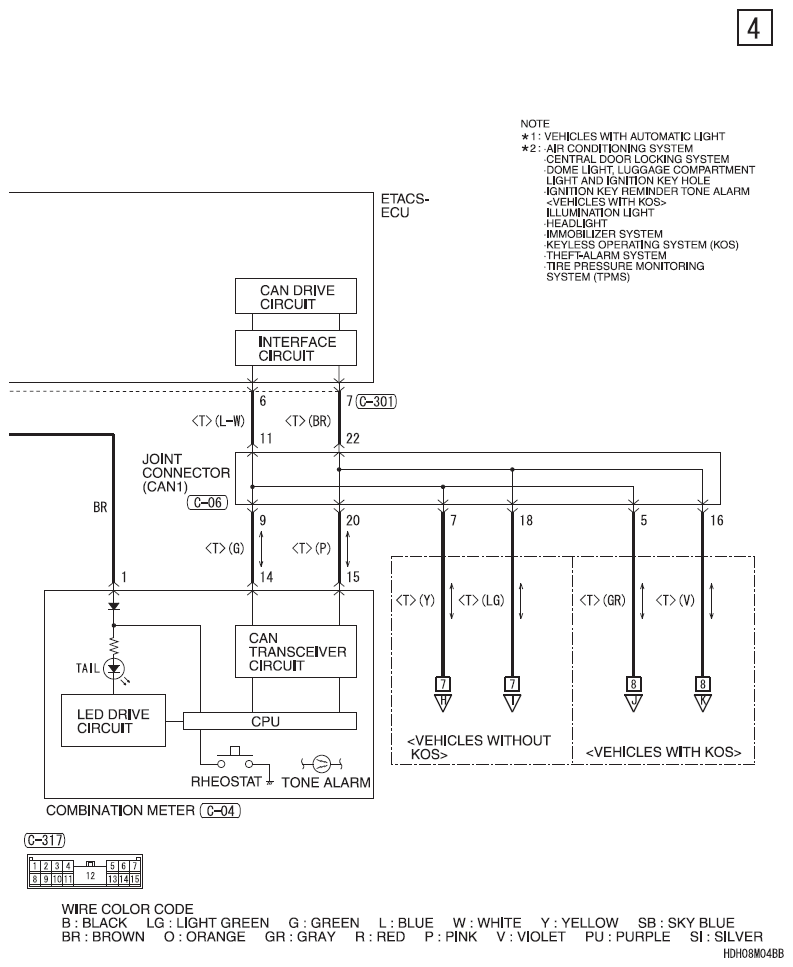

Fig 4: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (4 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

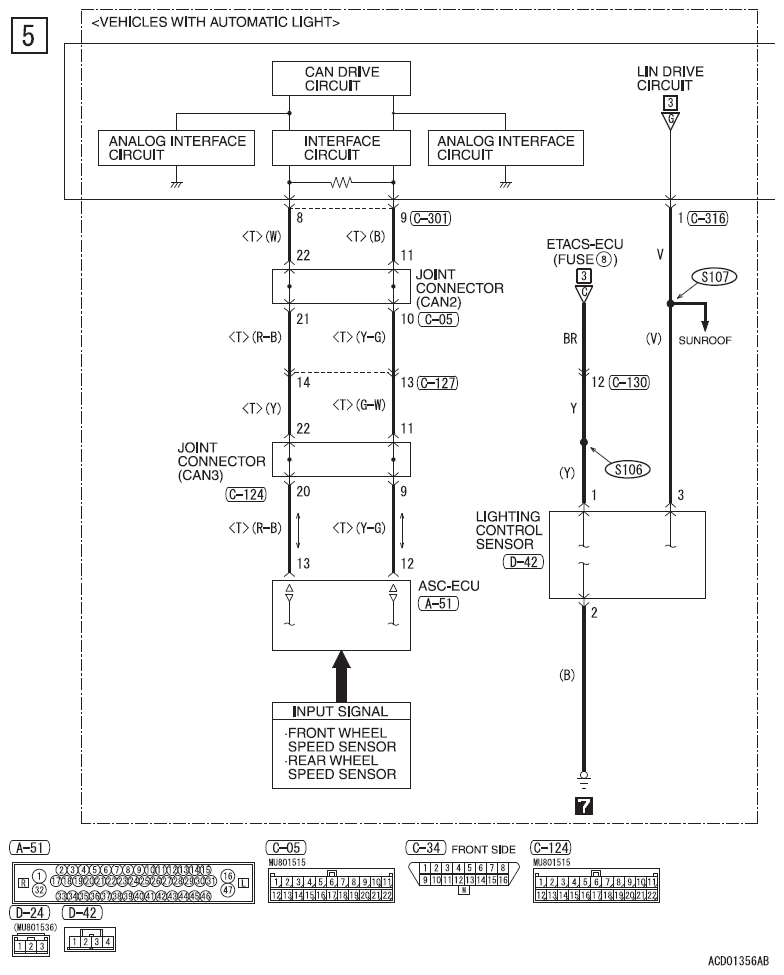

Fig 5: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (5 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

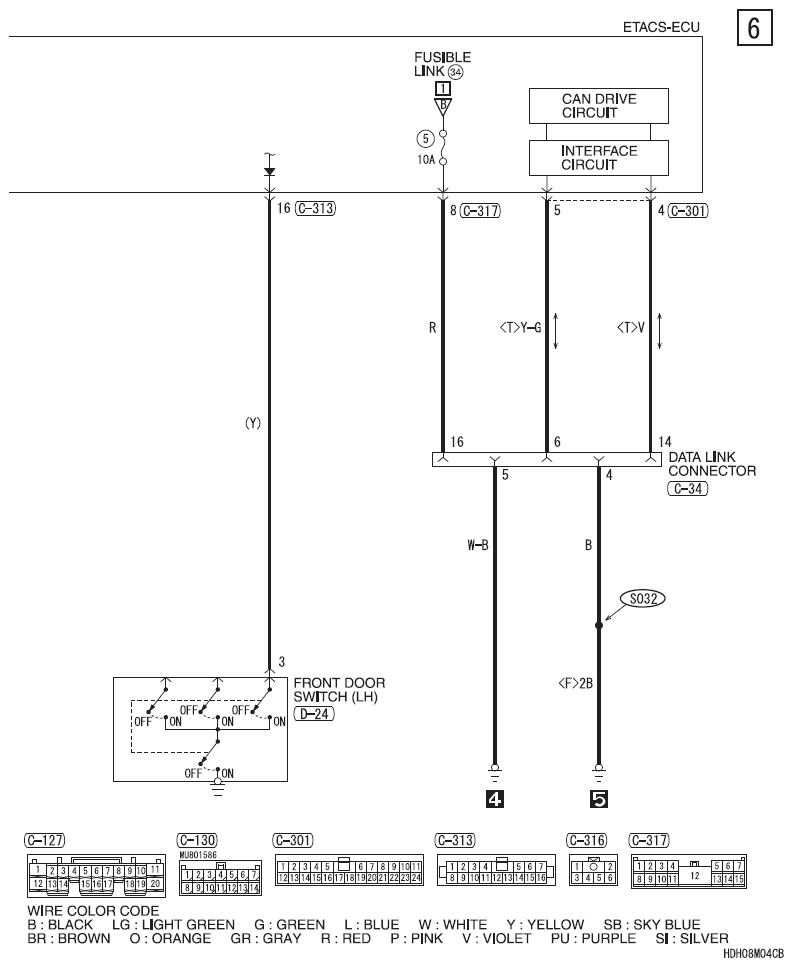

Fig 6: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (6 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

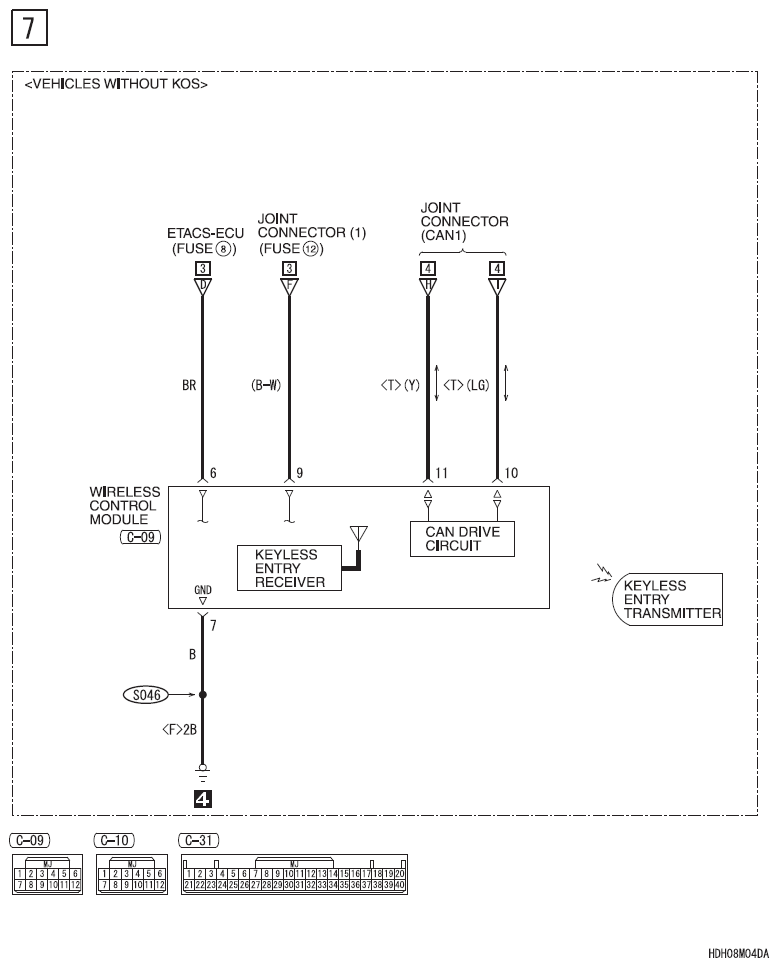

Fig 7: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (7 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

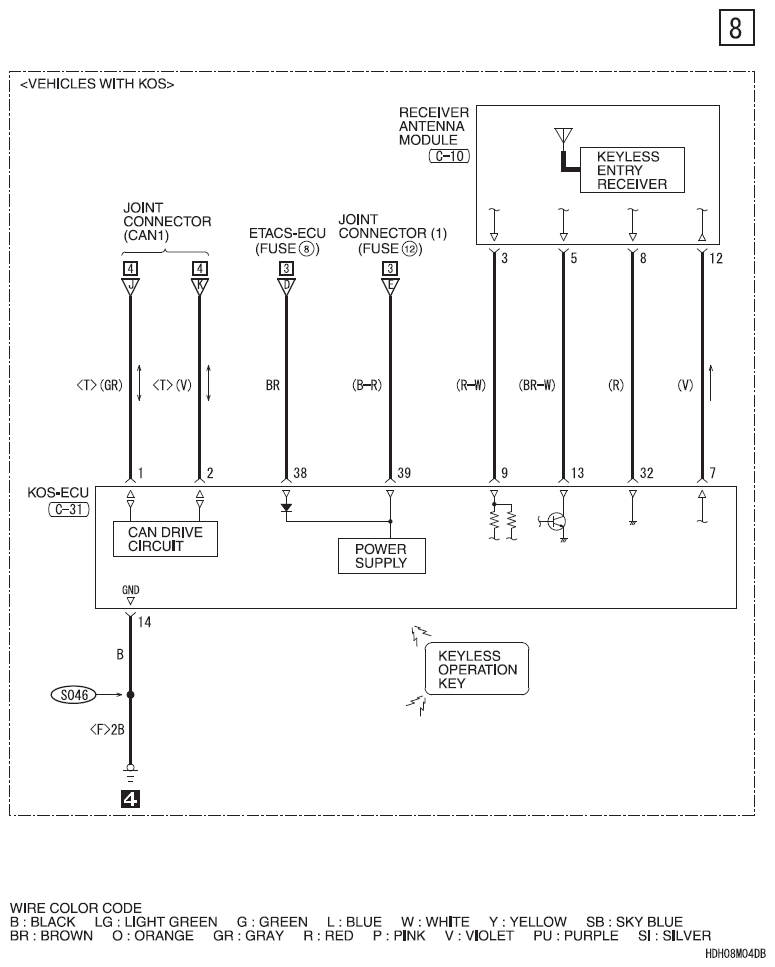

Fig 8: Taillight, Position Light, Rear Side Marker Light, License Plate Light And Lighting Monitor Tone Alarm (Lancer Sportback) - Circuit Diagram (8 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
