Circuit Diagrams - Lancer & Lancer SPORTBACK: Sunroof

Fig 1: Sunroof - Circuit Diagram (1 Of 2)
G09620522Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

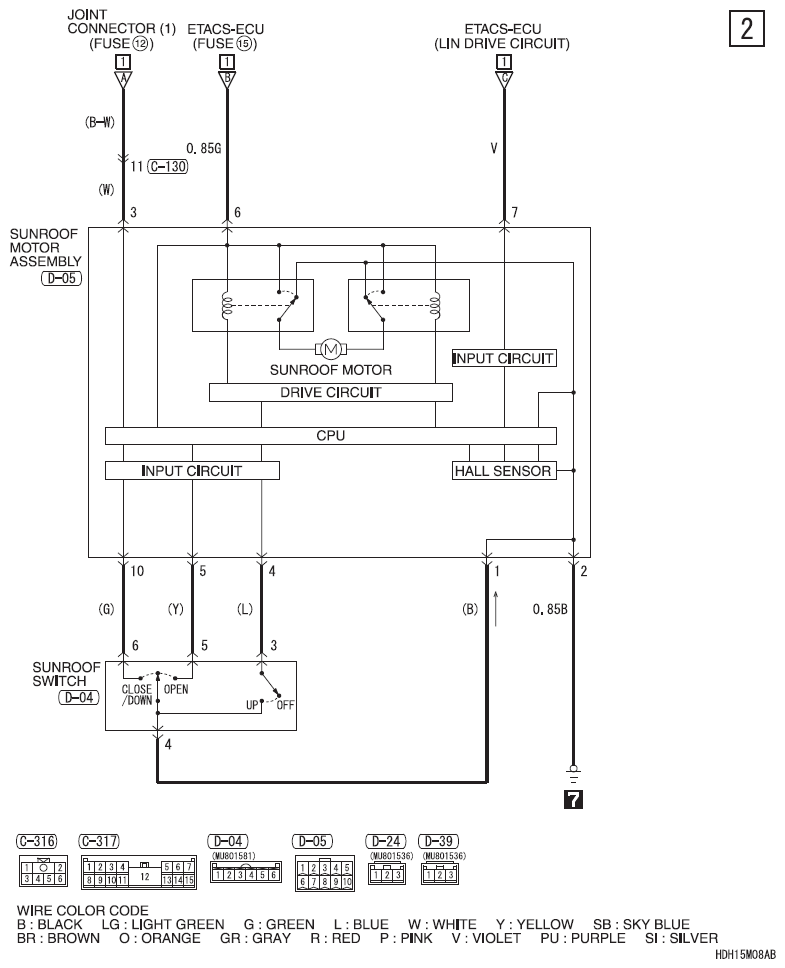

Fig 2: Sunroof - Circuit Diagram (2 Of 2)
G09620523Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
