Spare Connector (For Satellite Radio)

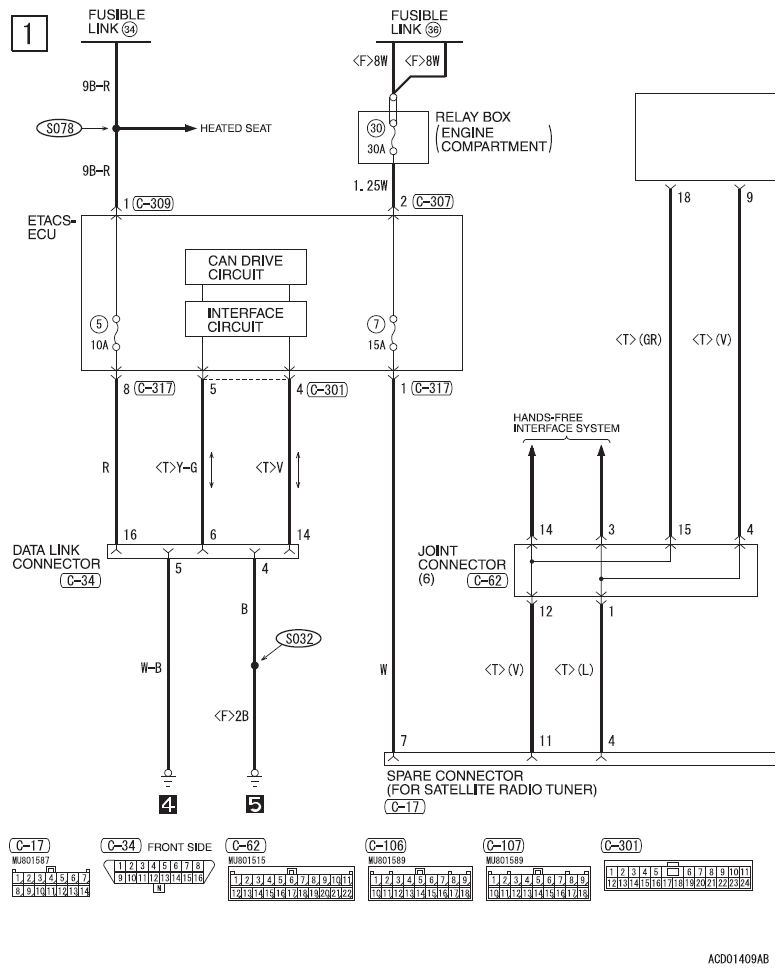

Fig 1: Spare Connector (For Satellite Radio) - Circuit Diagram (1 Of 2)
G09620452Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

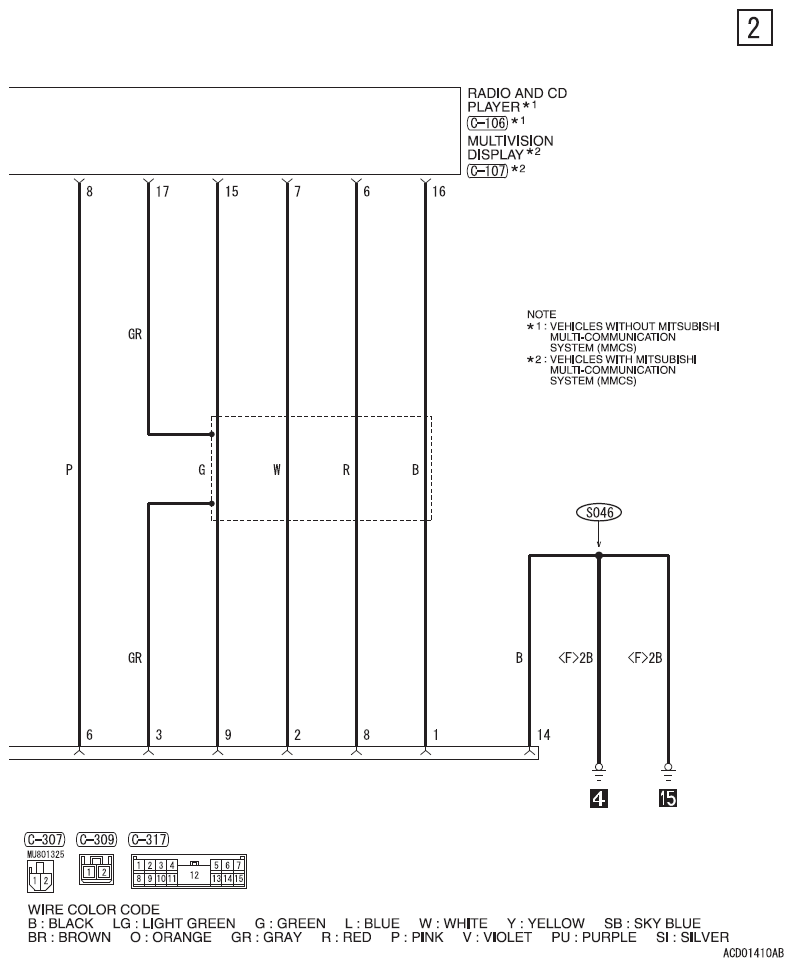

Fig 2: Spare Connector (For Satellite Radio) - Circuit Diagram (2 Of 2)
G09620453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
