Circuit Diagrams - Lancer & Lancer SPORTBACK: Horn

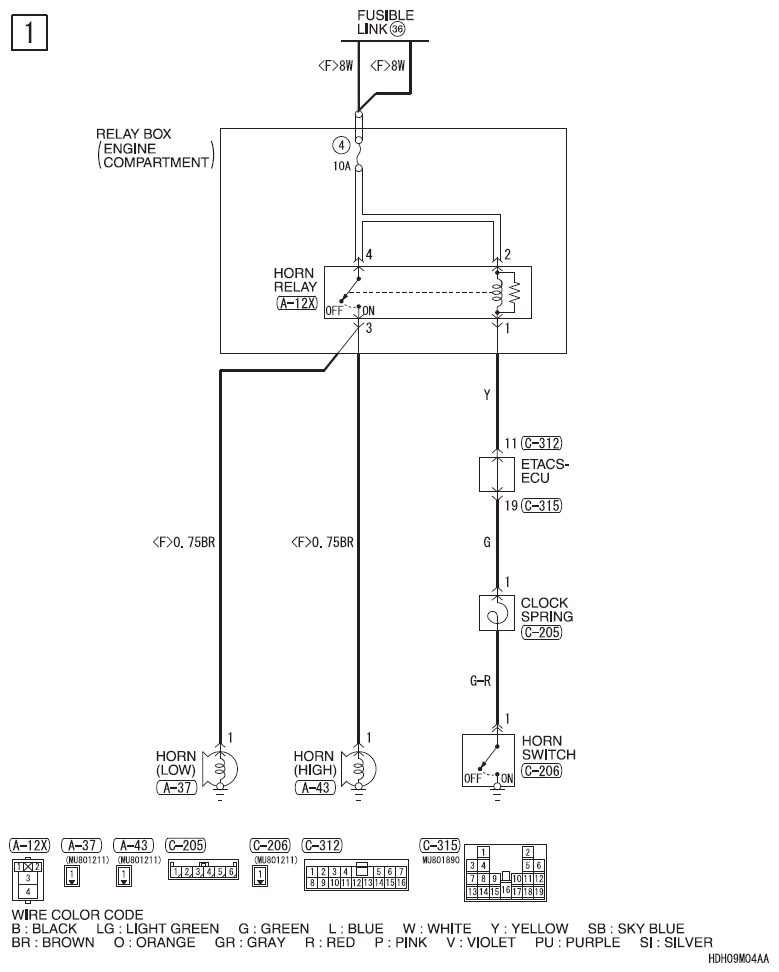

Fig 1: Horn - Circuit Diagram

G09620261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
