Heated Seat

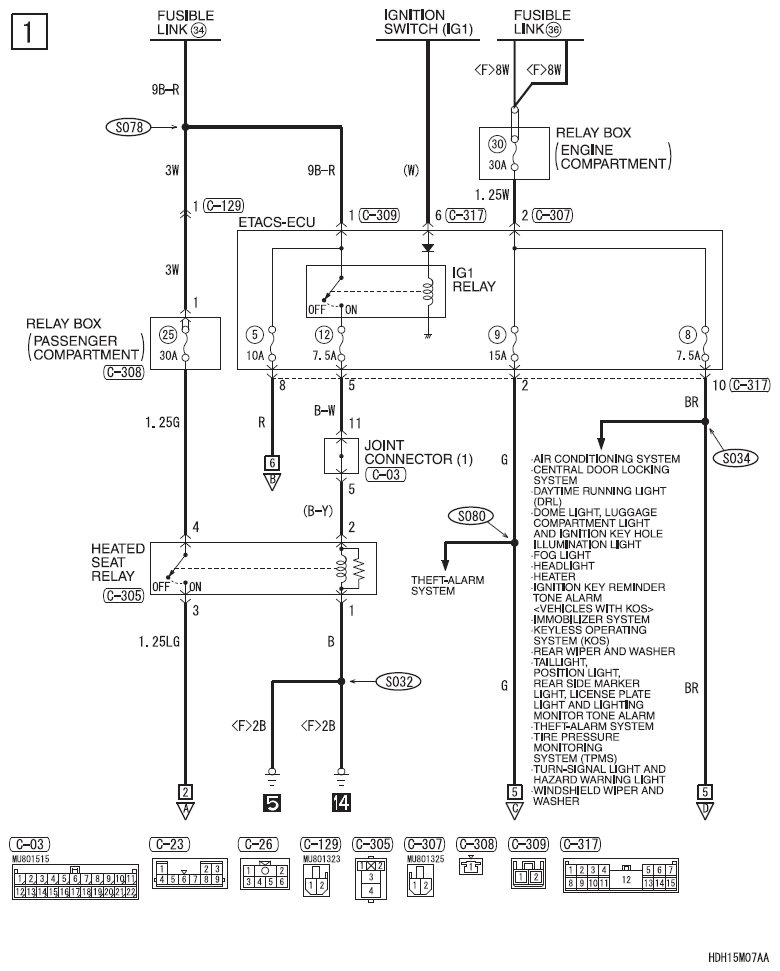

Fig 1: Heated Seat - Circuit Diagram (1 Of 6)

G09620524

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

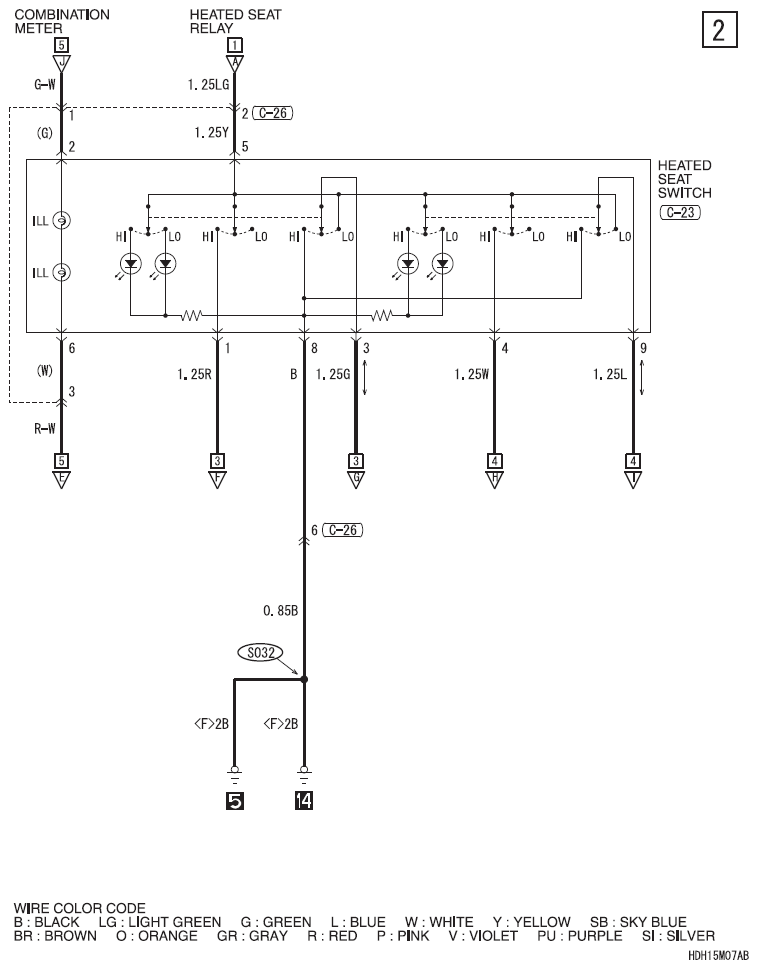

Fig 2: Heated Seat - Circuit Diagram (2 Of 6)

G09620525

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

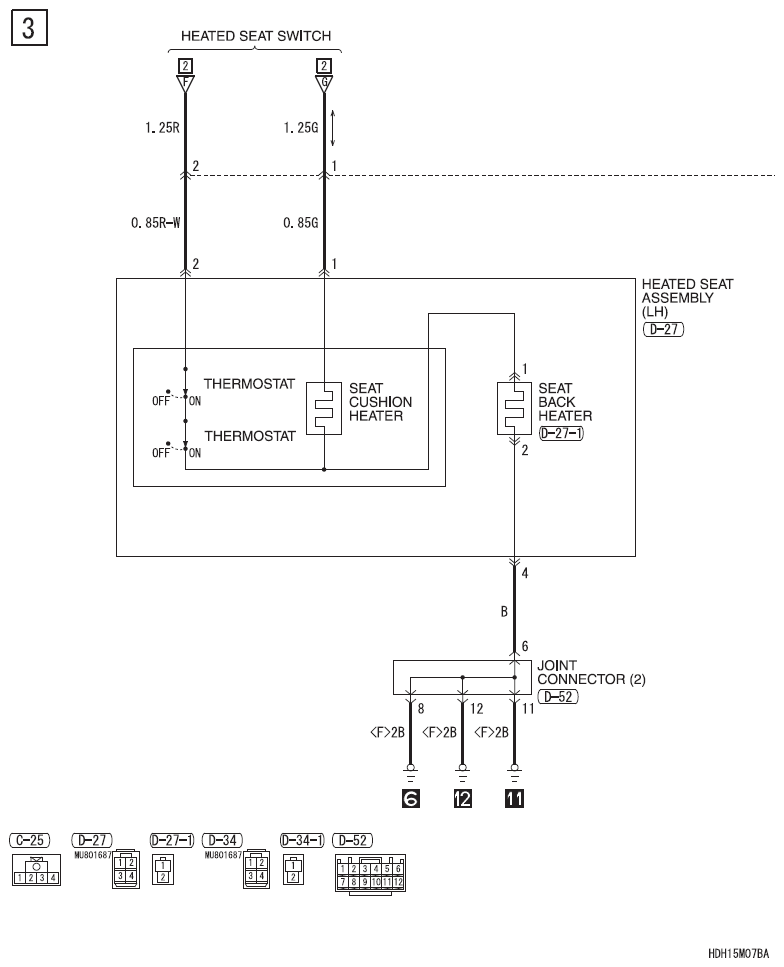

Fig 3: Heated Seat - Circuit Diagram (3 Of 6)

G09620526

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

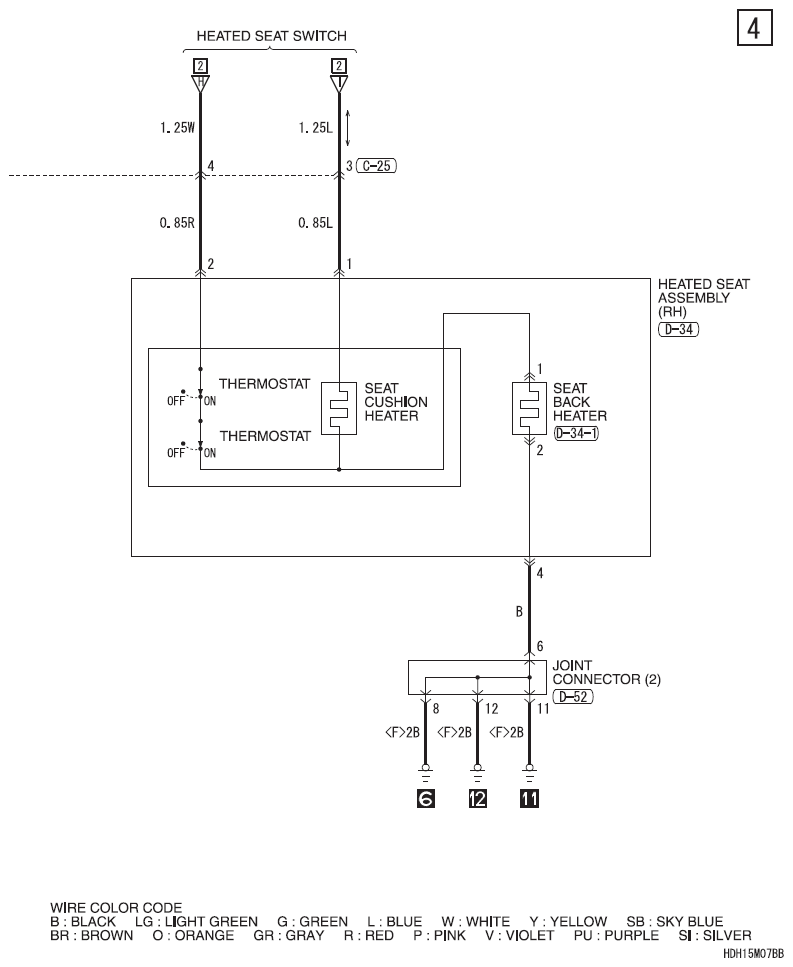

Fig 4: Heated Seat - Circuit Diagram (4 Of 6)

G09620527

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

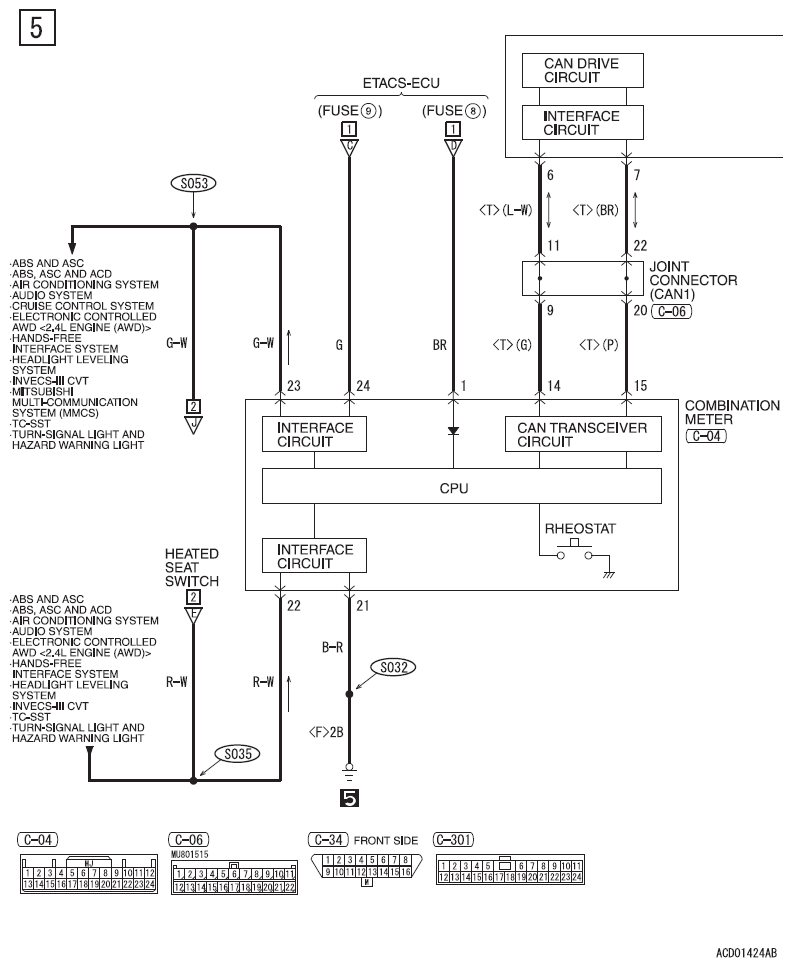

Fig 5: Heated Seat - Circuit Diagram (5 Of 6)

G09620528

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

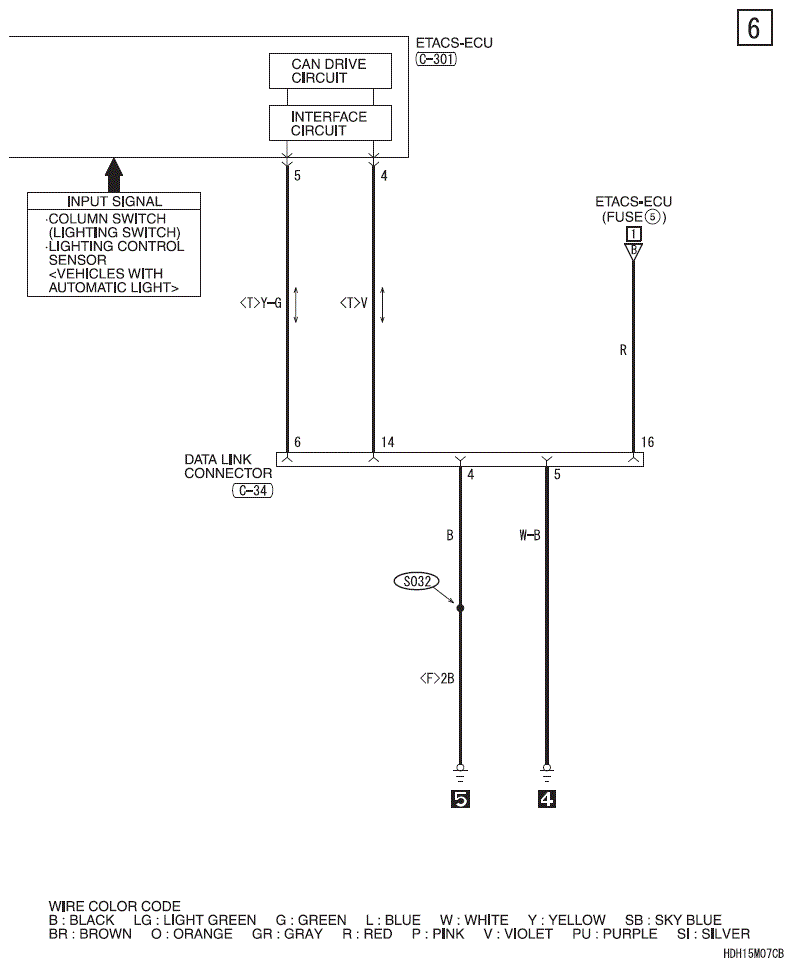

Fig 6: Heated Seat - Circuit Diagram (6 Of 6)

G09620529

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
