Heated Door Mirror

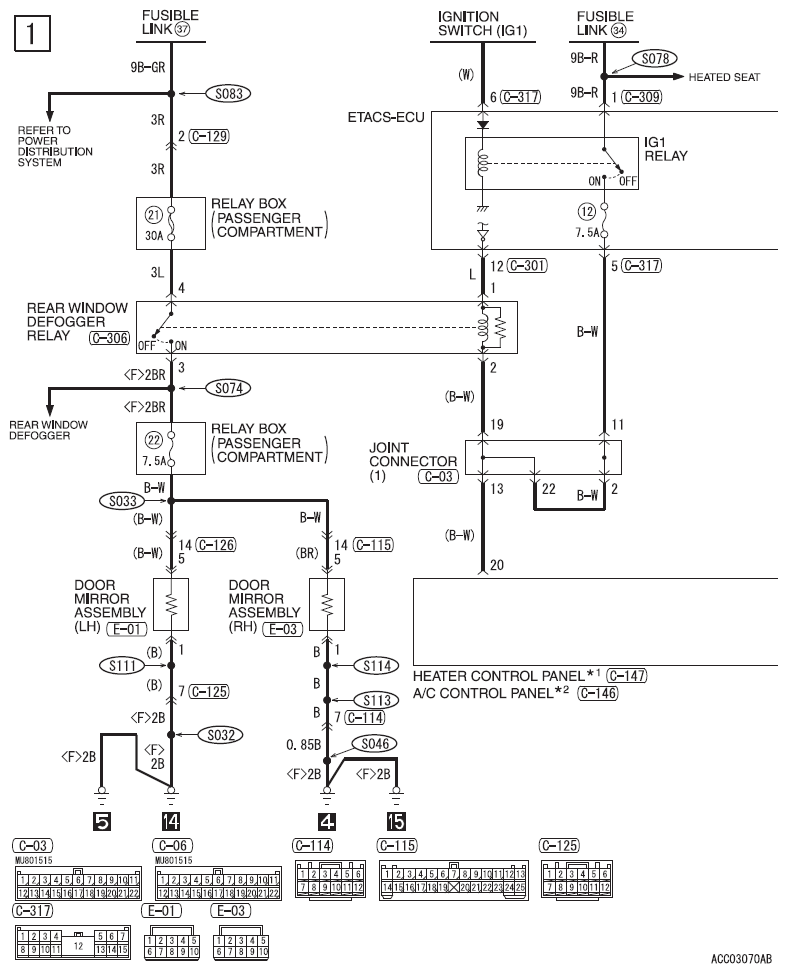

Fig 1: Heated Door Mirror - Circuit Diagram (1 Of 2)
G09620392Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

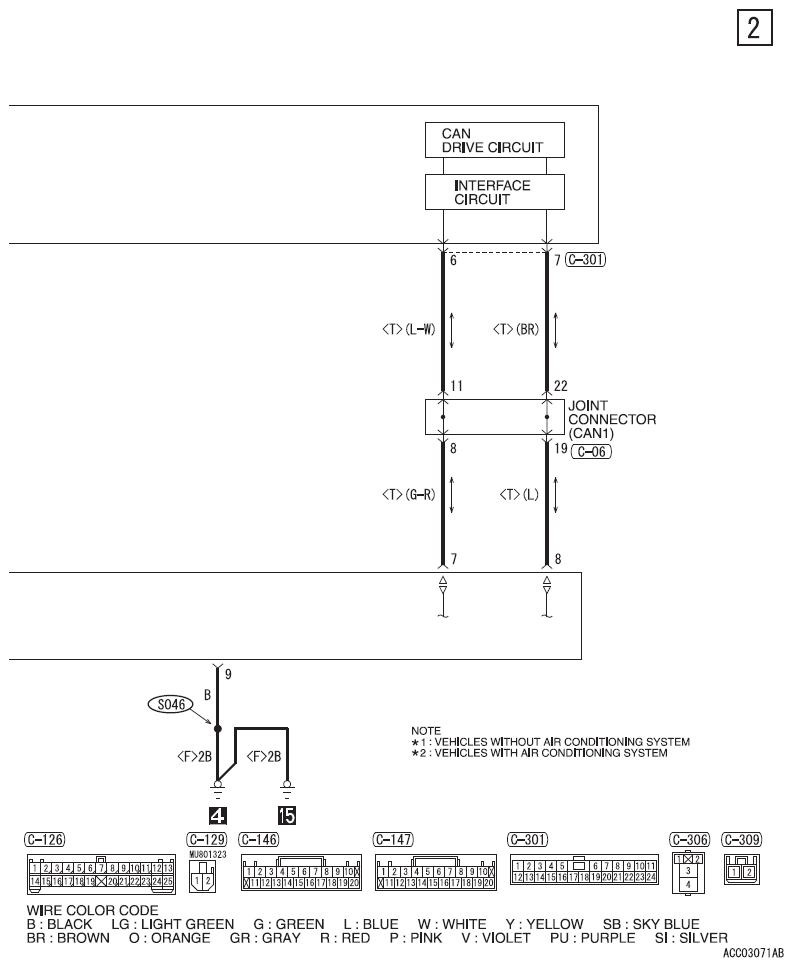

Fig 2: Heated Door Mirror - Circuit Diagram (2 Of 2)
G09620393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
