Electric Power Steering System (Non-Turbo (2.0L Engine))

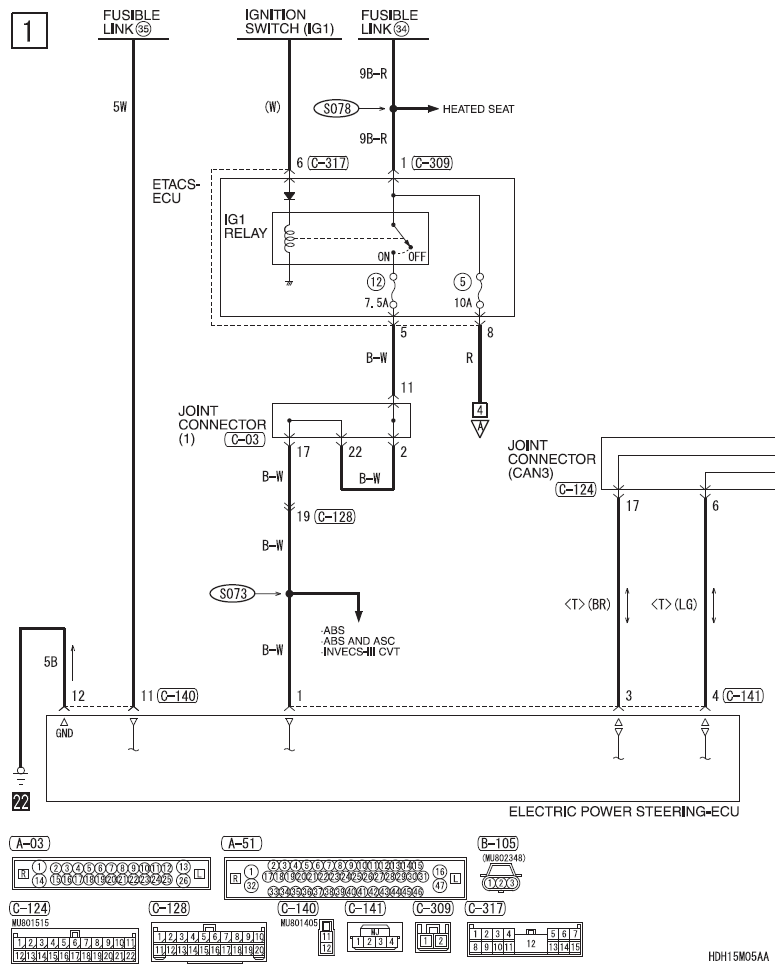

Fig 1: Electric Power Steering System (Non-Turbo (2.0L Engine)) - Circuit Diagram (1 Of 4)
G09620480Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

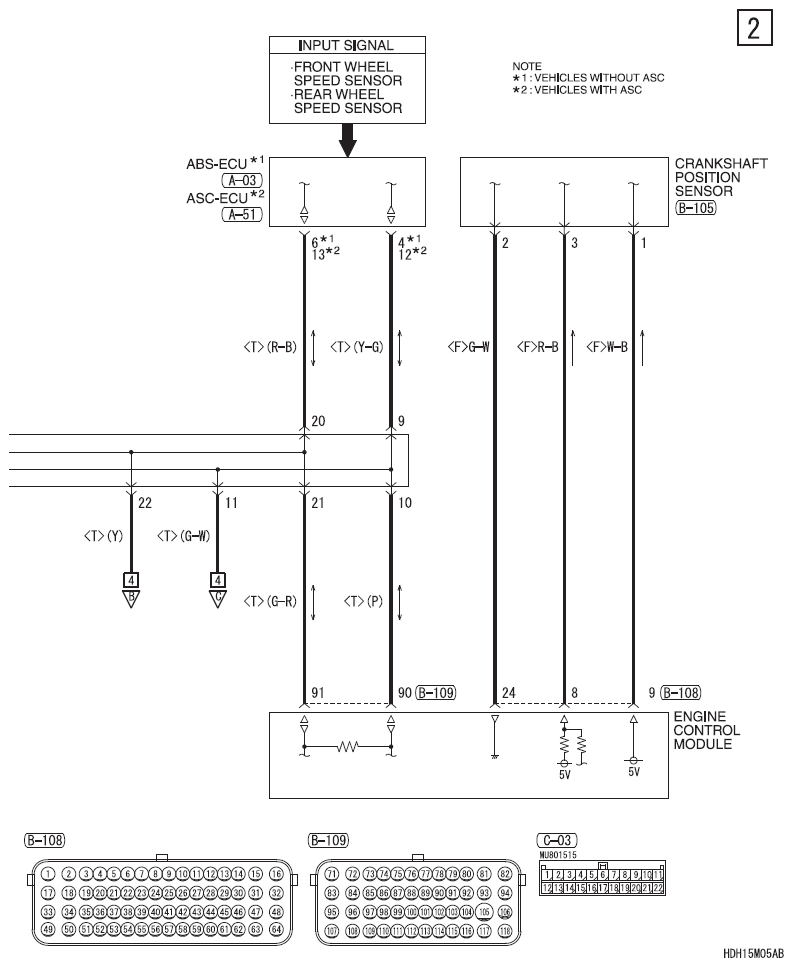

Fig 2: Electric Power Steering System (Non-Turbo (2.0L Engine)) - Circuit Diagram (2 Of 4)
G09620481Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

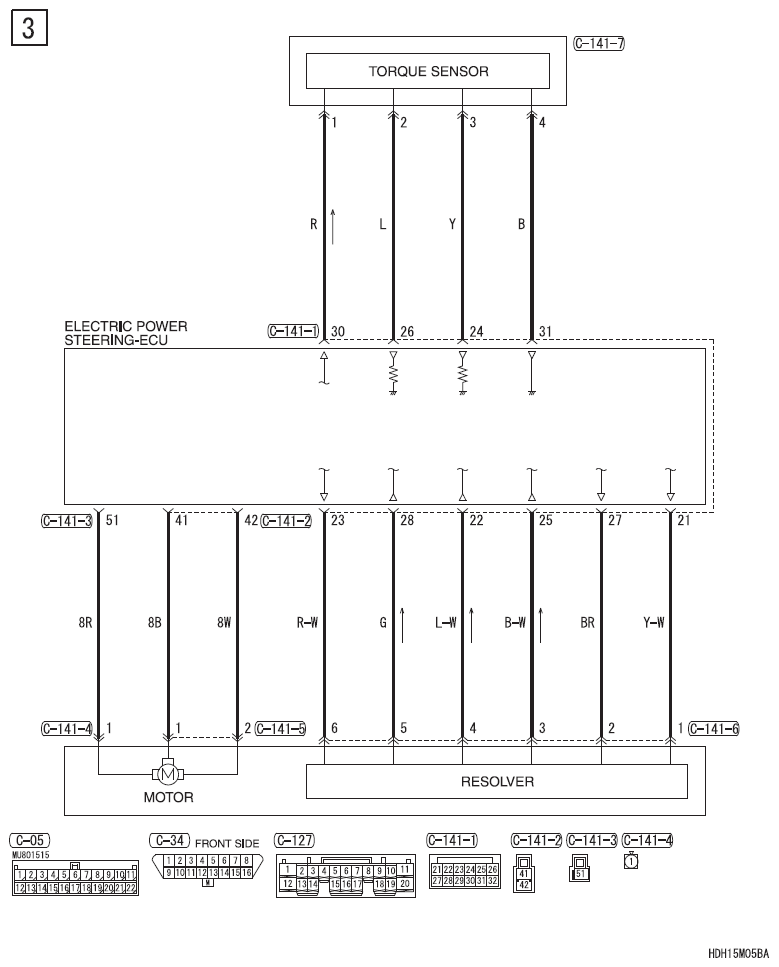

Fig 3: Electric Power Steering System (Non-Turbo (2.0L Engine)) - Circuit Diagram (3 Of 4)
G09620482Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

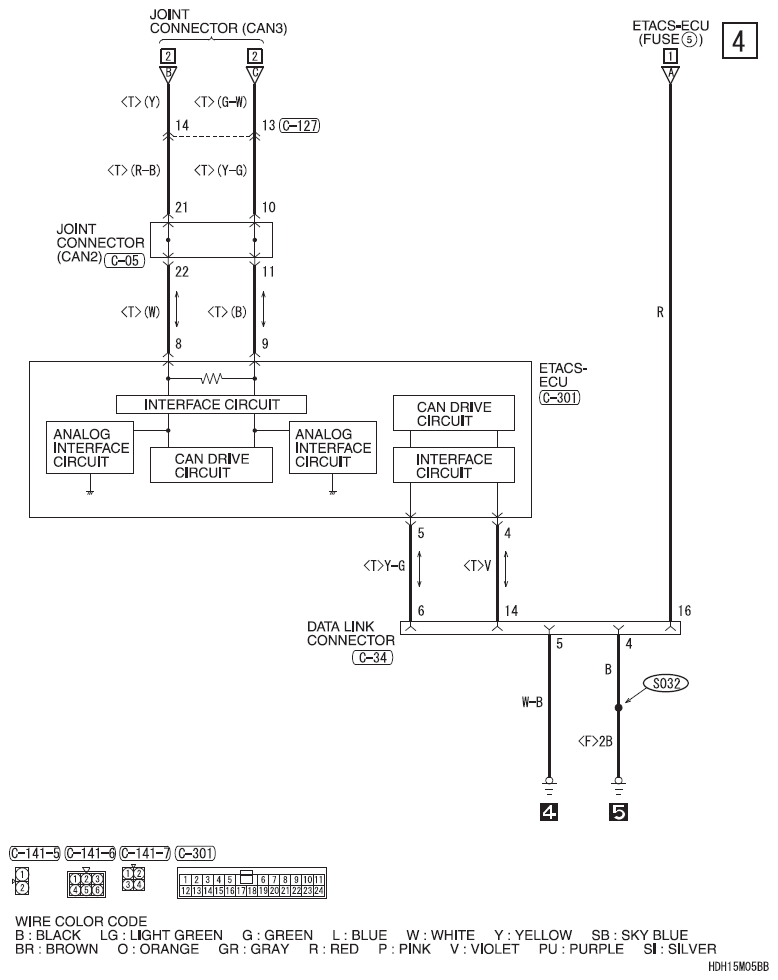

Fig 4: Electric Power Steering System (Non-Turbo (2.0L Engine)) - Circuit Diagram (4 Of 4)
G09620483Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
