Passenger Compartment

No. Power supply circuit Name Rated capacity (A) Housing color Load circuit
1 Fusible link No. 37 Fusible link 30 Pink Blower motor
2 Fusible link No. 34 Fuse 15 Blue ETACS-ECU, high-mounted stoplight, rear combination light, shift lever < TC-SST > and shift switch assembly < CVT >
3 Fusible link No. 37 10 Red -
4 ETACS-ECU (ACC relay 3) 30 Green ETACS-ECU (rear washer relay, windshield washer relay, windshield wiper automatic stop relay, windshield wiper speed switching relay), windshield washer motor and windshield wiper motor
5 Fusible link No. 34 10 Red Data link connector
6 Fusible link No. 37 20 Yellow ETACS-ECU (door lock relay, driver's door unlock relay, liftgate unlock relay, passenger's door unlock relay, trunk lid unlock relay), front door lock actuator, liftgate lock actuator and rear door lock actuator
7 Fusible link No. 30 15 Blue Center panel unit, hands free module, multivision display, radio/CD player, satellite radio tuner, spare connector (for hands-free interface unit), spare connector (for navigation unit) and spare connector (for satellite radio)
8 7.5 Brown A/C control panel, AWC-ECU, column switch, combination meter, ETACS-ECU, ETACS-ECU (power window relay), key reminder switch, KOS-ECU, lighting control sensor and wireless control module < Vehicles without KOS >
9 15 Blue Center panel unit, combination meter and key reminder switch
10 Fusible link No. 34 15 Blue ETACS-ECU
11 ETACS-ECU (ACC relay 3) 15 Blue ETACS-ECU (rear wiper relay) and rear wiper motor
12 ETACS-ECU (IG1 relay) 7.5 Brown A/C control panel, ASC-ECU, AWC-ECU, AWD-ECU < 2.4L Engine (AWD) >, CVT control relay, ABS-ECU, center panel unit, column switch, combination meter, electric power steering-ECU, heated seat relay, inside rear view mirror assembly, KOS-ECU, rear window defogger relay, shift lever < TC-SST >, shift switch assembly < CVT >, SRS-ECU, steering wheel sensor < Vehicles with ASC >, sunroof motor assembly, transaxle assembly < TC-SST > and wireless control module < Vehicles without KOS >
13 ETACS-ECU (ACC relay 2) 15 Blue Accessory socket (front floor console) and cigarette lighter (front floor console)
14 Fusible link No. 34 10 Red Engine control module, ETACS-ECU and ETACS-ECU (fuel pump relay < non-turbo >, IG1 relay, No. 2 fuel pump relay < turbo >, power window relay)
15 20 Yellow Sunroof motor assembly
16 ETACS-ECU (ACC relay 2) 10 Red Door mirror assembly, inside rear view mirror assembly, multivision display, radio/CD player and shift lever < TC-SST >
17 Fusible link No. 34 10 Red ASC-ECU, AWC-ECU, AWD-ECU < 2.4L Engine (AWD) >, and occupant classification-ECU
18 ETACS-ECU (IG1 relay) 7.5 Brown Backup light < non-turbo >, ETACS-ECU, multivision display, spare connector (for navigation unit), transaxle control module < CVT >, transmission range switch < CVT >, shift lever < TC-SST > and SRS-ECU
19 Fusible link No. 37 15 Blue Accessory socket (rear floor console)
20 Fusible link No. 34 Fusible link 30 Pink Front power window motor (RH), power window main switch and rear power window motor
21 Fusible link No. 37 30 Pink Fuse No. 22 in passenger compartment and rear window defogger
22 Rear window defogger relay Fuse 7.5 Brown Door mirror assembly
23 Fusible link No. 34 - - -
24 Fusible link No. 34 Fuse - - -
25 30 Green Heated seat assembly and heated seat switch

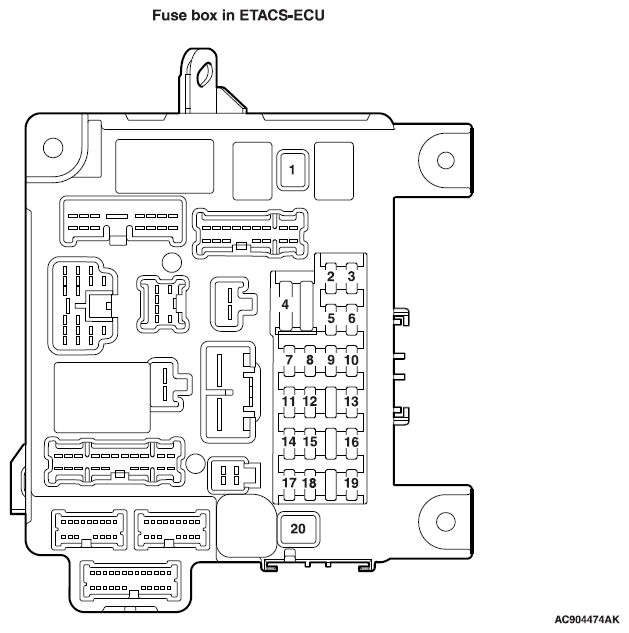

Fig 1: Identifying Fuse Box In ETACS-ECU
G09620105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Relay Box (Connected Directly To ETACS-ECU)
G09620106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
