Central Door Locking System < Lancer SPORTBACK >

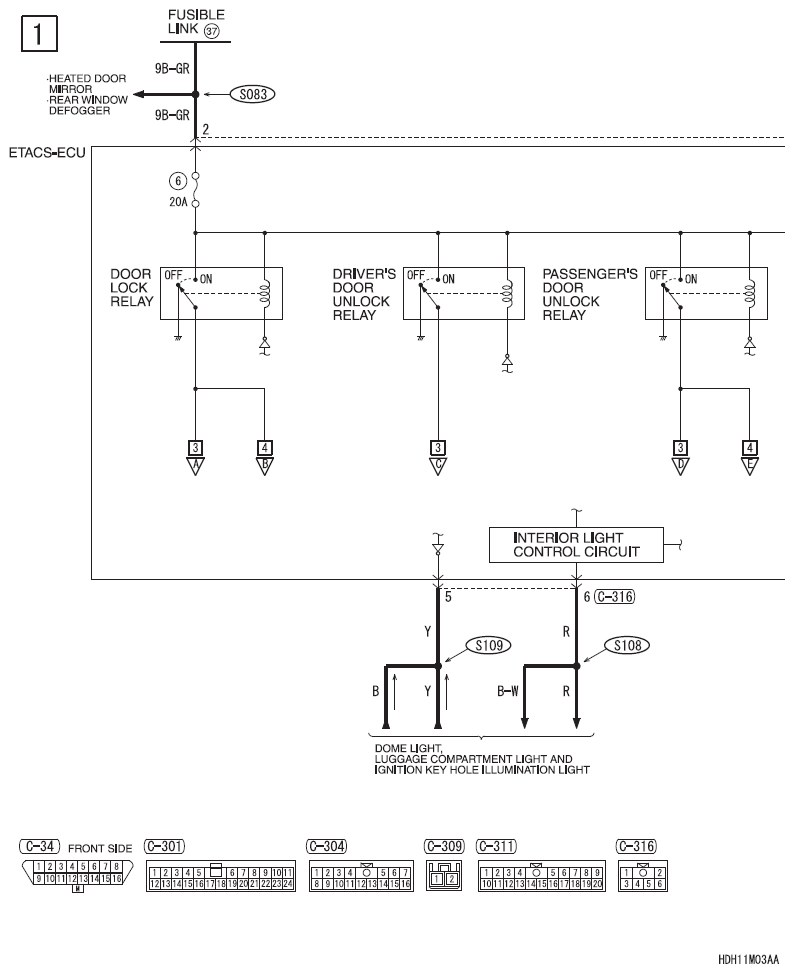

Fig 1: Central Door Locking System (Lancer Sportback) - Circuit Diagram (1 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

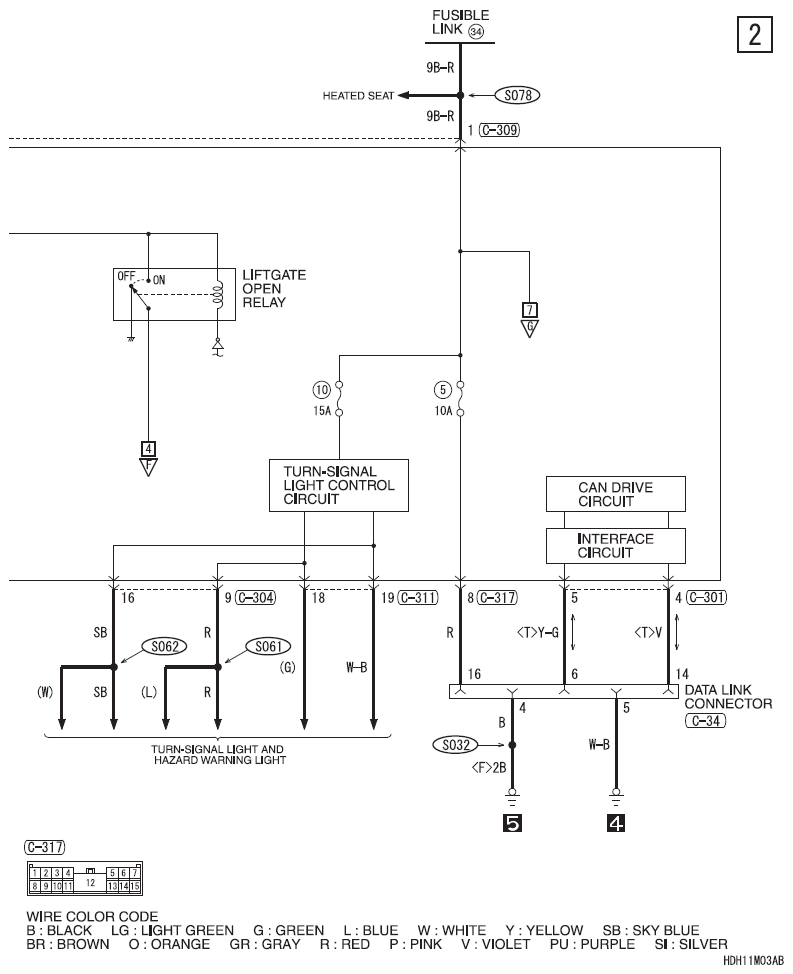

Fig 2: Central Door Locking System (Lancer Sportback) - Circuit Diagram (2 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

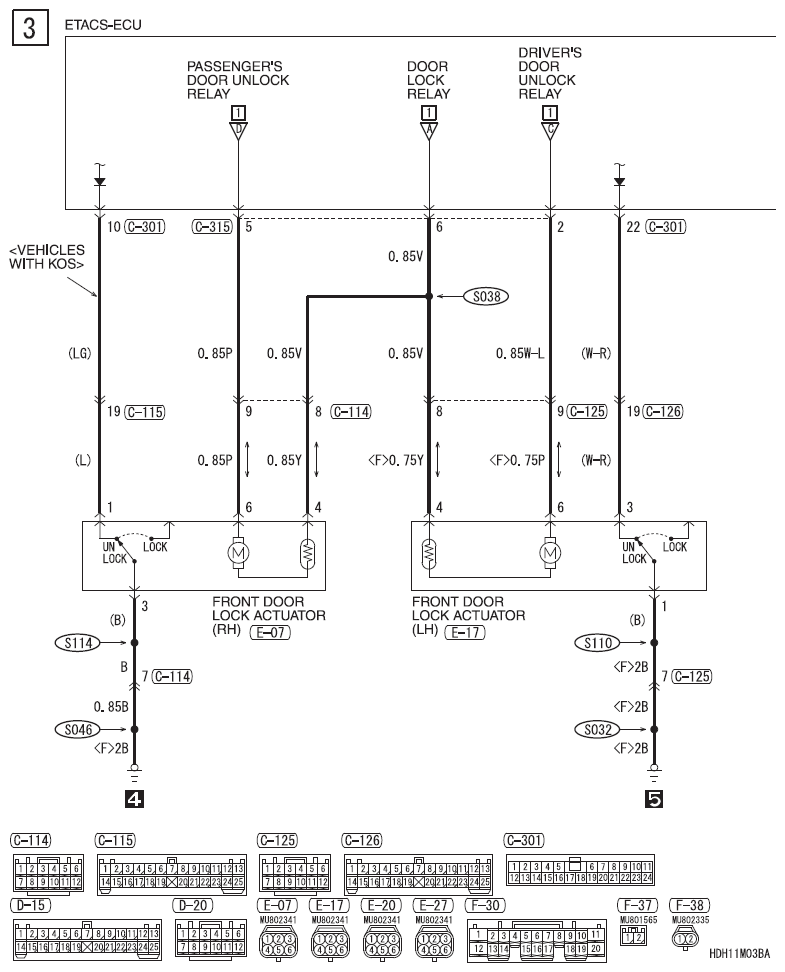

Fig 3: Central Door Locking System (Lancer Sportback) - Circuit Diagram (3 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

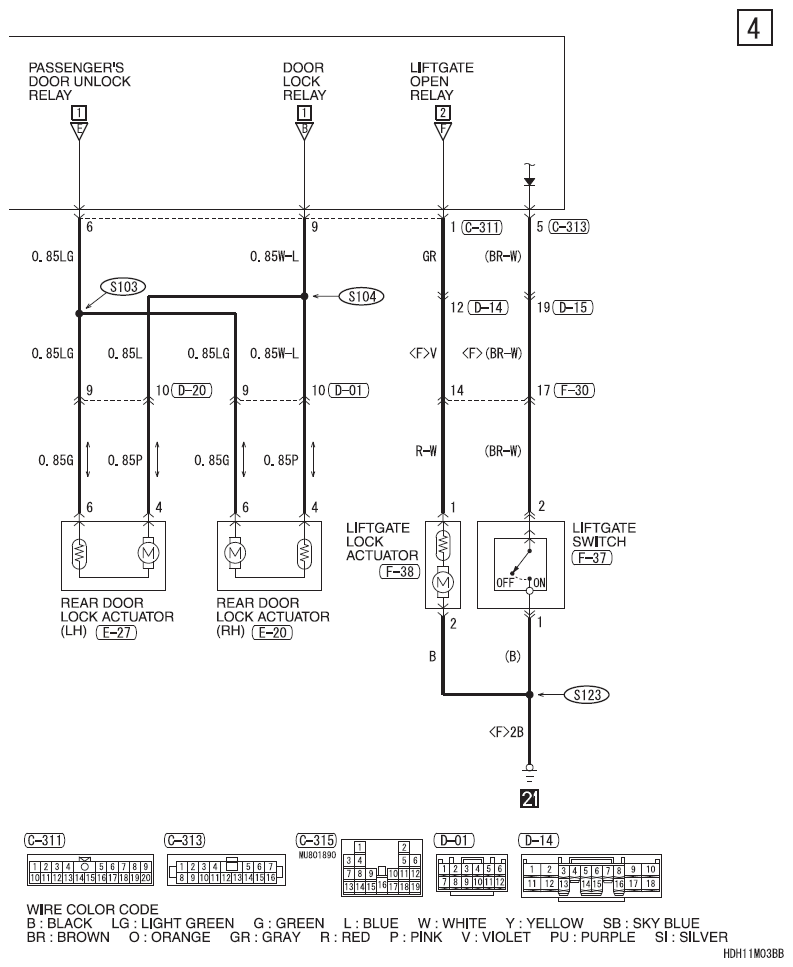

Fig 4: Central Door Locking System (Lancer Sportback) - Circuit Diagram (4 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

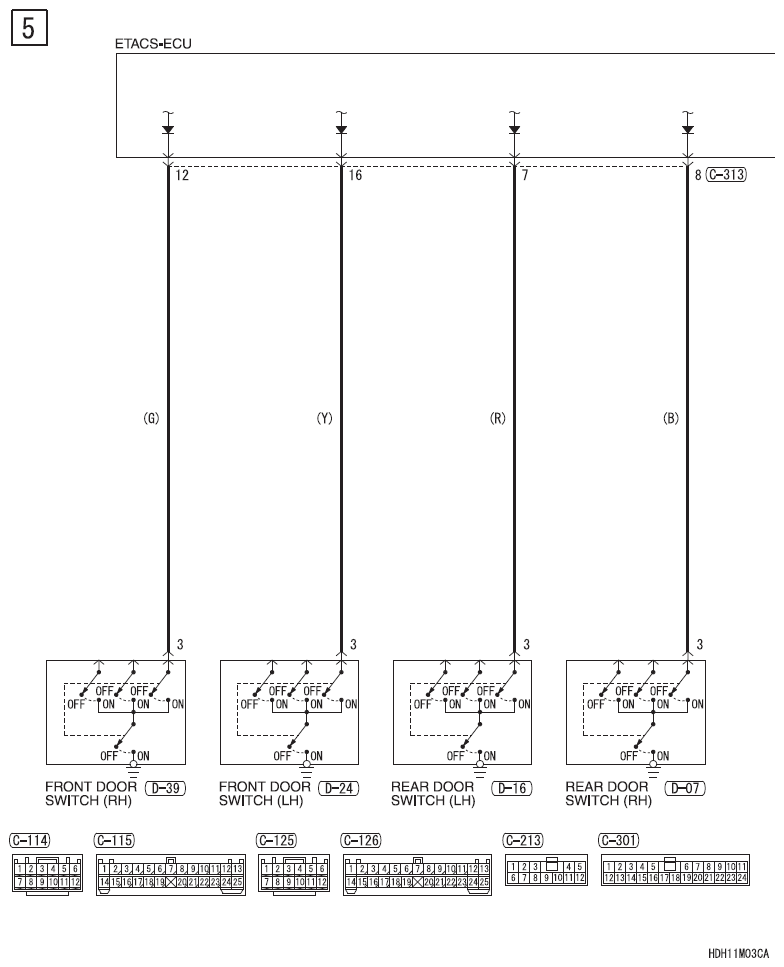

Fig 5: Central Door Locking System (Lancer Sportback) - Circuit Diagram (5 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

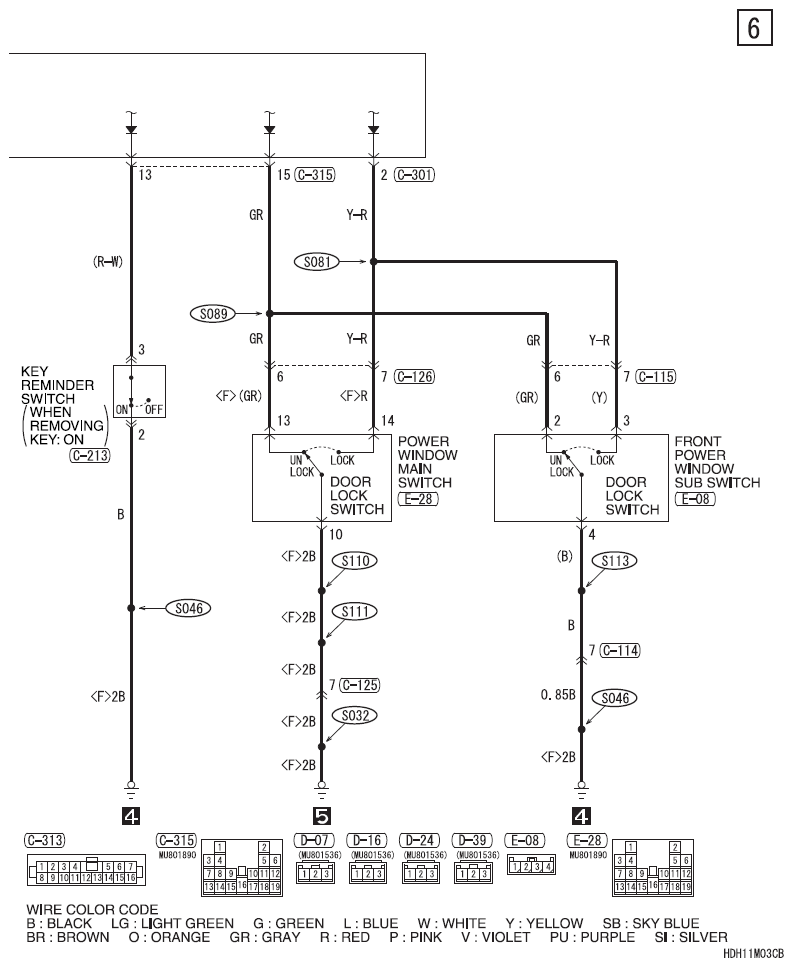

Fig 6: Central Door Locking System (Lancer Sportback) - Circuit Diagram (6 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

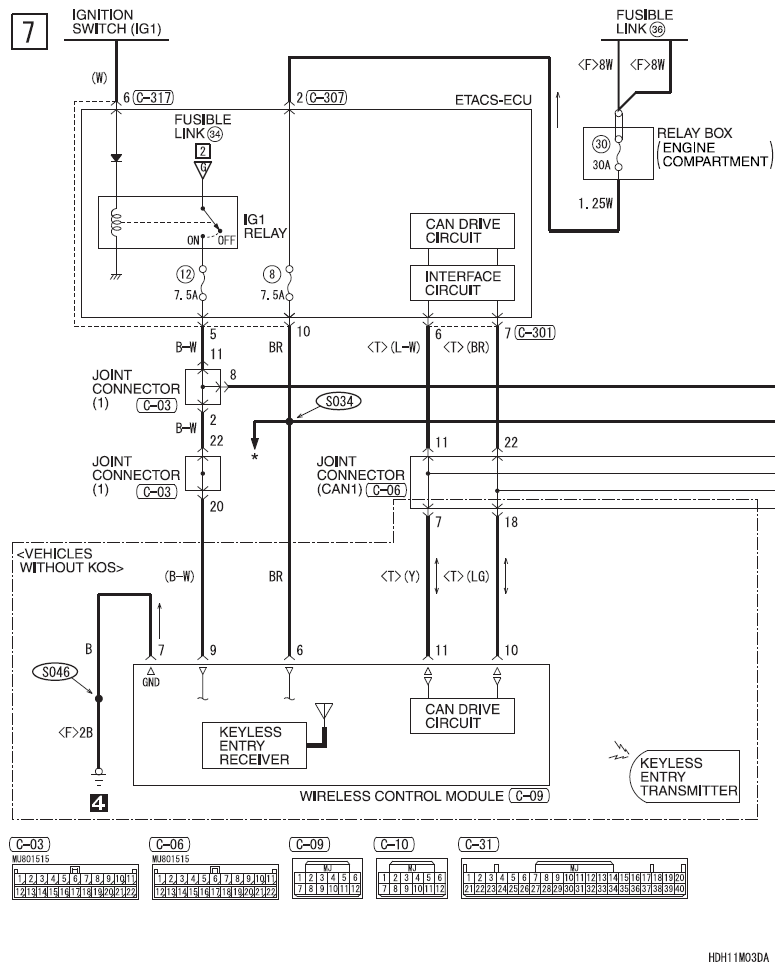

Fig 7: Central Door Locking System (Lancer Sportback) - Circuit Diagram (7 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

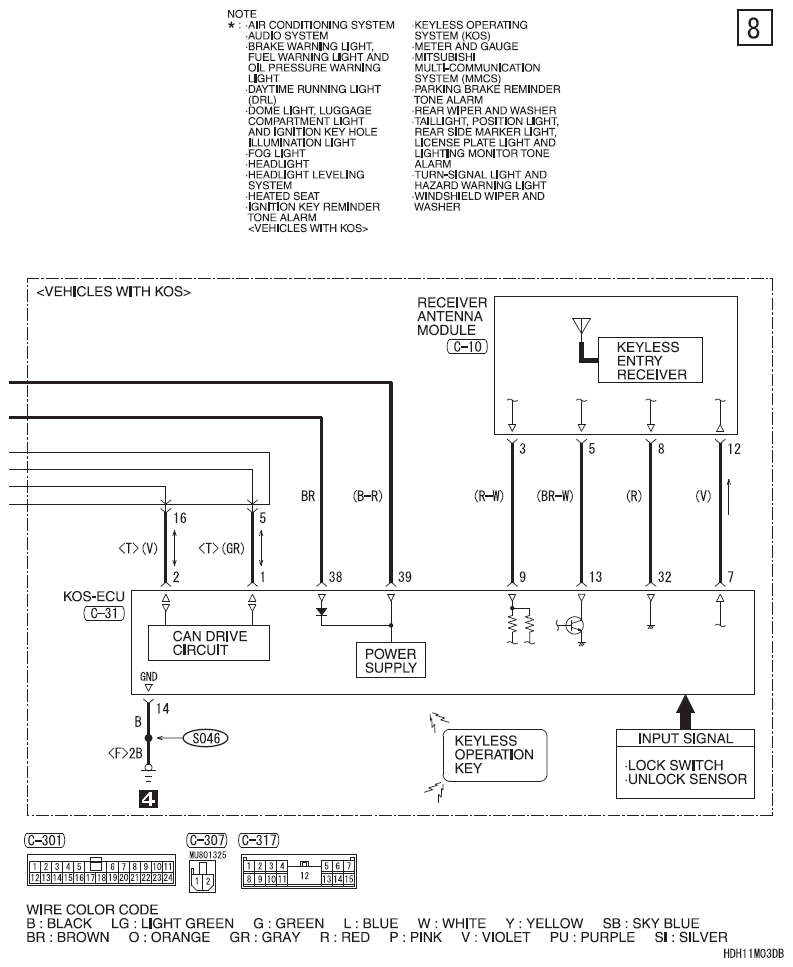

Fig 8: Central Door Locking System (Lancer Sportback) - Circuit Diagram (8 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

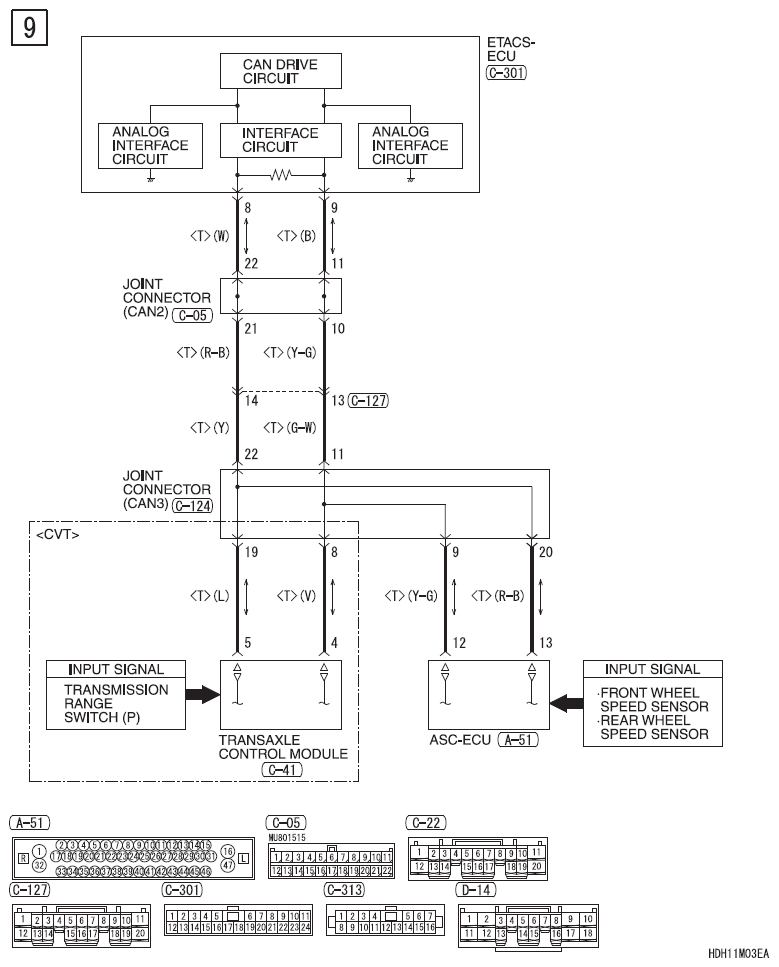

Fig 9: Central Door Locking System (Lancer Sportback) - Circuit Diagram (9 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

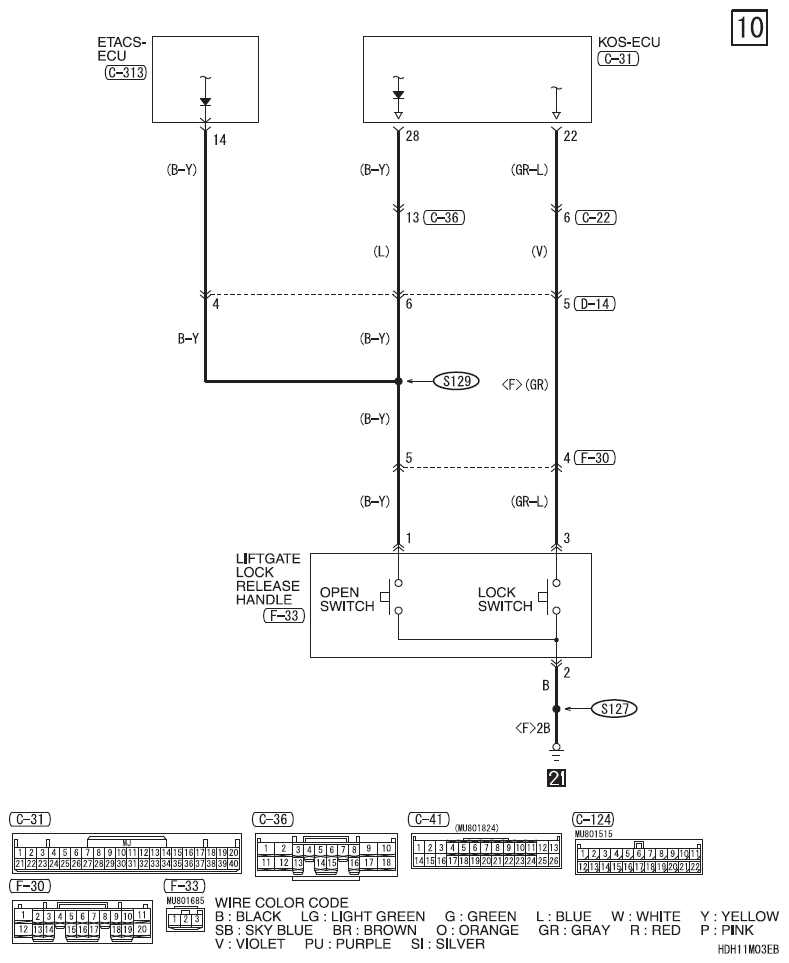

Fig 10: Central Door Locking System (Lancer Sportback) - Circuit Diagram (10 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
