Brake Warning Light, Fuel Warning Light And Oil Pressure Warning Light (Non-Turbo)

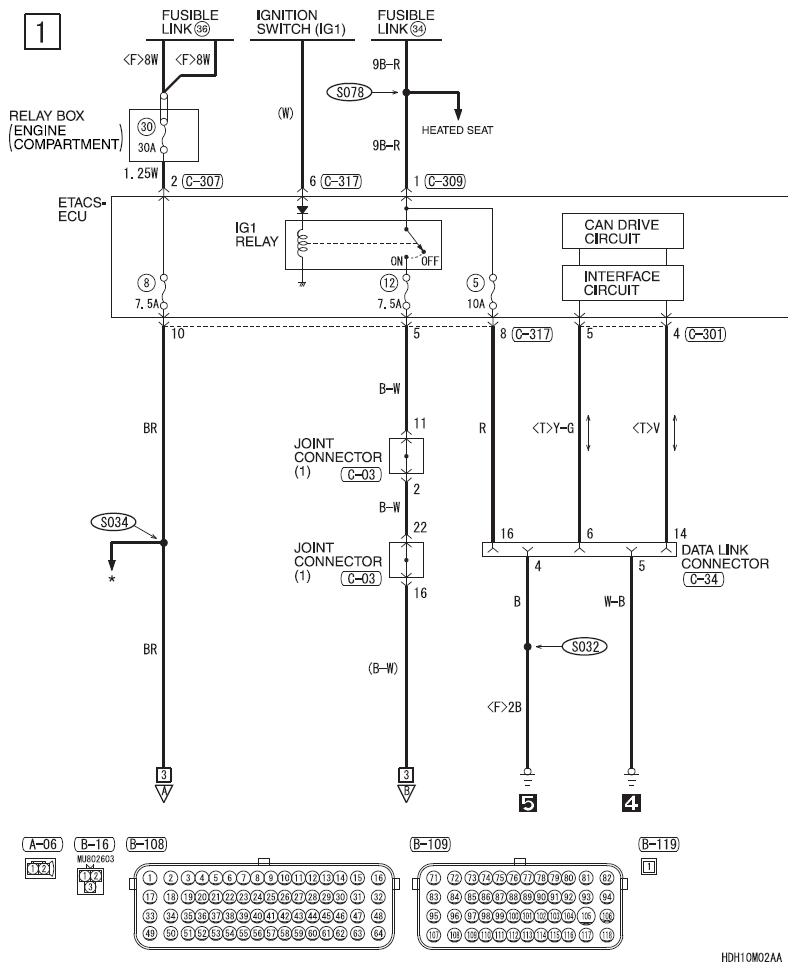

Fig 1: Brake Warning Light, Fuel Warning Light And Oil Pressure Warning Light (Non-Turbo) - Circuit Diagram (1 Of 3)
G09620276Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

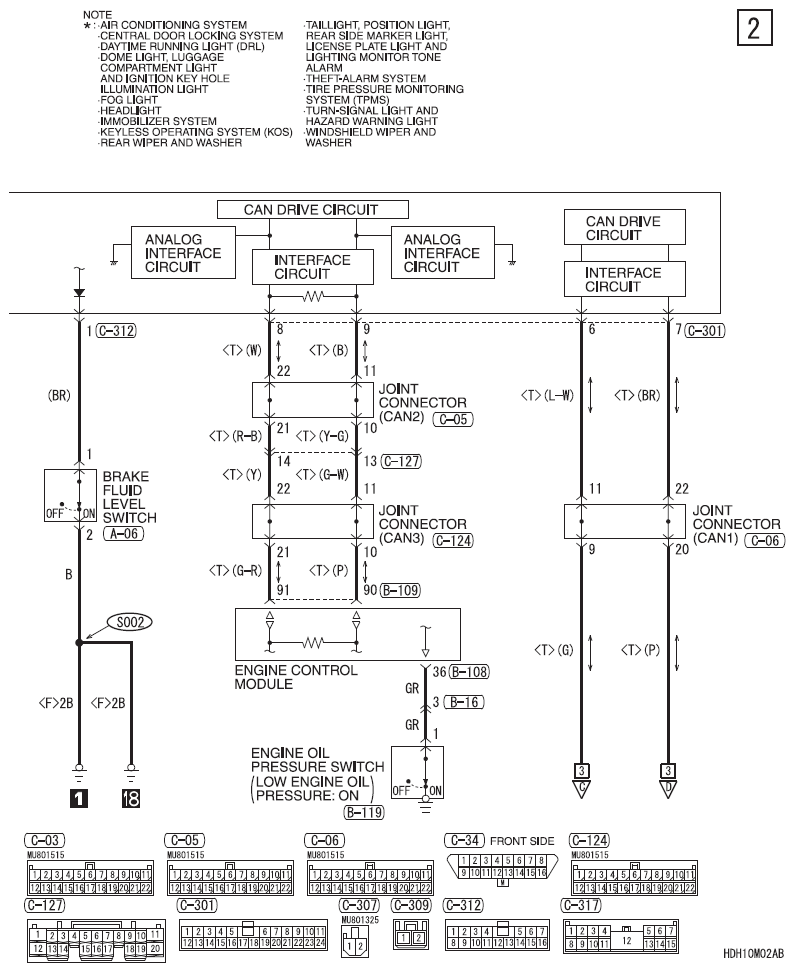

Fig 2: Brake Warning Light, Fuel Warning Light And Oil Pressure Warning Light (Non-Turbo) - Circuit Diagram (2 Of 3)
G09620277Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

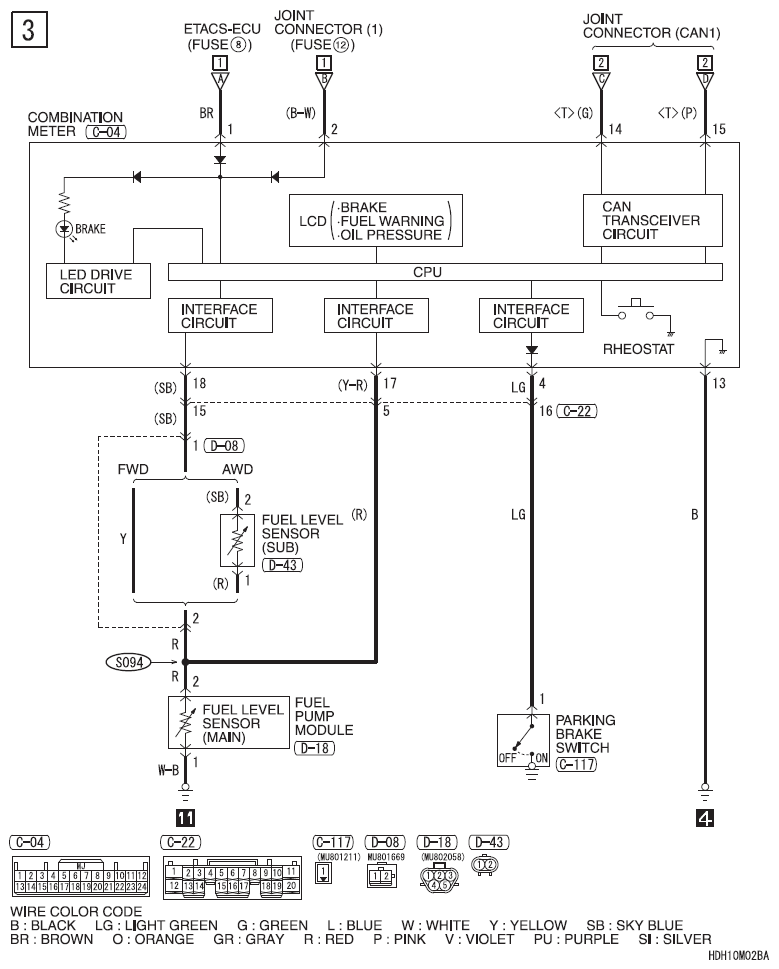

Fig 3: Brake Warning Light, Fuel Warning Light And Oil Pressure Warning Light (Non-Turbo) - Circuit Diagram (3 Of 3)
G09620278Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
