Backup Light (Lancer (Non-Turbo))

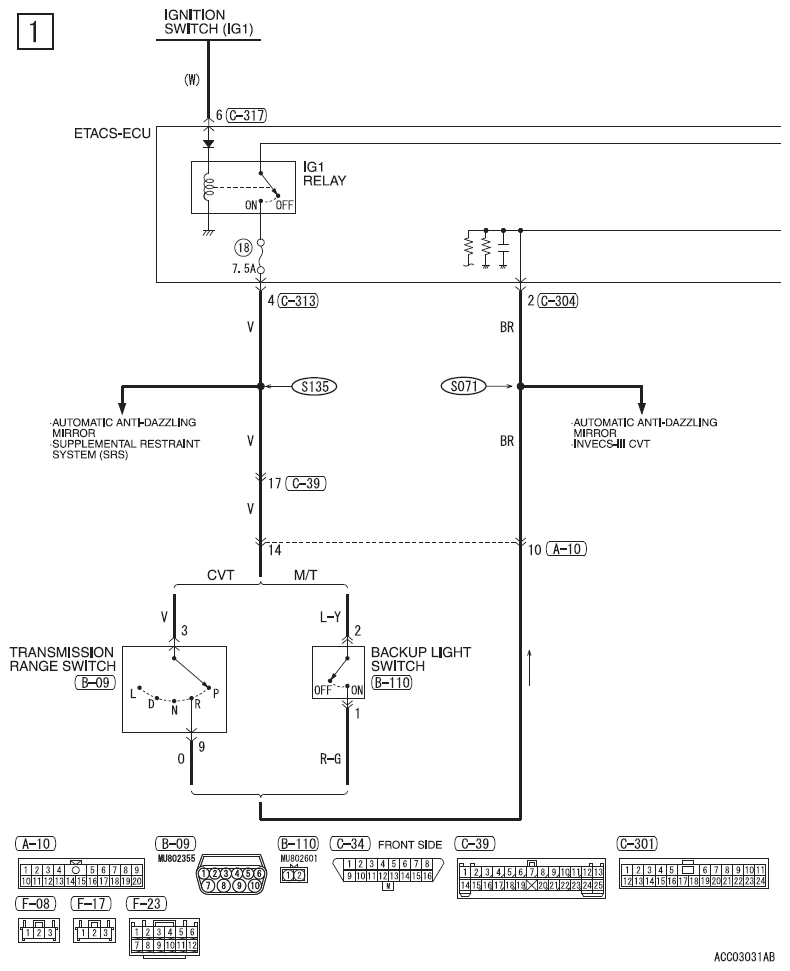

Fig 1: Backup Light (Lancer (Non-Turbo)) - Circuit Diagram (1 Of 2)
G09620262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

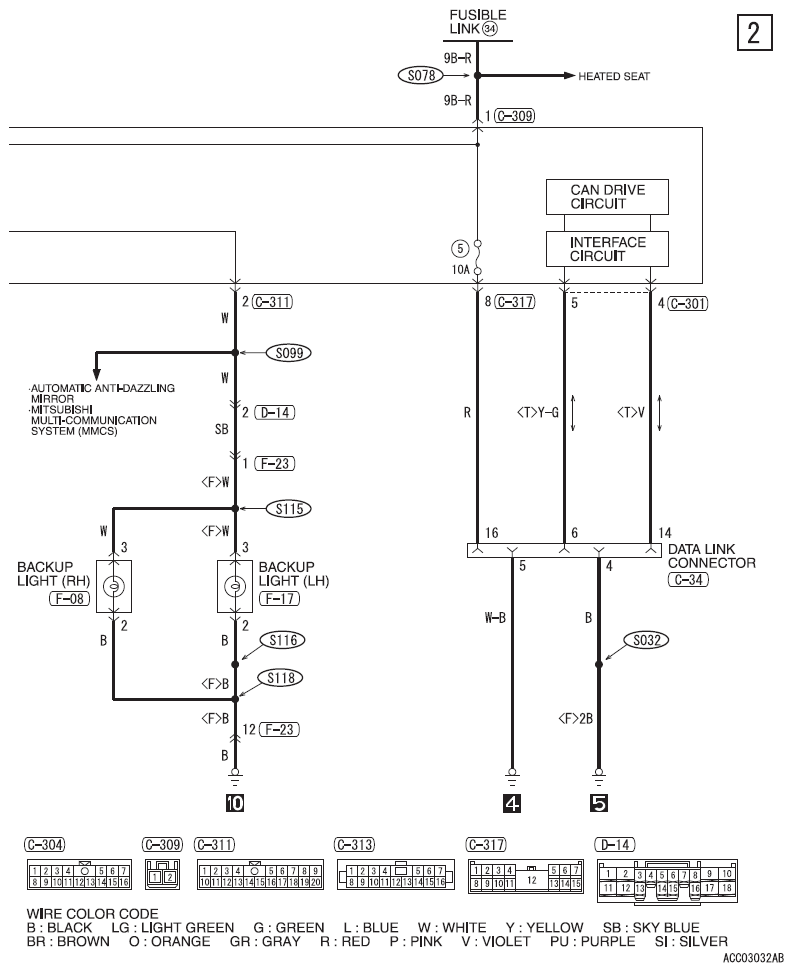

Fig 2: Backup Light (Lancer (Non-Turbo)) - Circuit Diagram (2 Of 2)
G09620263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
