Audio System < Vehicles Without Audio Amplifier >

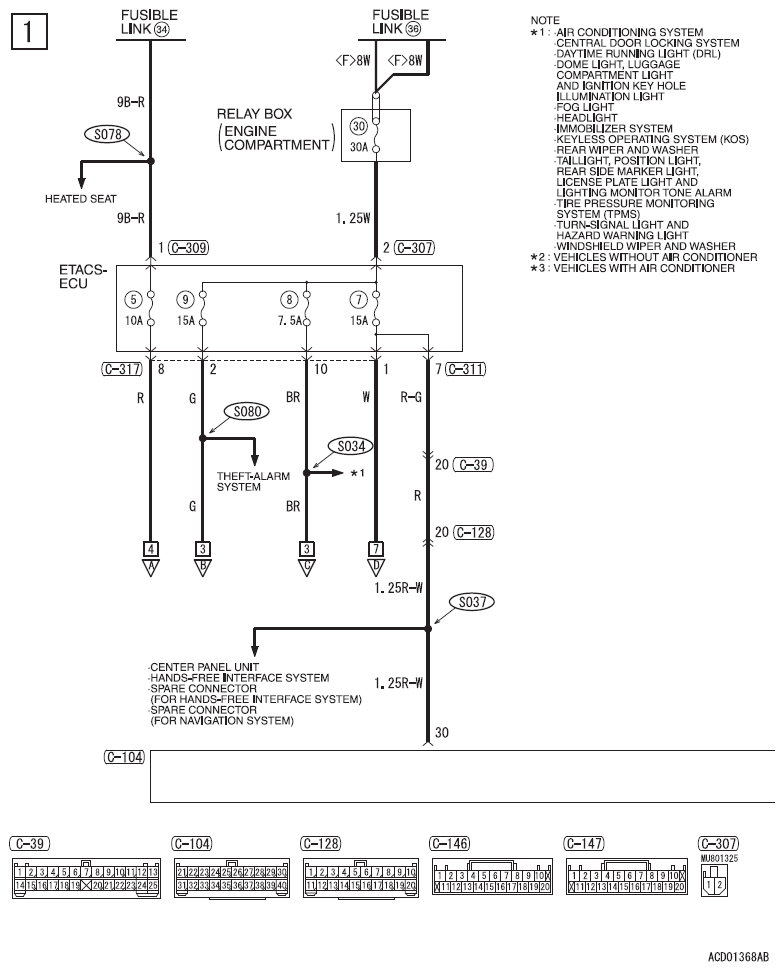

Fig 1: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (1 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

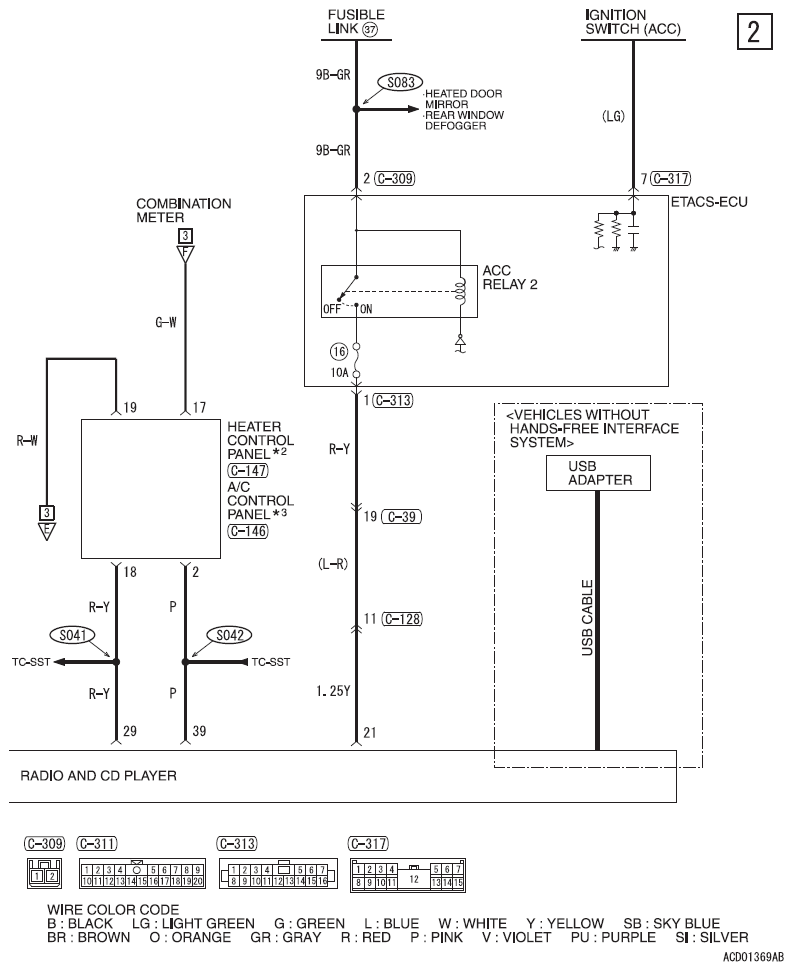

Fig 2: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (2 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

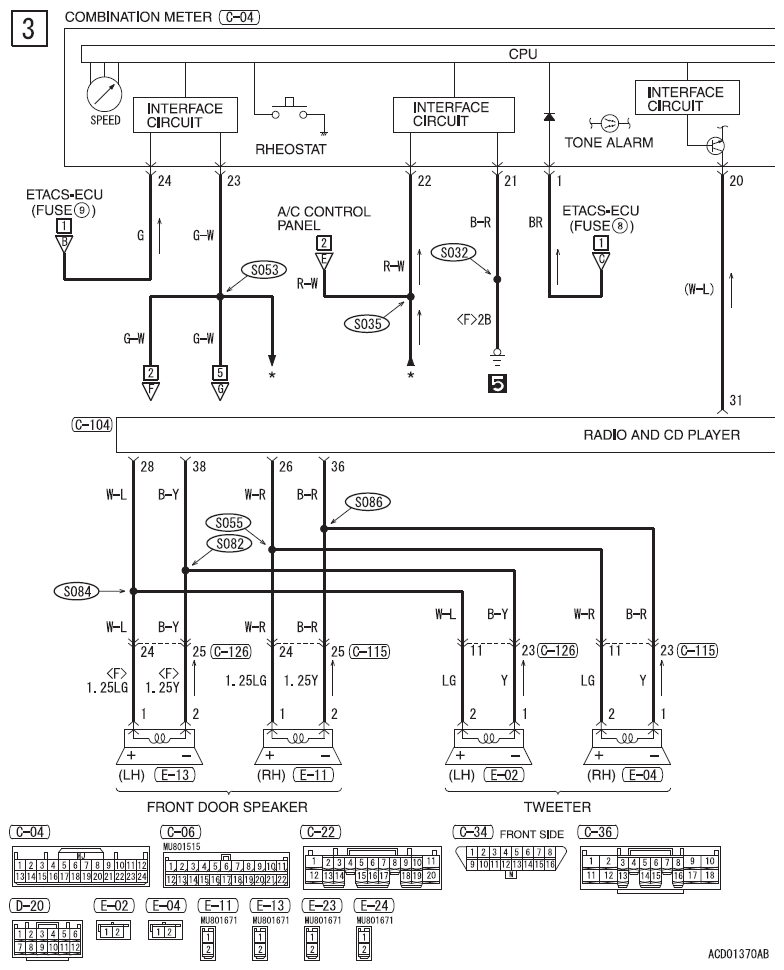

Fig 3: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (3 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

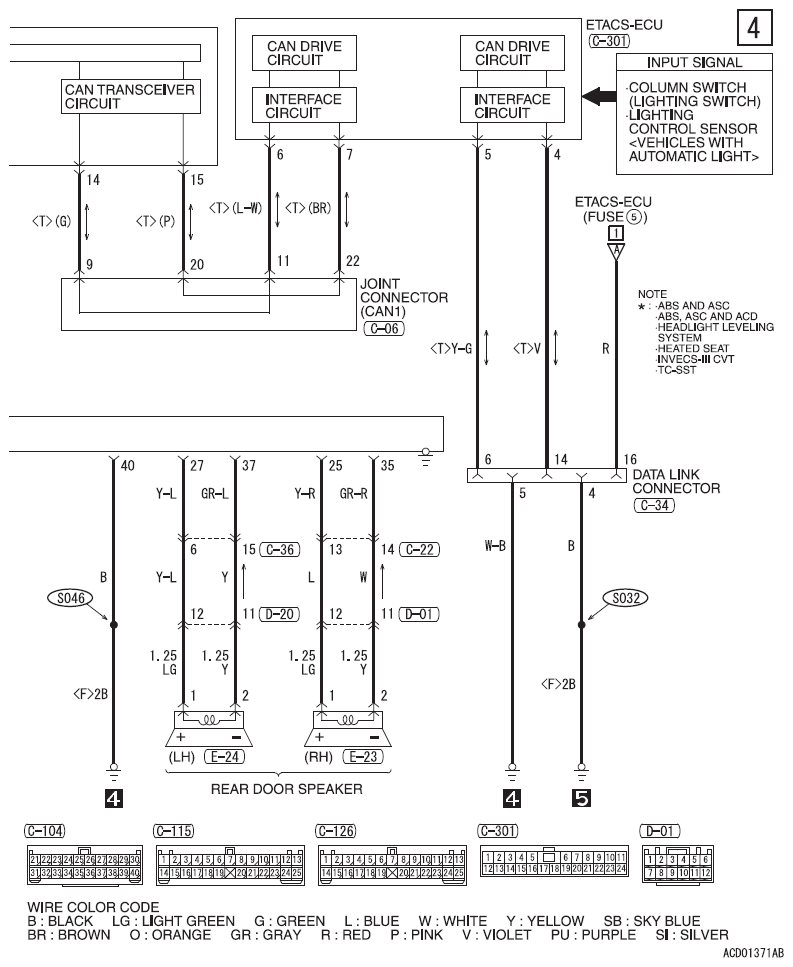

Fig 4: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (4 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

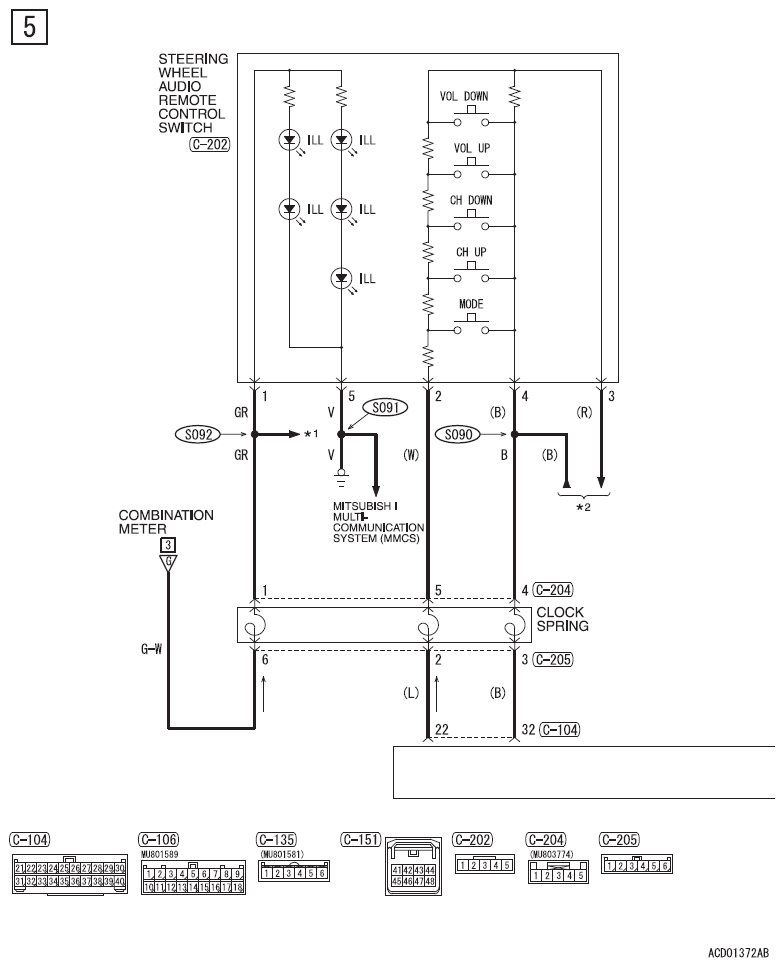

Fig 5: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (5 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

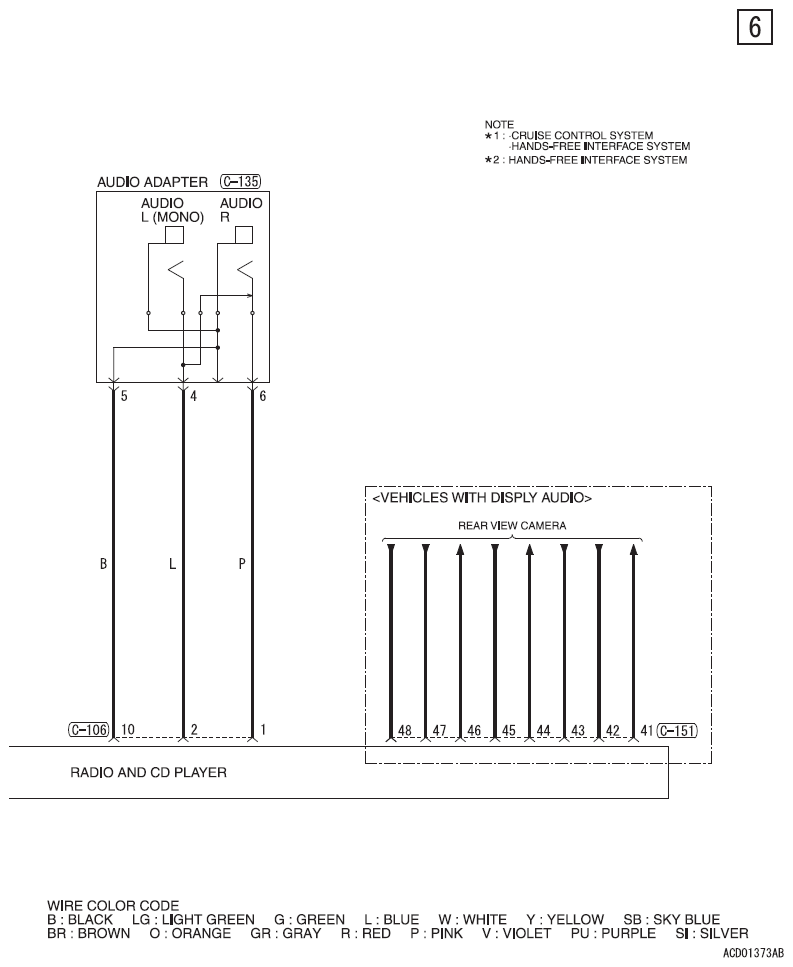

Fig 6: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (6 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

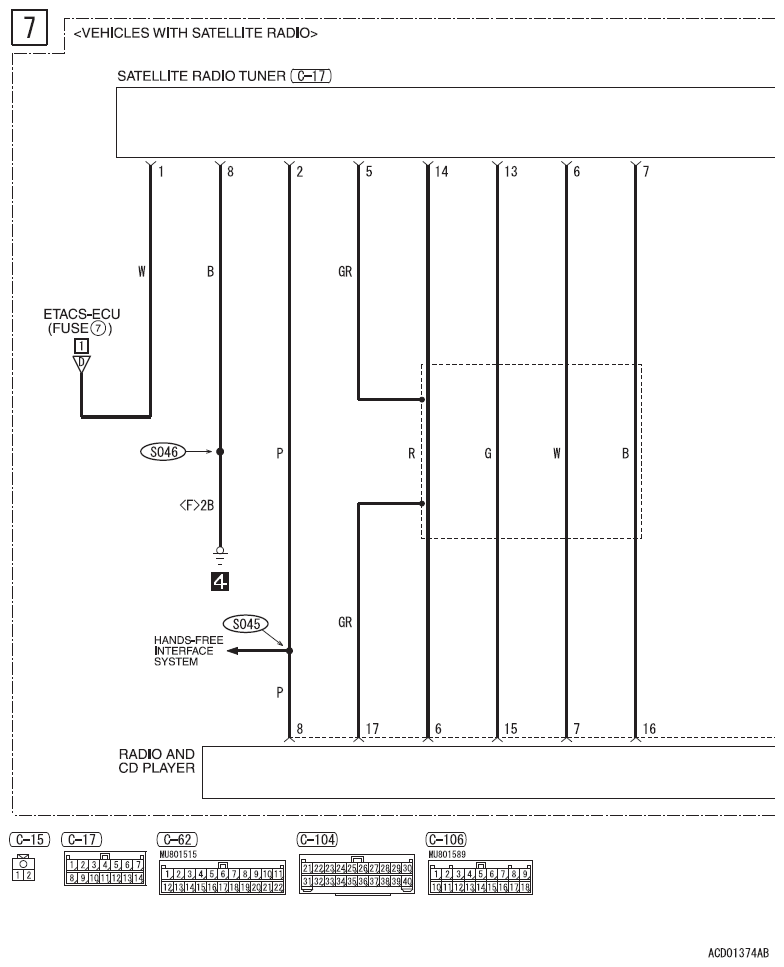

Fig 7: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (7 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

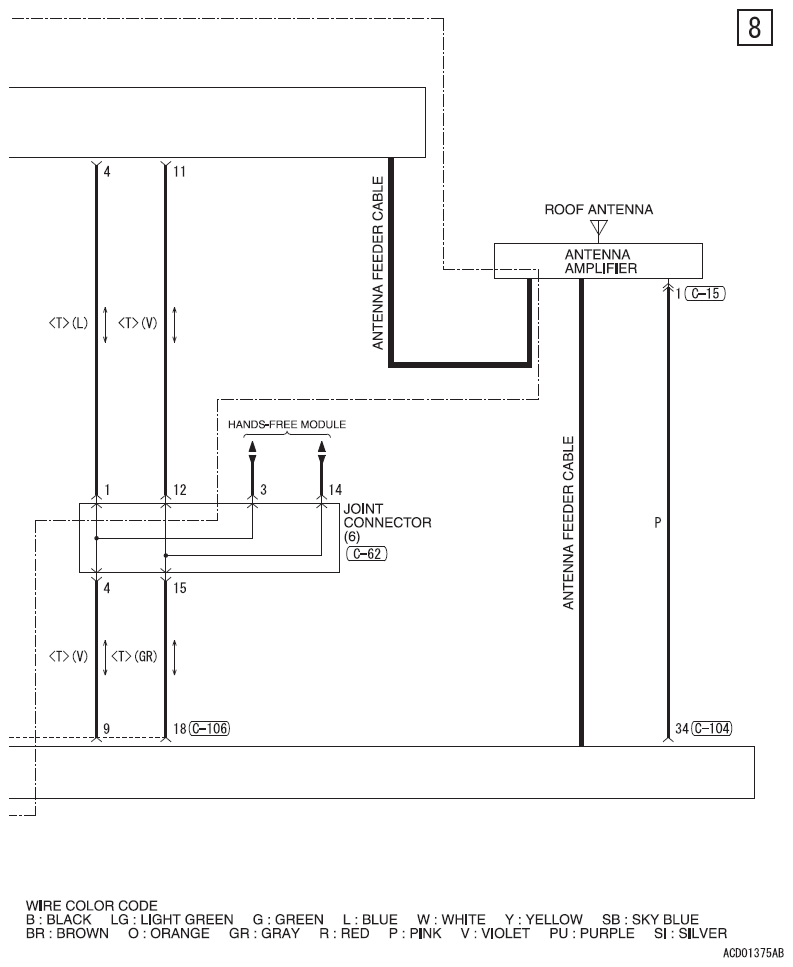

Fig 8: Audio System (Vehicles Without Audio Amplifier) - Circuit Diagram (8 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
