Audio System < Vehicles With Audio Amplifier >

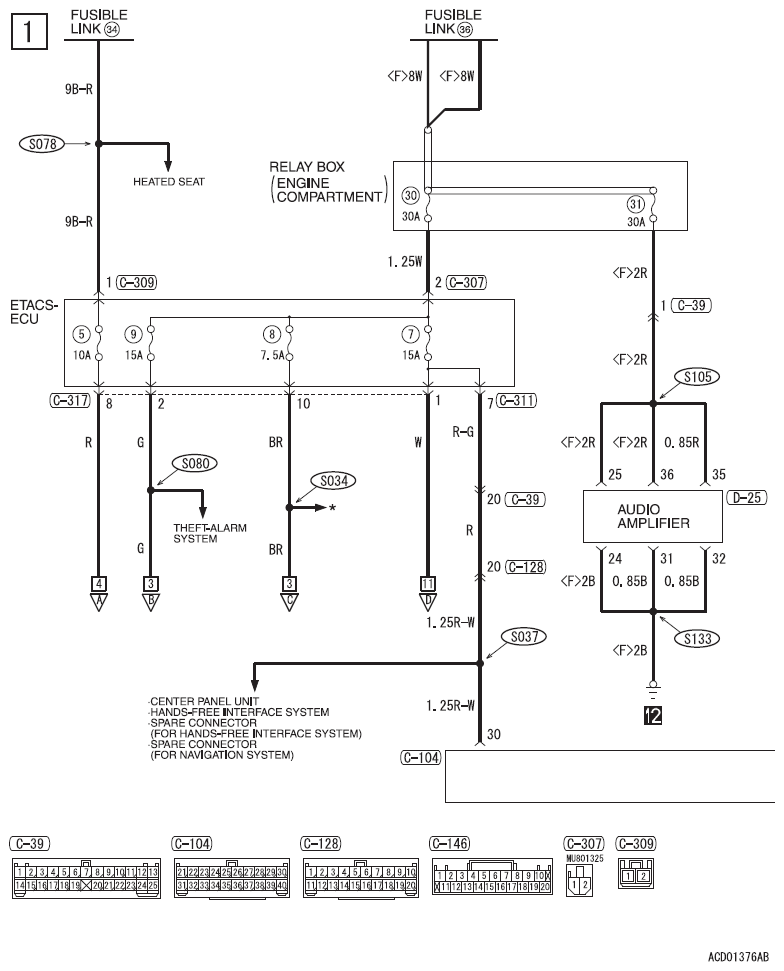

Fig 1: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (1 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

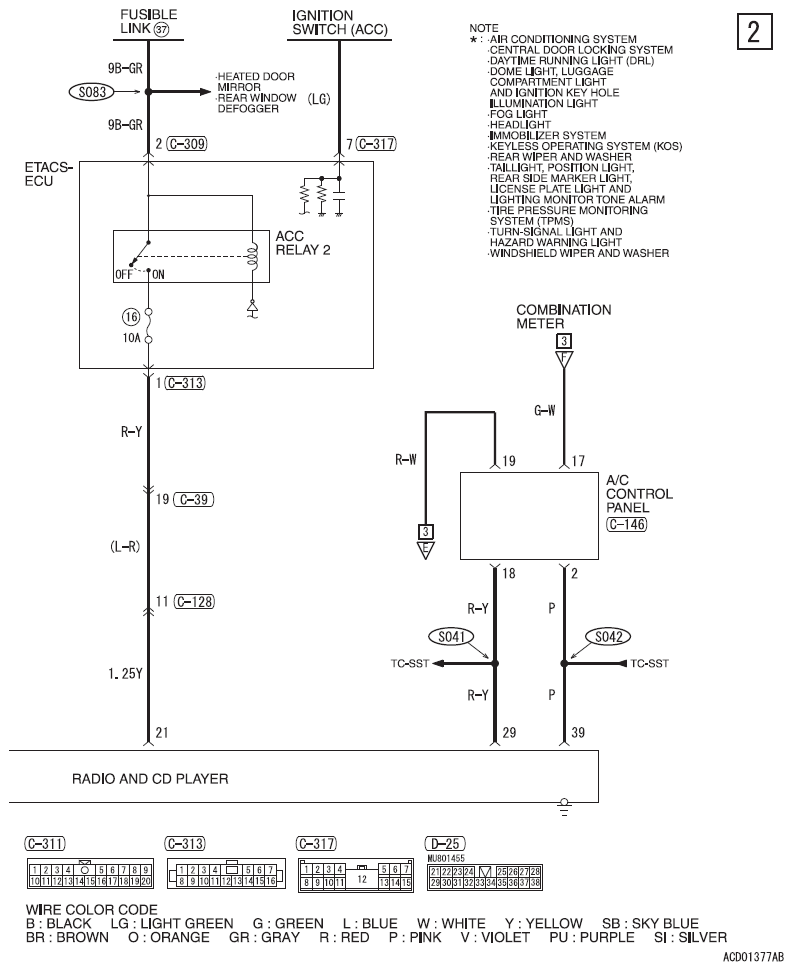

Fig 2: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (2 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

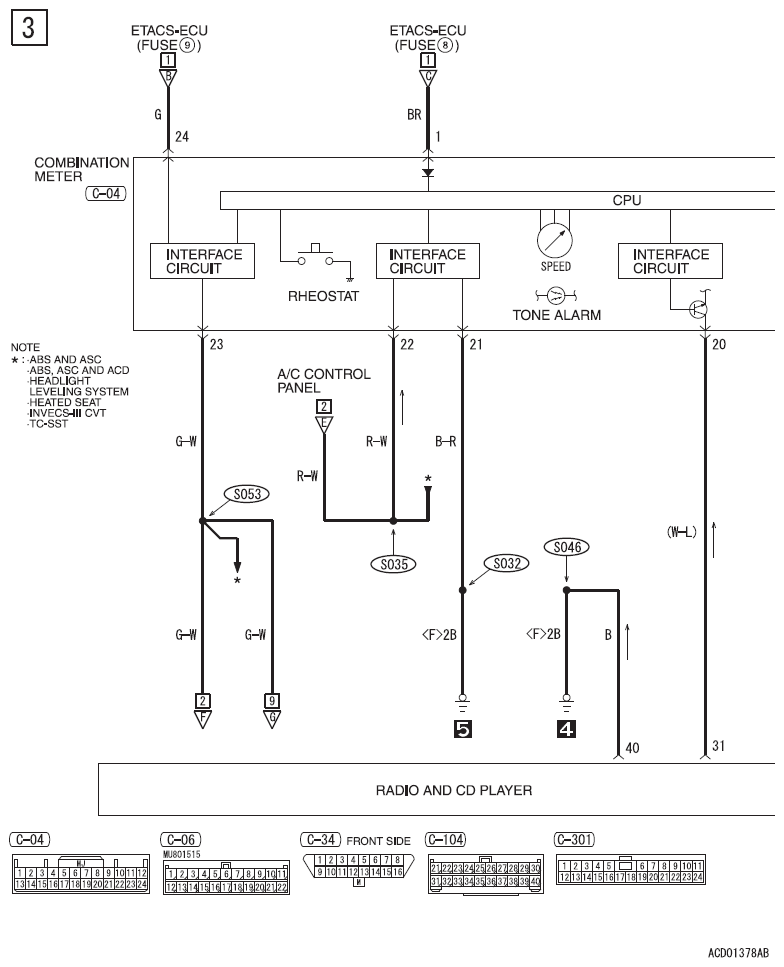

Fig 3: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (3 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

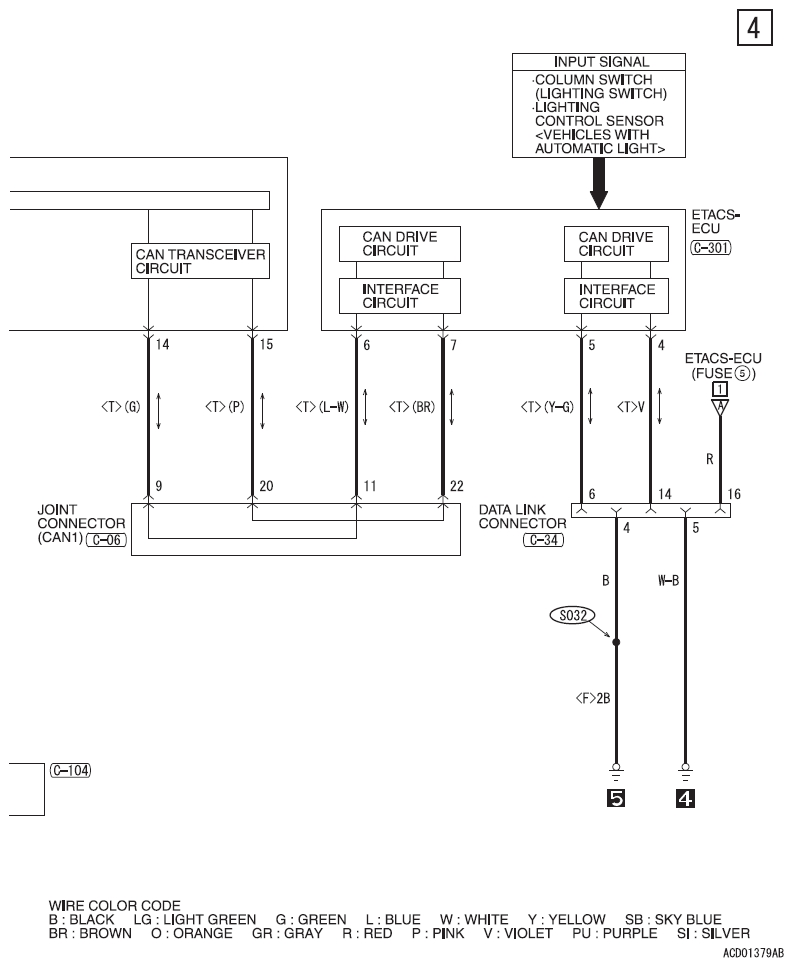

Fig 4: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (4 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

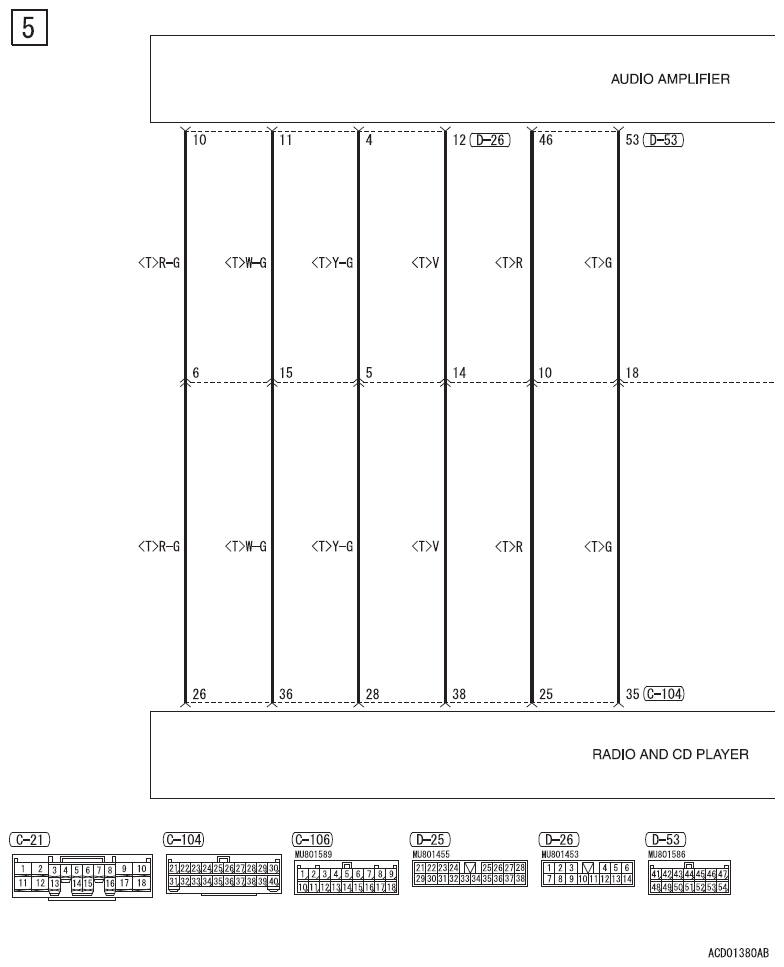

Fig 5: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (5 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

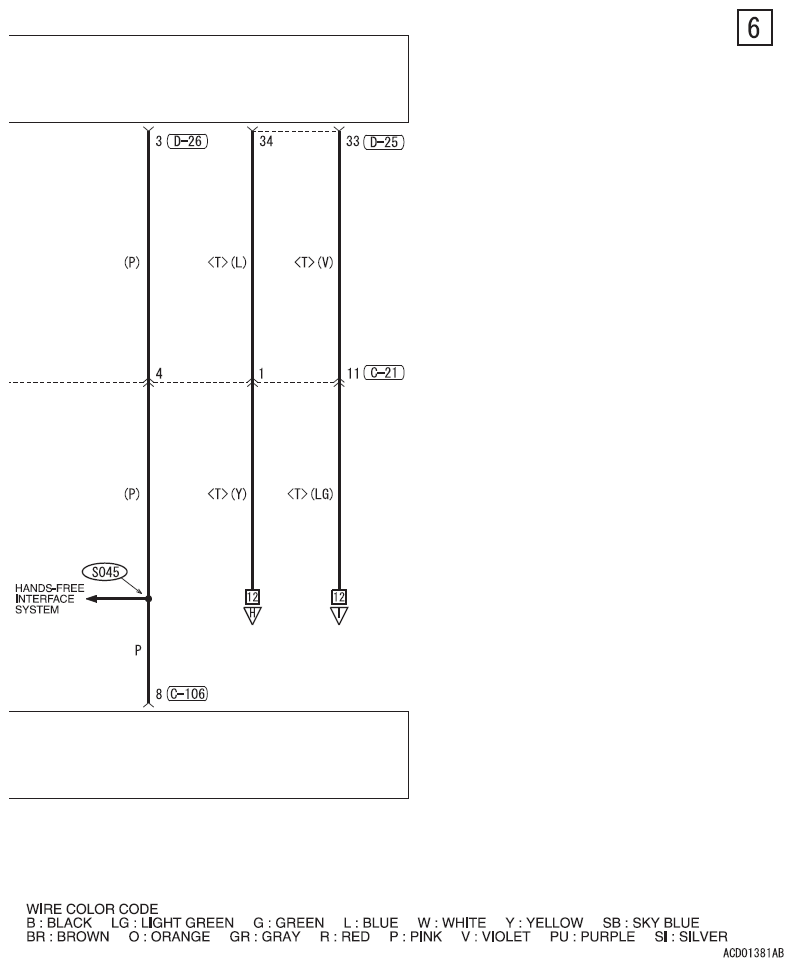

Fig 6: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (6 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

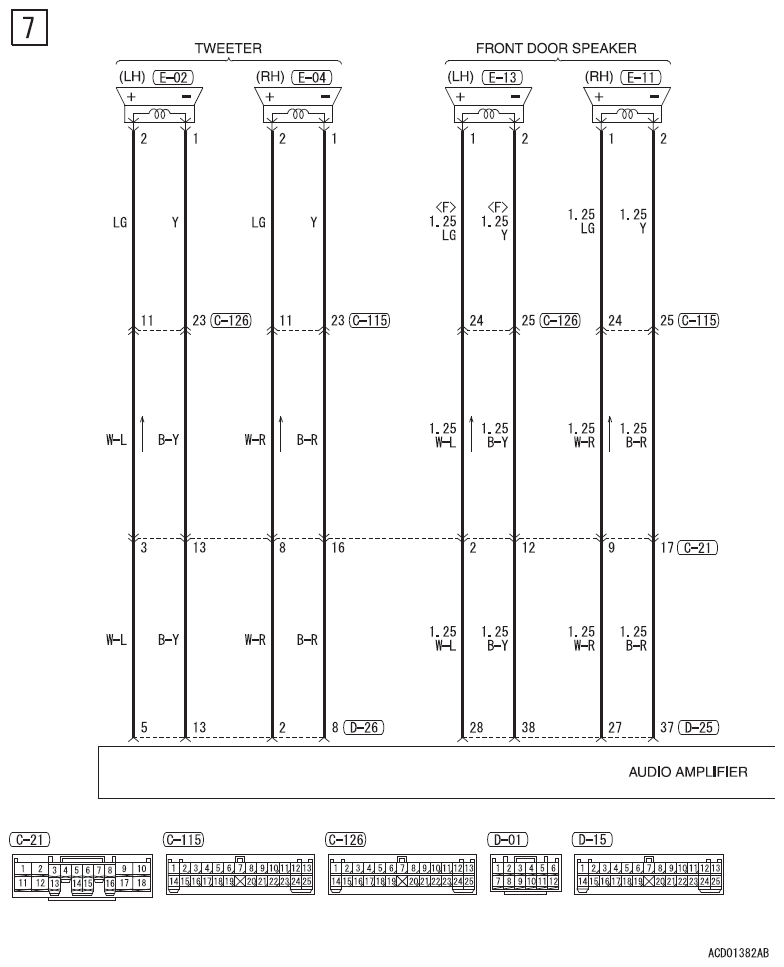

Fig 7: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (7 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

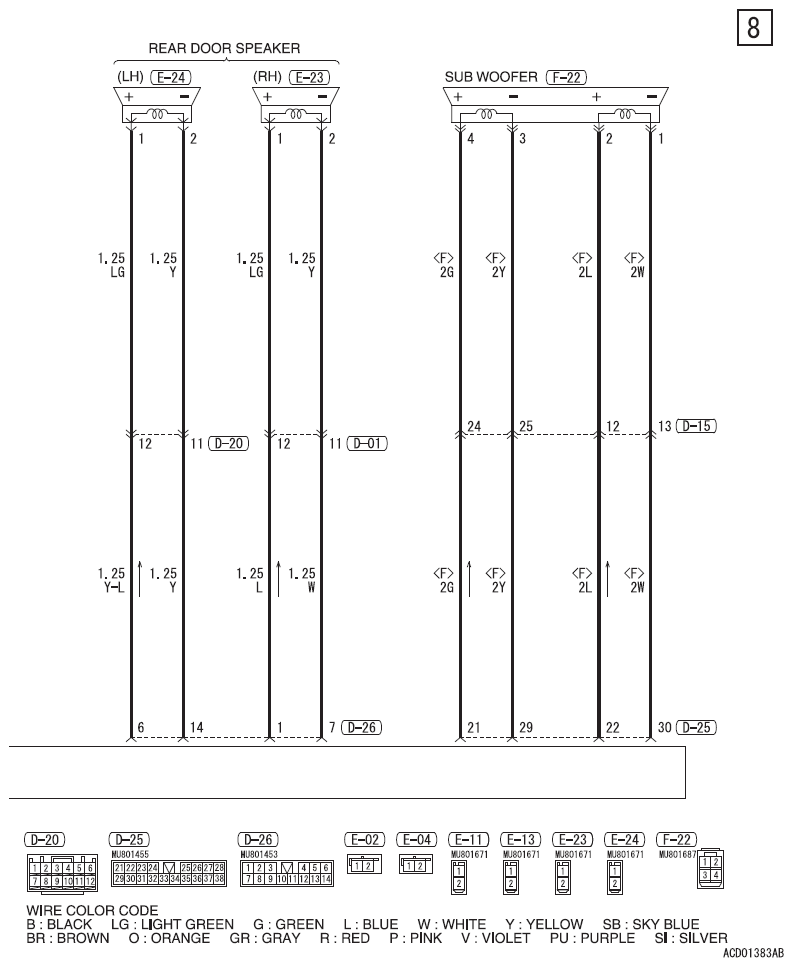

Fig 8: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (8 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

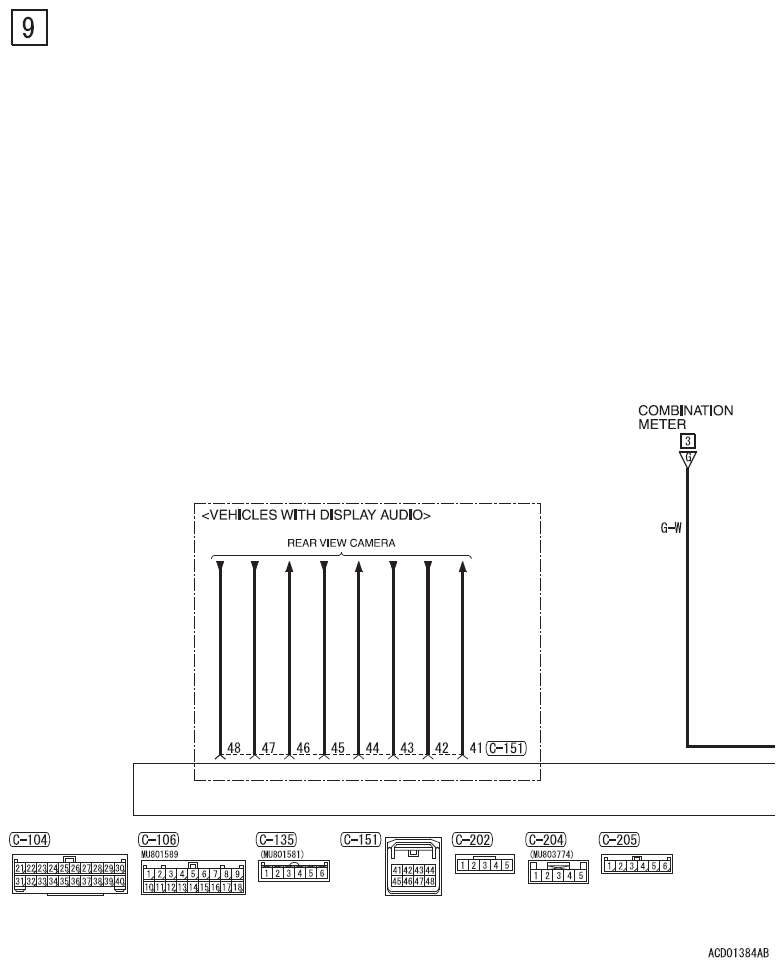

Fig 9: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (9 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

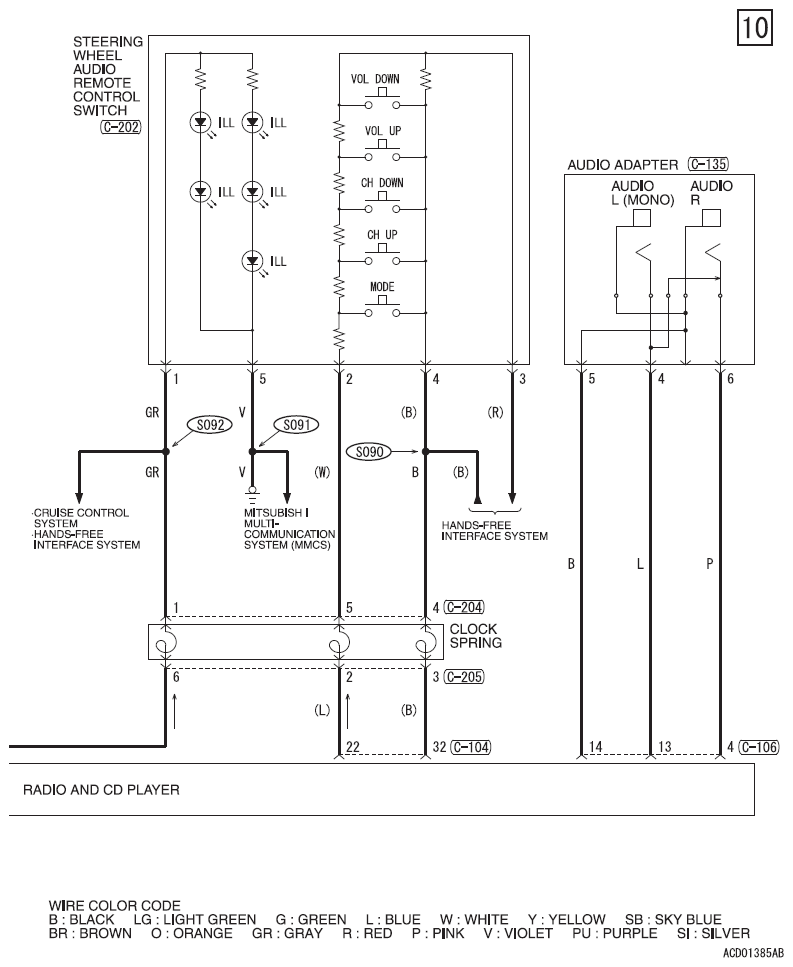

Fig 10: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (10 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

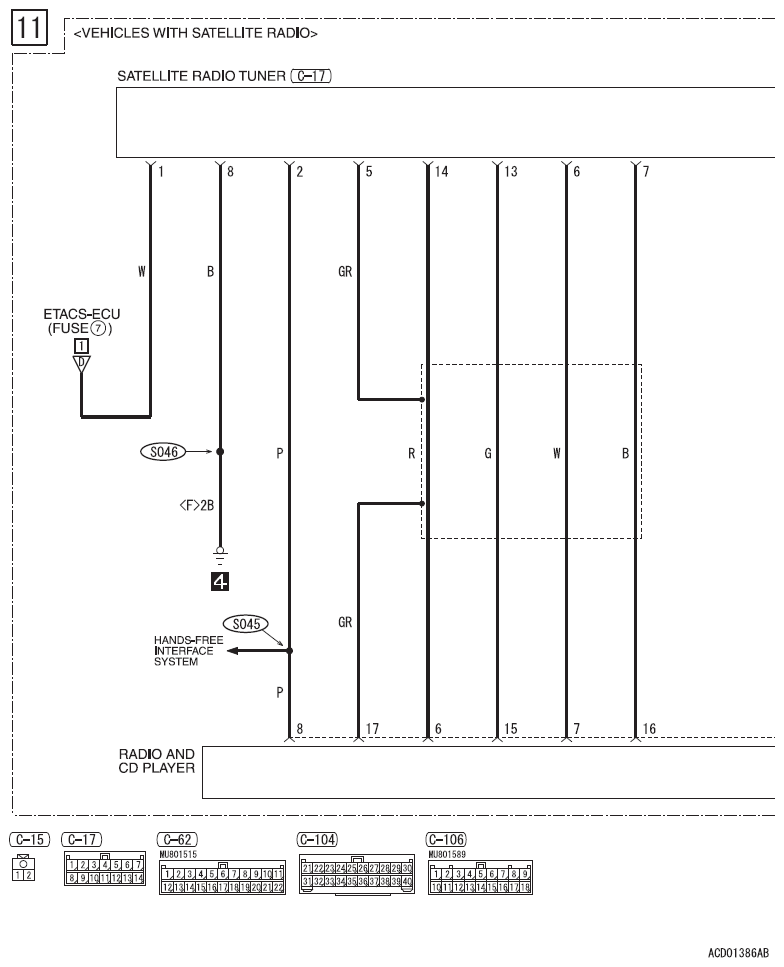

Fig 11: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (11 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

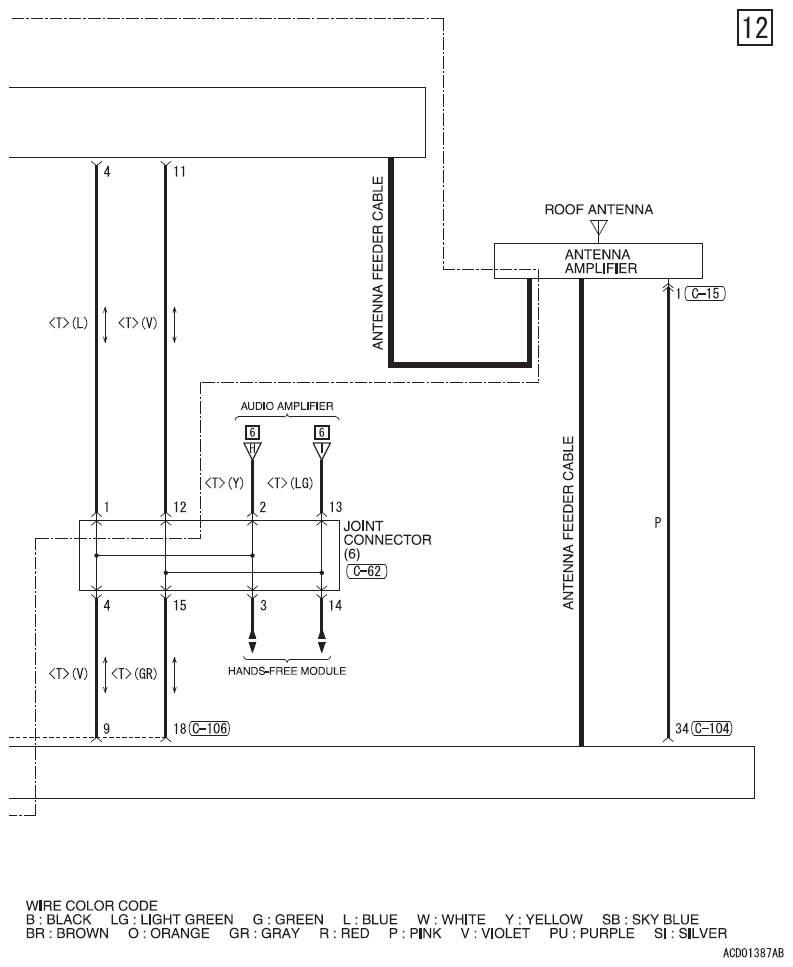

Fig 12: Audio System (Vehicles With Audio Amplifier) - Circuit Diagram (12 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
