Anti-Lock Braking System (Abs) < Vehicles Without ASC >

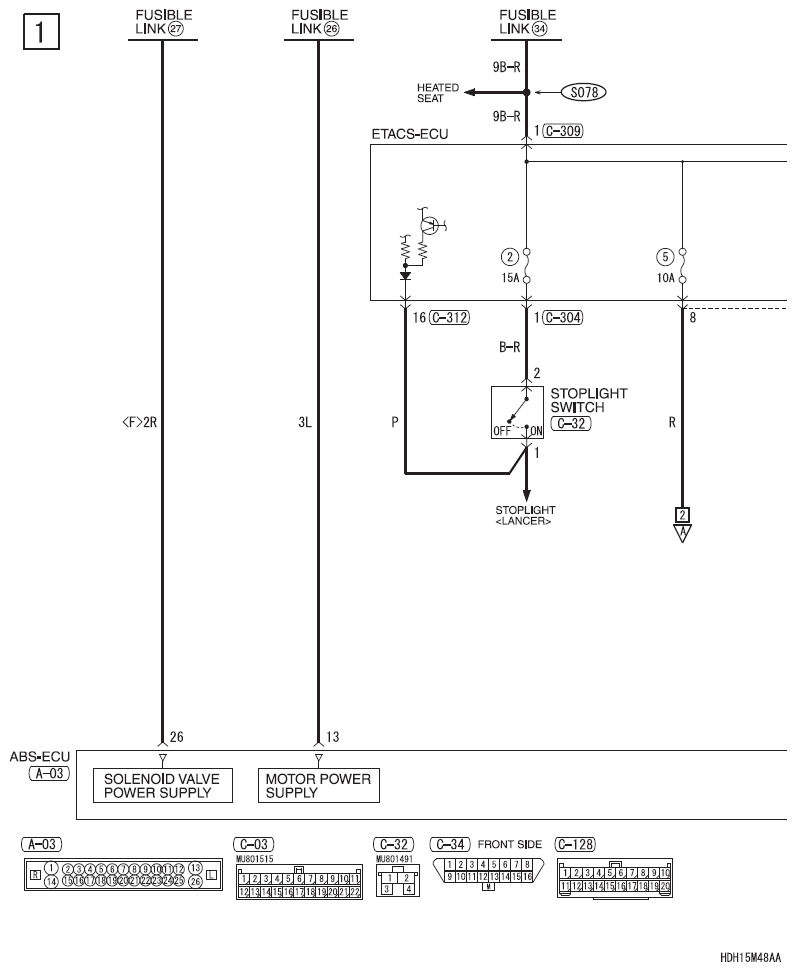

Fig 1: Anti-Lock Braking System (Abs) (Vehicles Without Asc) - Circuit Diagram (1 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

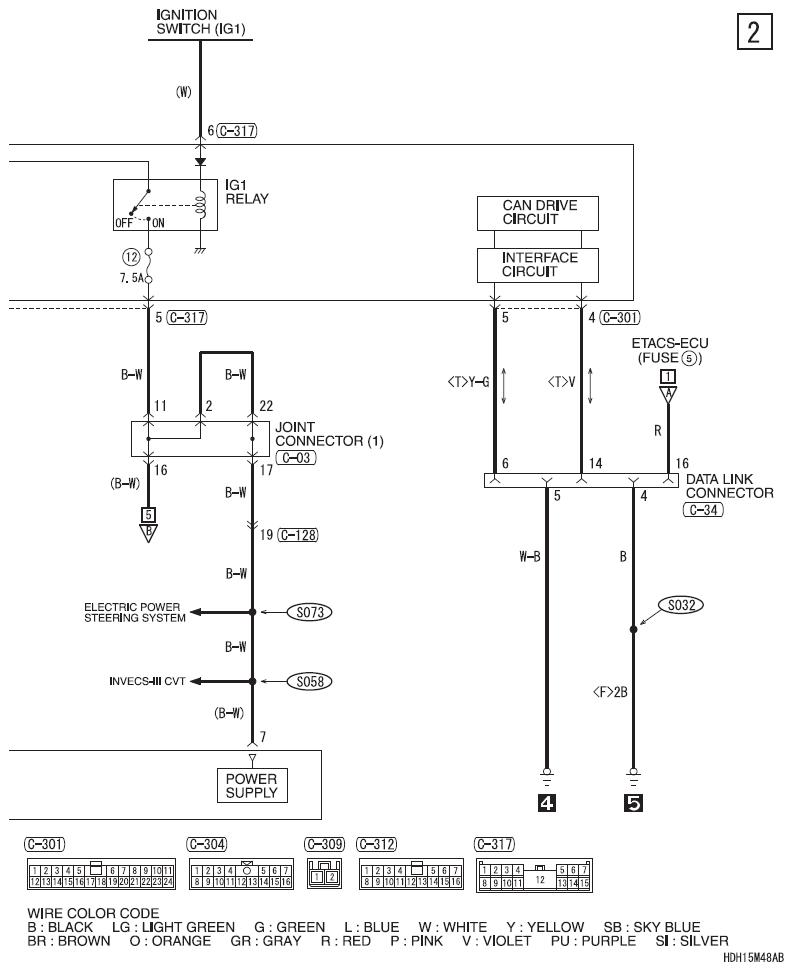

Fig 2: Anti-Lock Braking System (Abs) (Vehicles Without Asc) - Circuit Diagram (2 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

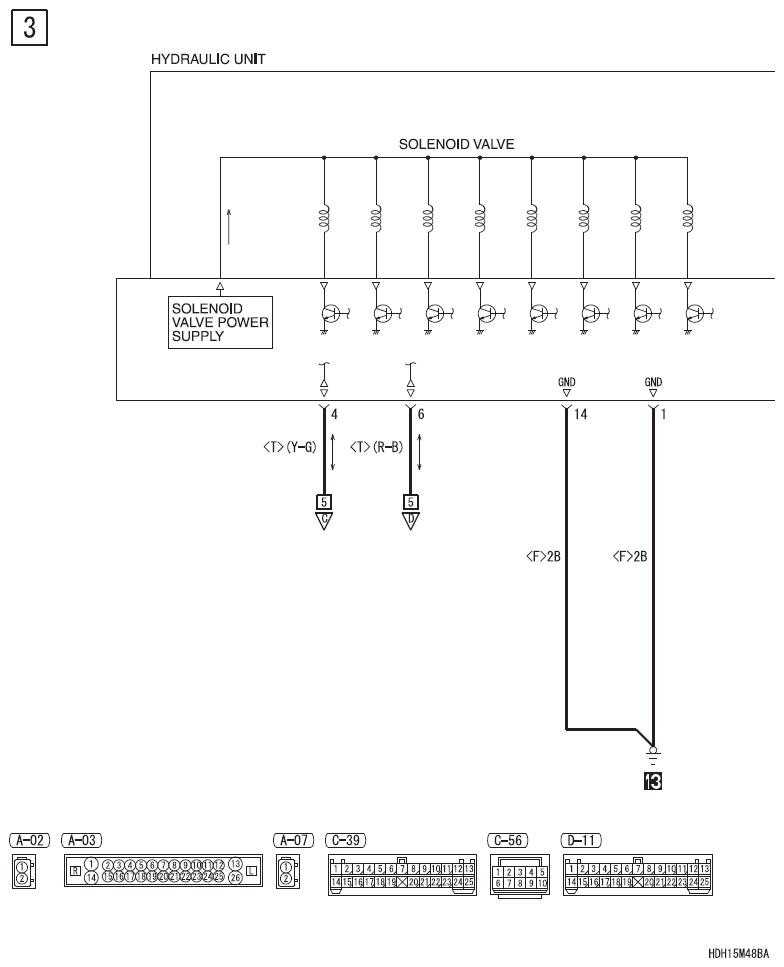

Fig 3: Anti-Lock Braking System (Abs) (Vehicles Without Asc) - Circuit Diagram (3 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

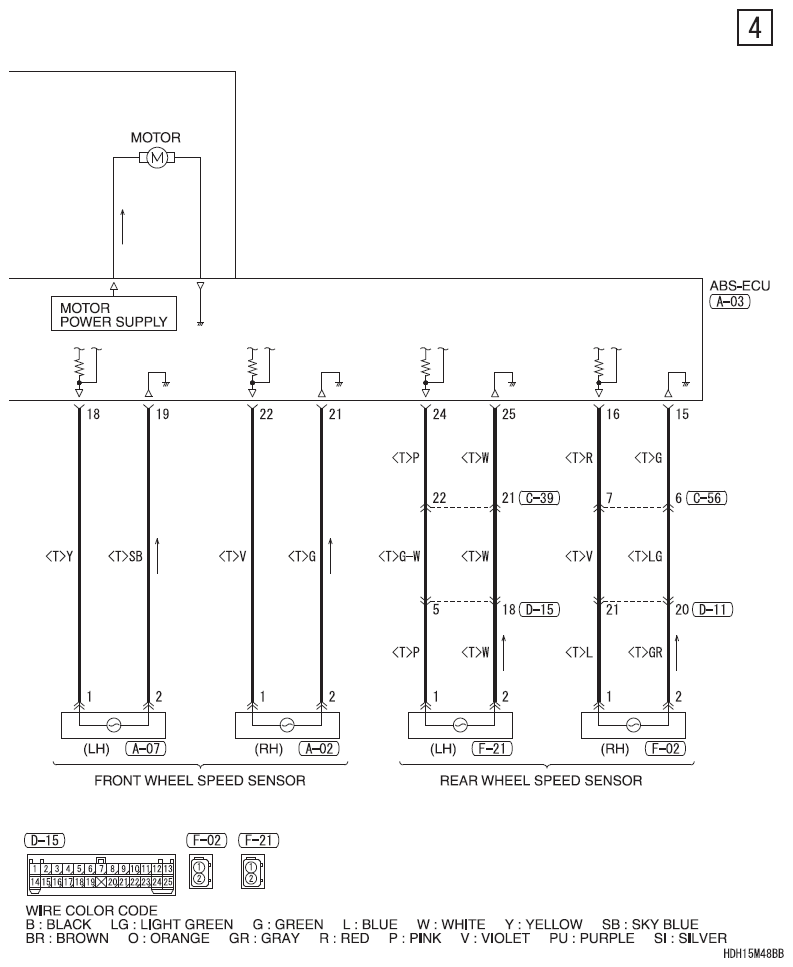

Fig 4: Anti-Lock Braking System (Abs) (Vehicles Without Asc) - Circuit Diagram (4 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

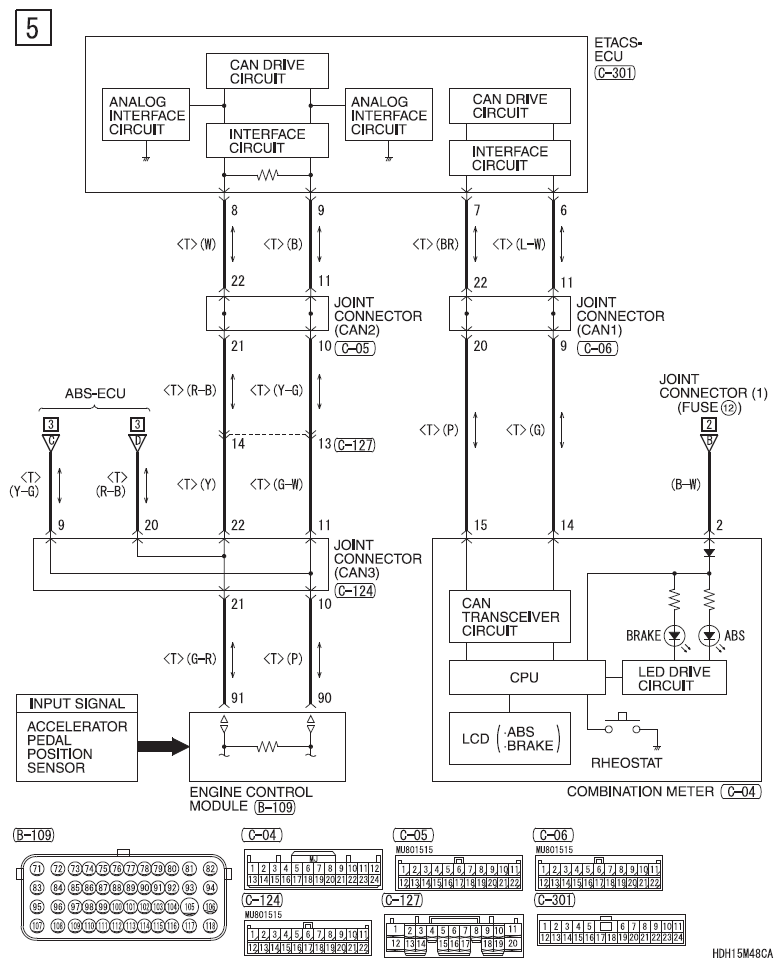

Fig 5: Anti-Lock Braking System (Abs) (Vehicles Without Asc) - Circuit Diagram (5 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
