Wiring Harness Routing - Lancer & Lancer SPORTBACK
>>
Floor And Roof < Lancer SPORTBACK >
Floor And Roof < Lancer SPORTBACK >

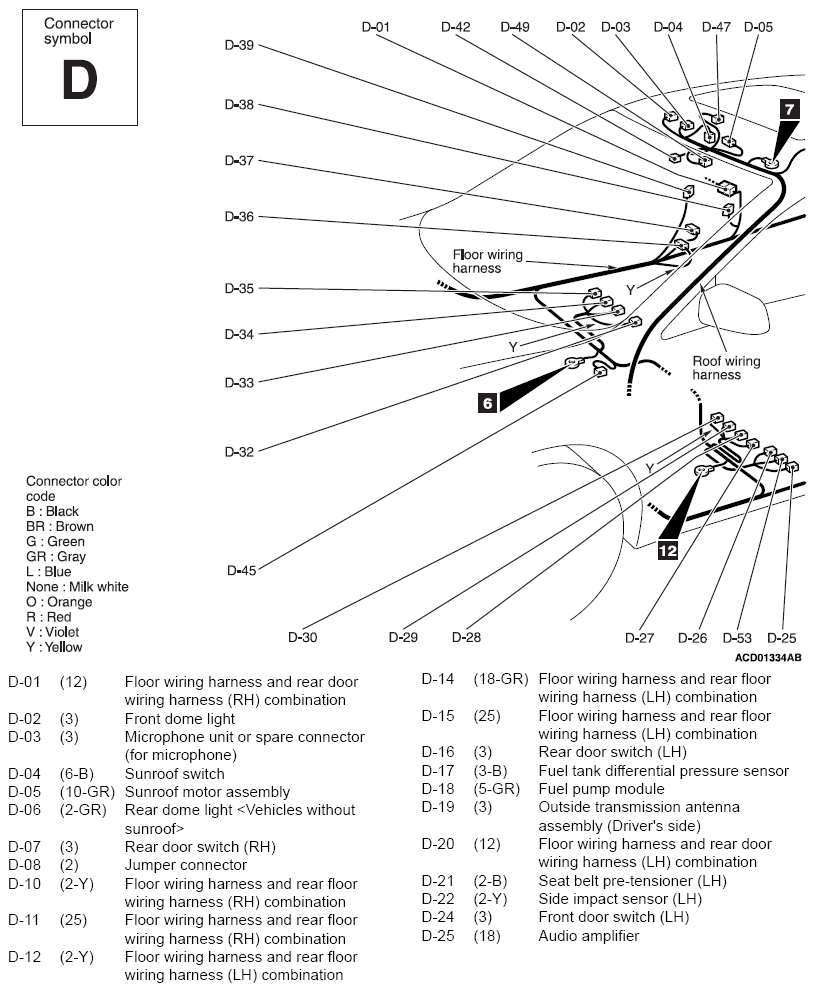

Fig 1: Floor And Roof Connectors Location (Lancer Sportback; 1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

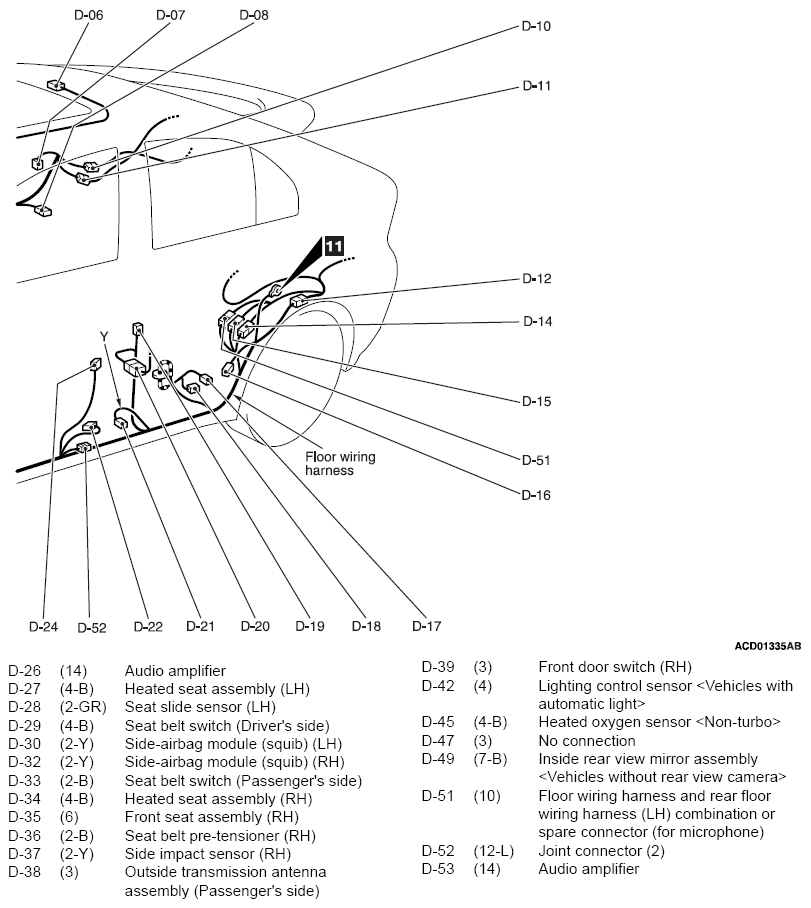

Fig 2: Floor And Roof Connectors Location (Lancer Sportback; 2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
